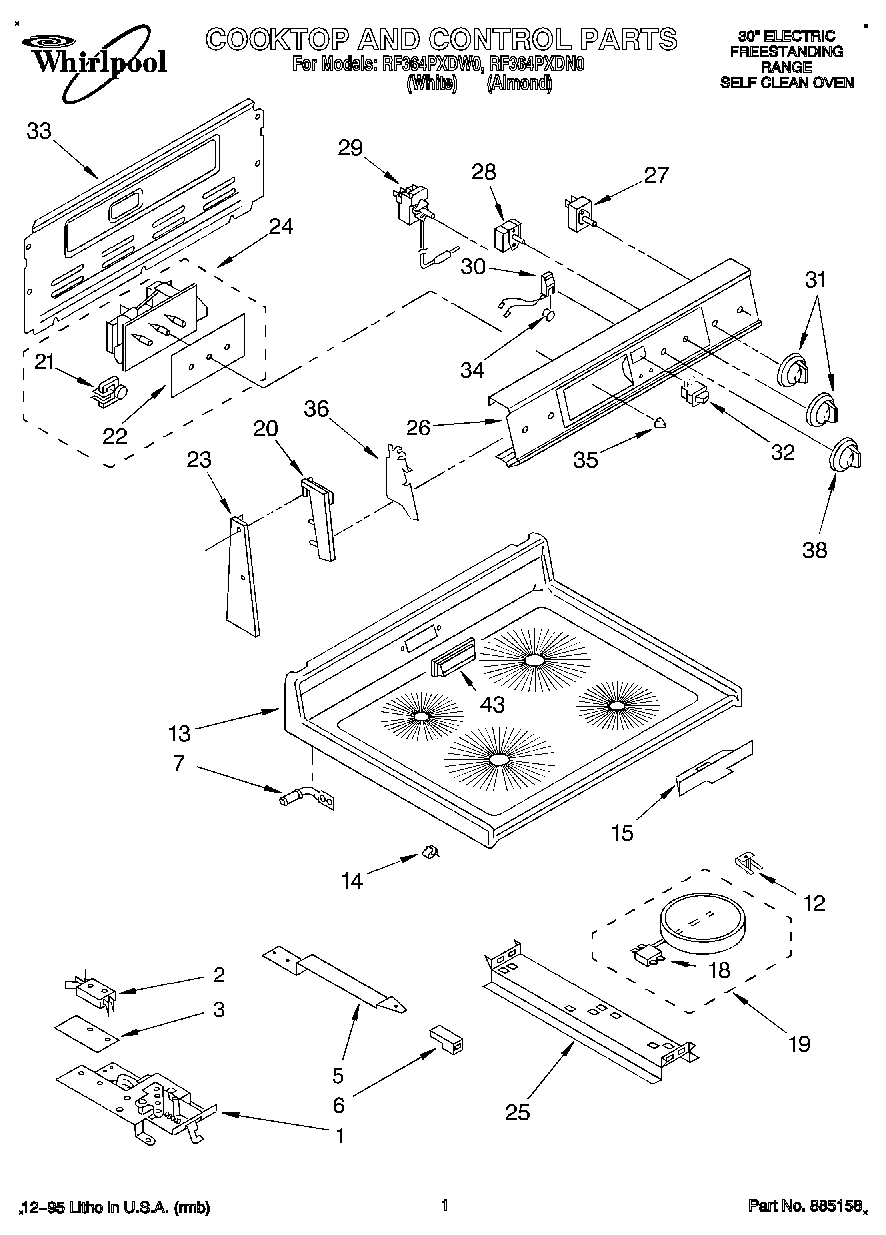

RF364PXDW0 01 – COOKTOP AND CONTROL

Products

Position	Product
1	Latch Mechanism
2	Screw (2)
2	Safety Switch
3	Insulator, Switch
5	Screw
5	Handle, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
7	Pin, Cooktop (2)
12	Spring, Locator
13	Cooktop Asm. (Almond Mdl.)
13	WP308685 Whirlpool Microwave Screw
13	Cooktop (Designer White Mdl)
14	Clip
15	WP486754 Whirlpool Compactor Screw
15	Shield, Probe
18	Limiter, Temp. (2100W, LF-RR)
18	Limiter, Temp. (1700W, RF-LR)
19	Element, Surface (Includes No.1) (1700W, RF-LR)
19	Element, Surface (Includes No.1) (2100W, LF-RR)
20	End Cap, R.H. (Black)
20	End Cap L.H. (Black)
21	Screw
21	Motor, Timer
22	Glass, Timer
23	End Trim L.H.
23	End Trim R.H.
23	Panel, Control (Screw, 8-18 x 5/8 (4))
24	Timer, Control
25	Bracket, (2) Element Support
25	Back Splash (Screw (4) 10AB x 1/2“)
26	Control Panel
27	WP3148952 Whirlpool Oven Infinite Switch
27	SWITCH-INF
28	Switch, Selector (5 Position)
28	Screw, 8-32 x 3/16 (2)
29	Thermostat, 0ven
29	WP313808 Whirlpool Screw
30	Light, Indicator (250V)
30	Indicator Light (1)
30	Indicator Light (Surface Unit On)
31	WP3196231 Whirlpool Knob
32	Switch, Rocker
33	SCREW
33	Rear Cover Contr
34	Lens, Amber
35	WP3169181 Whirlpool Knob
36	WP965173 Whirlpool Dishwasher Screw
36	Shield (2)
38	Knob, Thermostat (Black)
43	Clip, Vent Cover
43	Cover, Vent (White)
43	cover, vent (almond)
