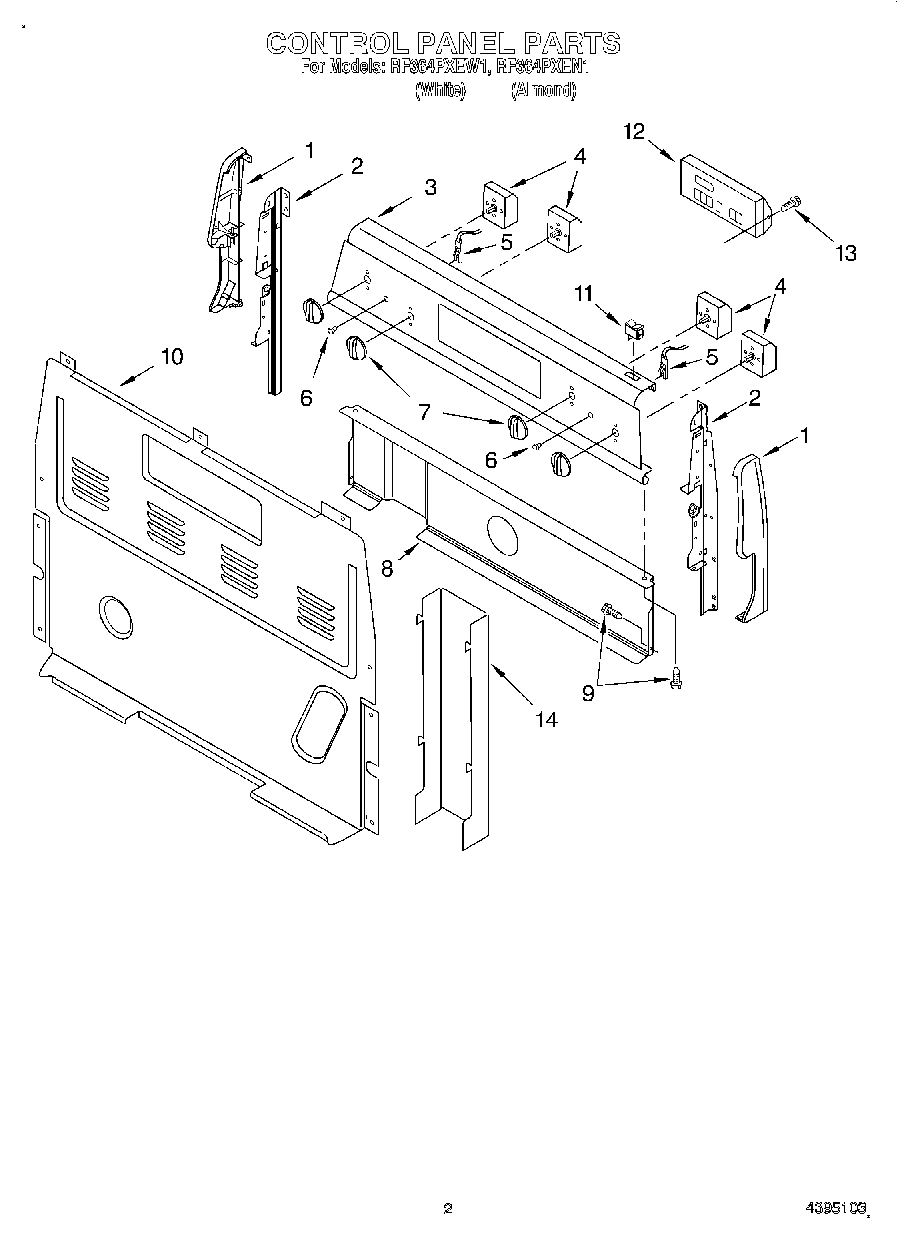

RF364PXEN1 02 – CONTROL PANEL

RF364PXEN1 02 – CONTROL PANEL

Written by

in

RF364PXEN1 02 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Black)
4SWITCH-INF
4Switch, Infinite (Screw (8))
4WP3148952 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP3196231 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11WP4314961 Whirlpool Lite Switch
12Control, Range
14WPW10326122 Whirlpool Black Cover
14SCREW
