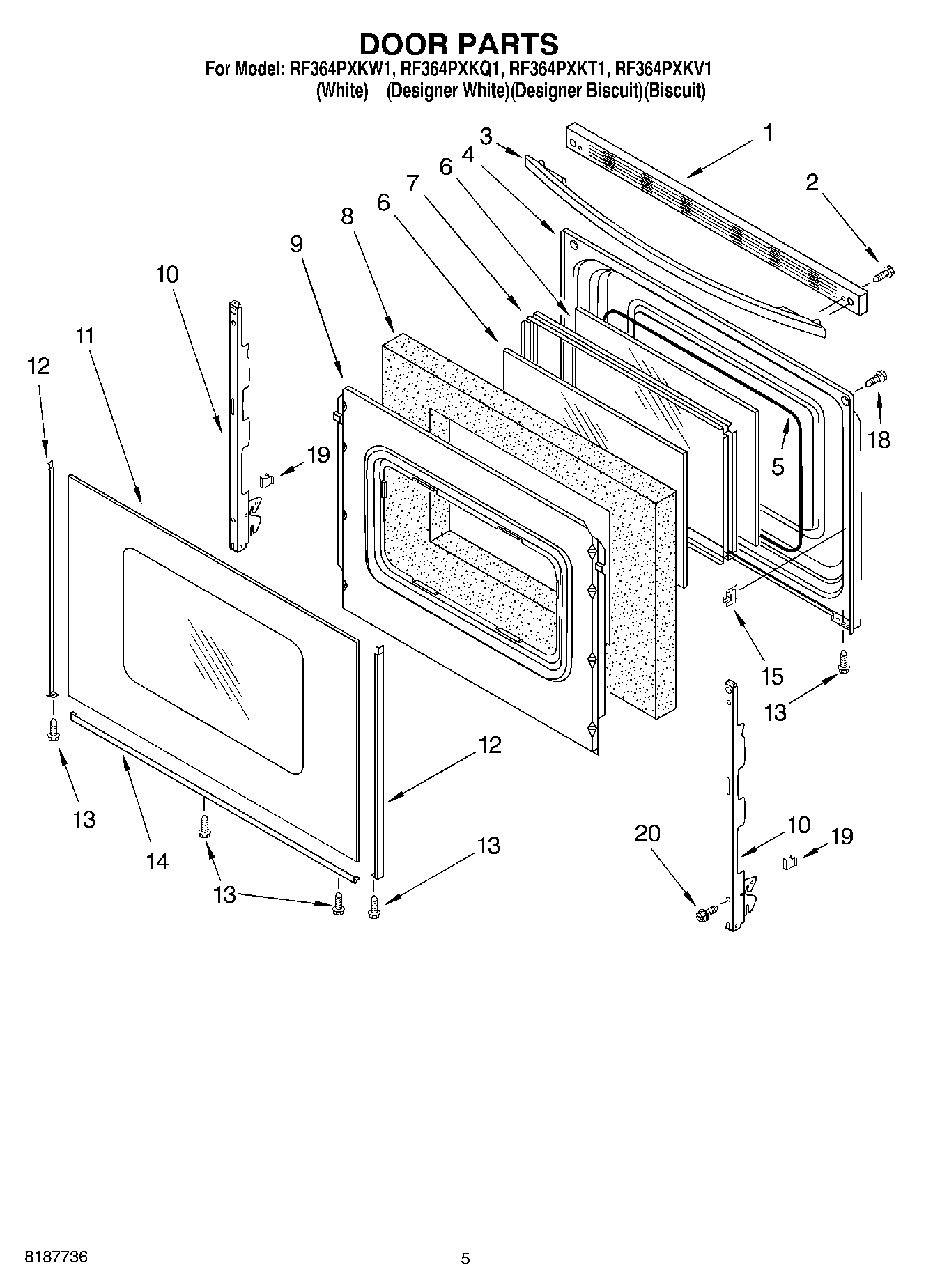

| 1 | Trim, Top (Black) |
| 1 | WPW10016370 Whirlpool Door Trim |
| 1 | Trim, Top (Biscuit) |
| 2 | WP3196164 Whirlpool Screw |
| 3 | WPW10202217 Whirlpool Door Handle |
| 3 | Handle, Door (Biscuit) |
| 3 | WPW10202216 Whirlpool Door Handle |
| 4 | Liner, Door |
| 5 | 8522415 Whirlpool Oven Wind Gasket |
| 6 | WP9758164 Whirlpool Door Glass |
| 7 | Frame, Glass |
| 8 | WPW10278991 Whirlpool Insulation |
| 9 | 9761499 Whirlpool Oven Retainer |
| 10 | WP8053807 Whirlpool Oven Door Hinge |
| 11 | WP9762476 Whirlpool Door Glass |
| 11 | WP9762477 Whirlpool Glass Door |
| 11 | Glass, Door (Biscuit) |
| 12 | W10761018 Whirlpool Dishwasher Left Door Trim |
| 12 | W10761014 Whirlpool Right Door Trim |
| 12 | WP8523166 Whirlpool Door Trim |
| 12 | WP8523167 Whirlpool Door Trim Assembly |
| 12 | WP8523172 Whirlpool Left Door Trim |
| 12 | WP8523173 Whirlpool Door Trim |
| 13 | W10491985 Whirlpool Screw |
| 14 | WP8523177 Whirlpool Door Trim Assembly |
| 14 | WP8523178 Whirlpool Door Trim |
| 14 | WP8523175 Whirlpool Door Trim Assembly |
| 15 | Clip, Glass (4) |
| 18 | WP179051 Whirlpool Screw |
| 19 | WP3196925 Whirlpool Clip Assembly |
| 20 | WP3196175 Whirlpool Screw |
