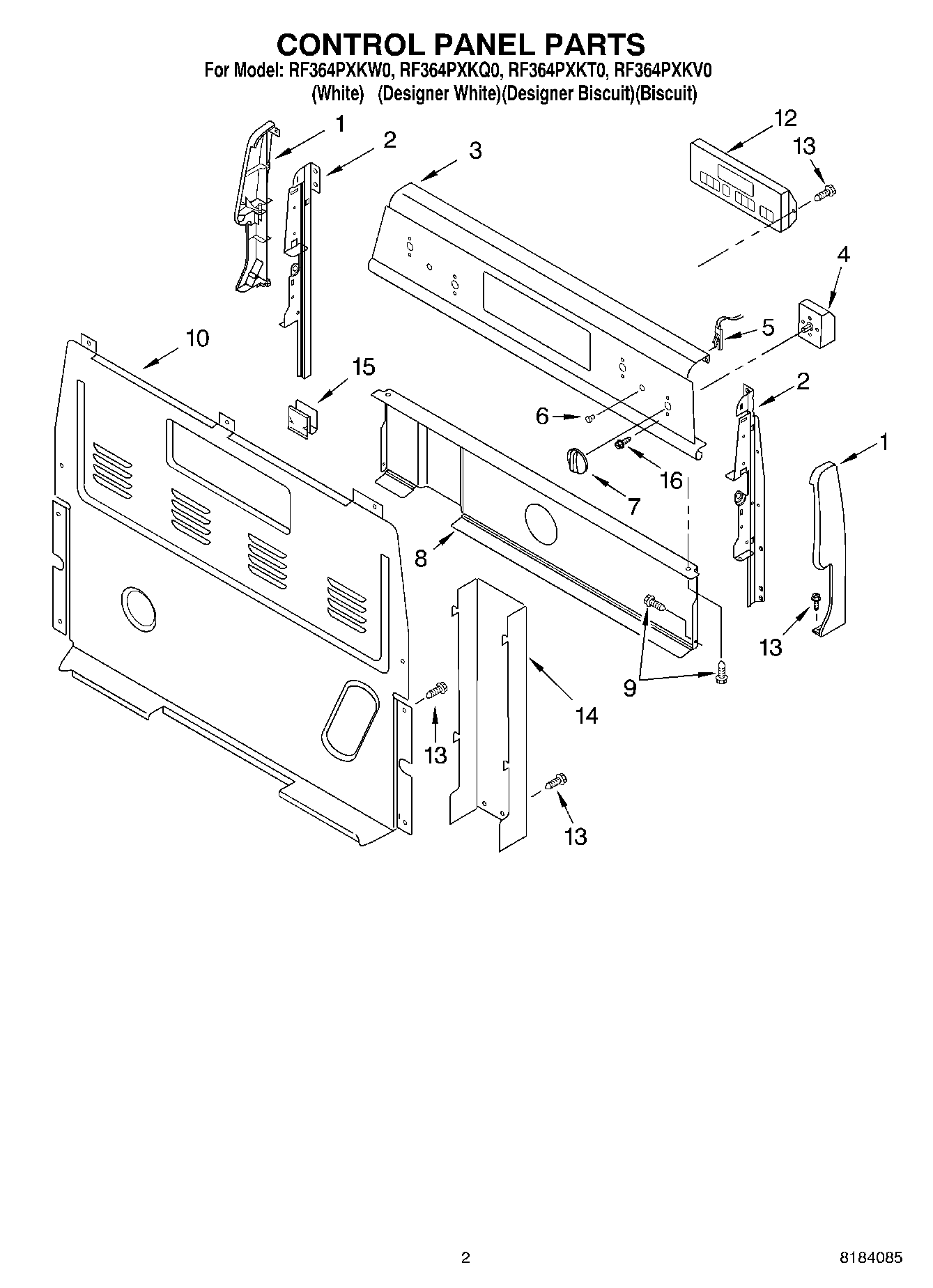

RF364PXKW0 02 – CONTROL PANEL

RF364PXKW0 02 – CONTROL PANEL

Written by

in

RF364PXKW0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap (Black Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (White)
3Panel, Backguard (Biscuit)
3Panel, Backguard (Black)
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7Knob, Control (4) (Biscuit)
7WP8522566 Whirlpool Knob
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12WP6610456-includeCORE Whirlpool WP6610456 Washer Electronic Control Board + Core
12WP6610457 Whirlpool Electronic Control Board + Core
12Control, Range (Biscuit)
13SCREW
14WPW10326122 Whirlpool Black Cover
15WP8273564 Whirlpool Clip
16WP3400882 Whirlpool Screw
