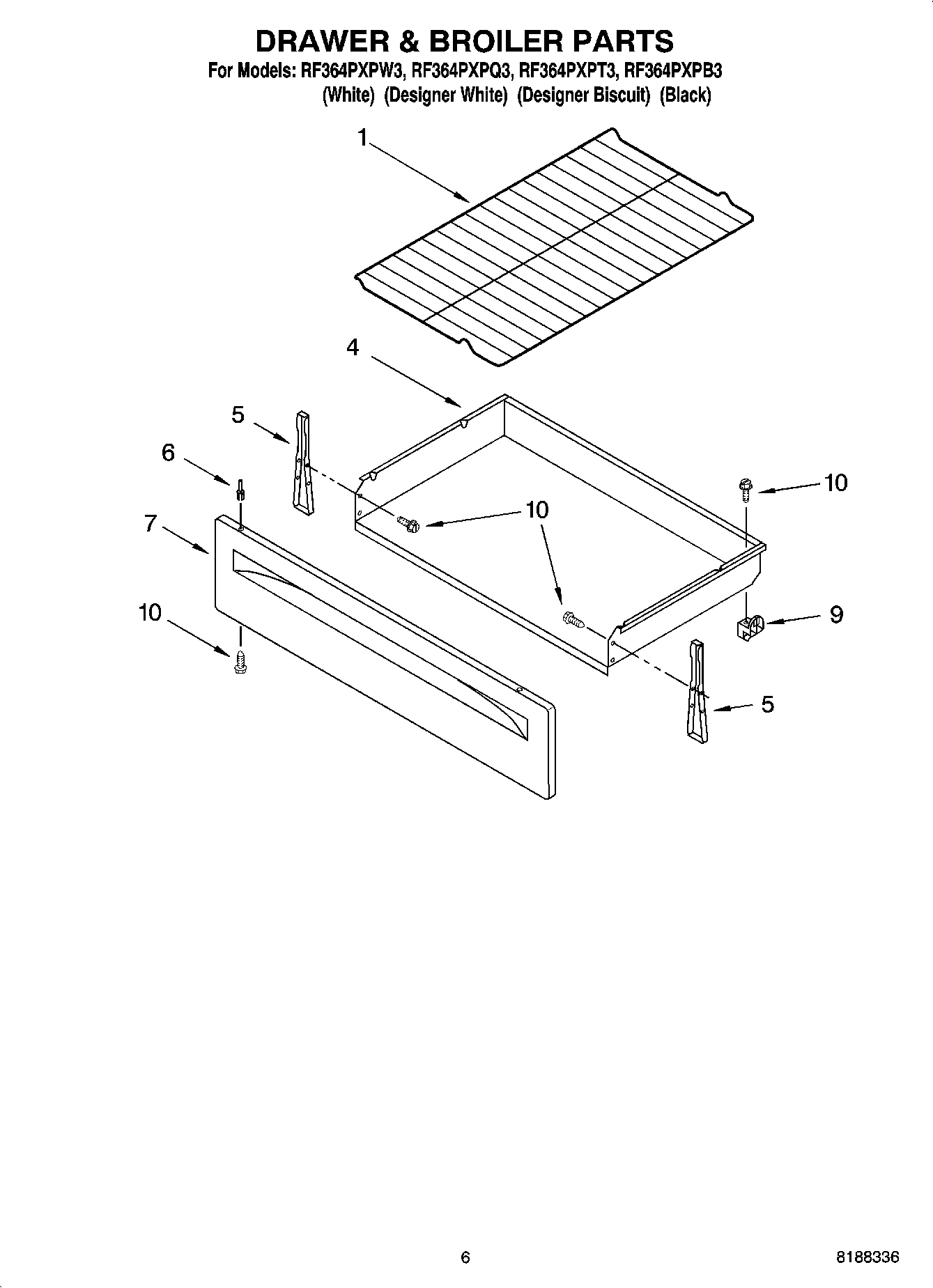

RF364PXPB3 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI160989A
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	WPL ARI160984A
	Wire (14 Ga. 150 c Blue)
	Grease
	WP3196154 Whirlpool Screw Assembly
	WPL 8524132
	WPL ARI160988A
	WPL ARI160987A
	WPL ARI160986A
	WPL ARI160985A
	Harness, Wire (Oven Light)
	WPL 9758173
	WPL 9761468
	WPL 9761458
	WPL 8524114
	WPL ARI160990A
	242831 Whirlpool Oven Wire
	799344 Whirlpool Refrigerator Paint
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	814381 Whirlpool Pin
	W11447673 Whirlpool Range Tip Anchor
	350930 Whirlpool White Spray Paint
	Wire (14 Ga. 150 c Brown)
	Clip, Ground Wire
1	WPW10256908 Whirlpool Oven Range Rack
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196814 Whirlpool Rivet
6	WP3196813 Whirlpool Rivet
6	3196815 Whirlpool Oven Rivet
7	W11230476 Whirlpool Drawer Panel
7	W11230488 Whirlpool Drawer Panel
7	W11219377 Whirlpool Drawer Panel
9	WP8053334 Whirlpool Drawer Glide
10	WP3400832 Whirlpool Screw
