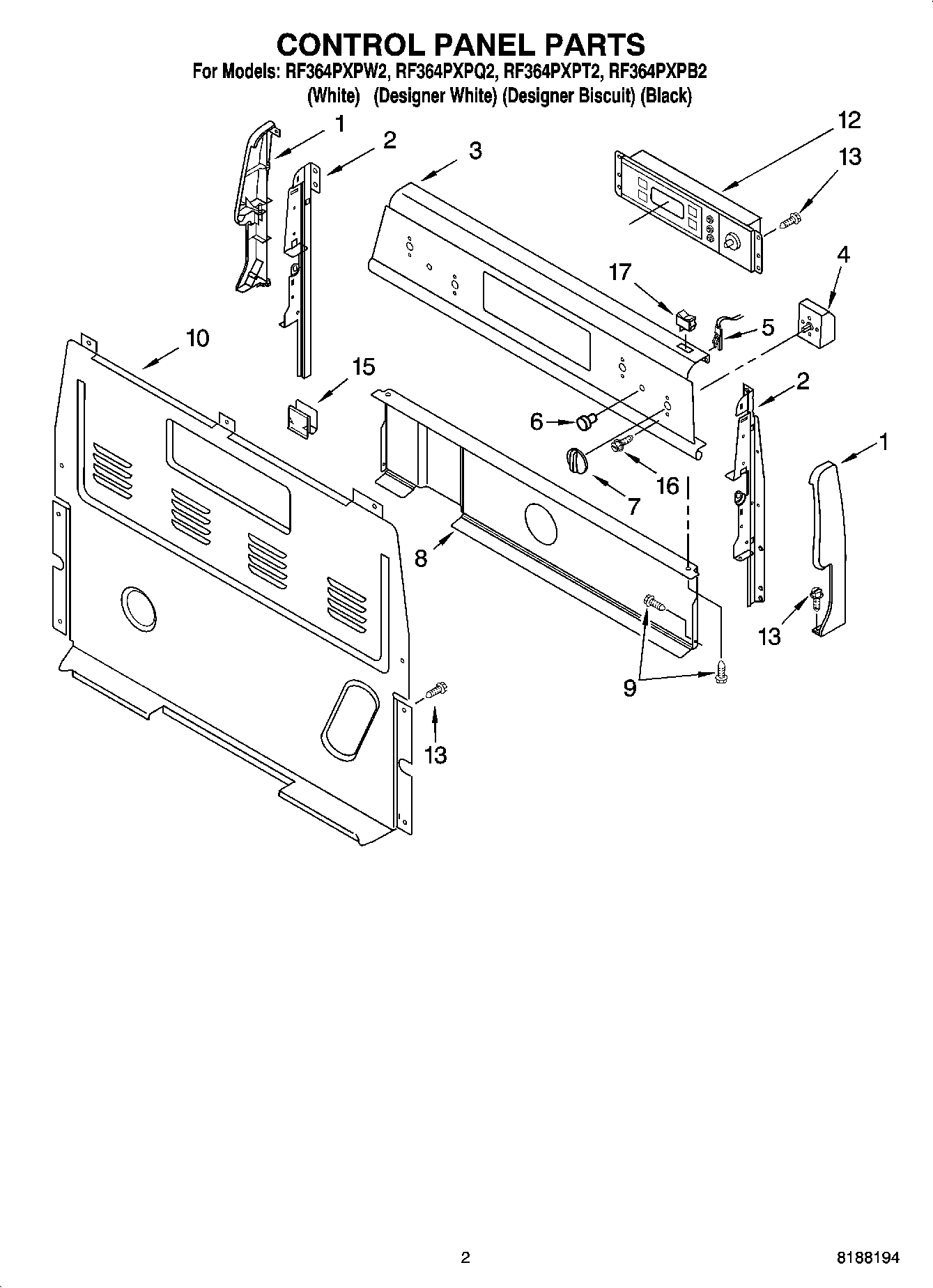

RF364PXPT2 02 – CONTROL PANEL PARTS

RF364PXPT2 02 – CONTROL PANEL PARTS

Written by

in

RF364PXPT2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Black)
3Panel, Backguard (Biscuit)
3Panel, Backguard (White)
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob, Control (4) (Biscuit)
7WP8522566 Whirlpool Knob
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12WP6610456-includeCORE Whirlpool WP6610456 Washer Electronic Control Board + Core
12WP6610457 Whirlpool Electronic Control Board + Core
12Control, Range (Biscuit)
13SCREW
15WP8273564 Whirlpool Clip
16WP3400882 Whirlpool Screw
17Switch, Rocker (Biscuit)
173149360 Whirlpool Light Switch
17WP4314961 Whirlpool Lite Switch
