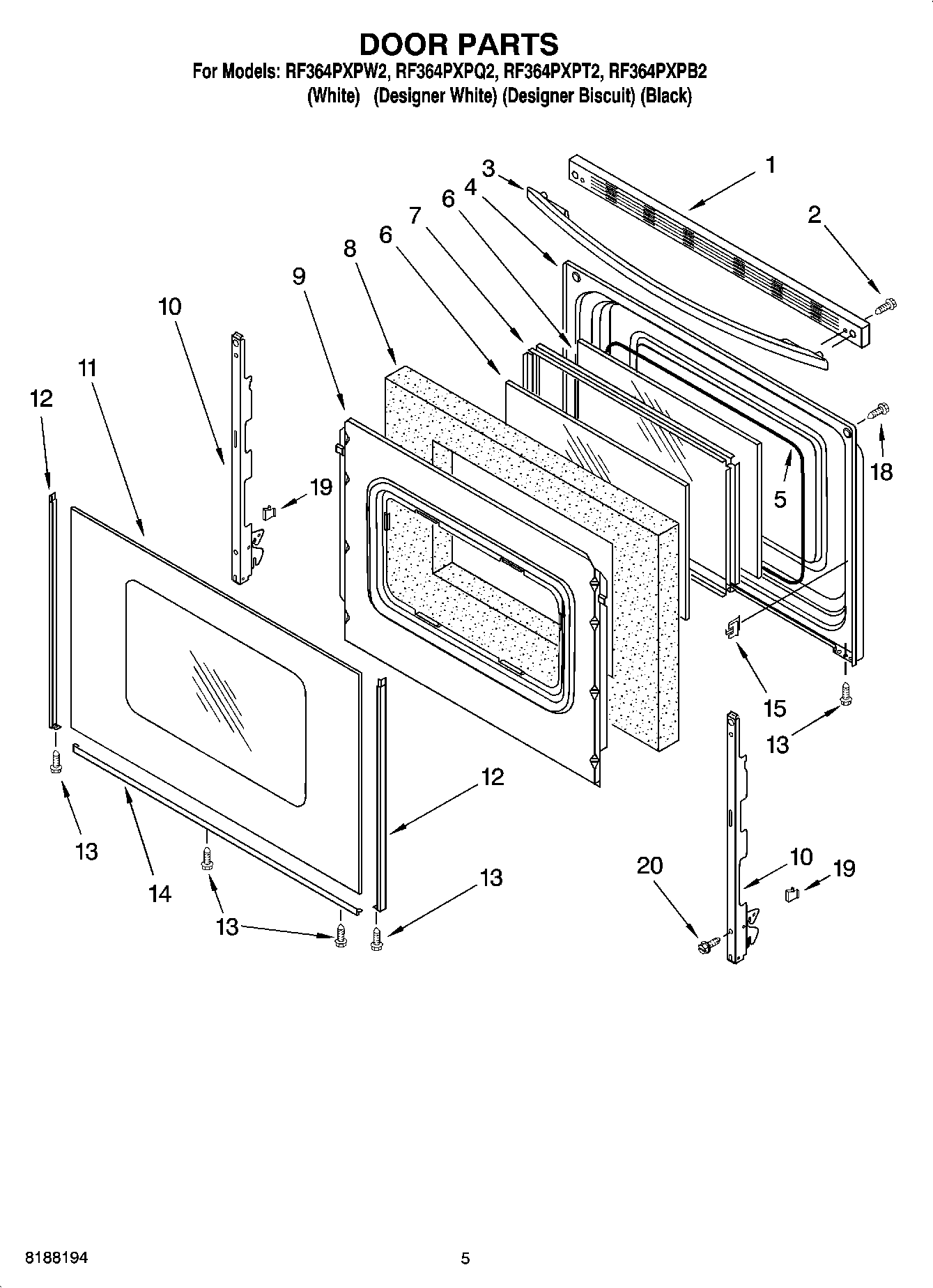

RF364PXPT2 04 – DOOR PARTS

RF364PXPT2 04 – DOOR PARTS

Written by

in

RF364PXPT2 04 – DOOR PARTS

Products

PositionProduct
1Trim, Top (Black)
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Biscuit)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
3Handle, Door (Biscuit)
3WPW10202216 Whirlpool Door Handle
4Liner, Door
58522415 Whirlpool Oven Wind Gasket
6WP9758164 Whirlpool Door Glass
7Frame, Glass
8WPW10278991 Whirlpool Insulation
99761499 Whirlpool Oven Retainer
10WP8053807 Whirlpool Oven Door Hinge
11WP9762476 Whirlpool Door Glass
11WP9762477 Whirlpool Glass Door
11Glass, Door (Biscuit)
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
12WP8523166 Whirlpool Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523172 Whirlpool Left Door Trim
12WP8523173 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP8523177 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
14WP8523175 Whirlpool Door Trim Assembly
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
