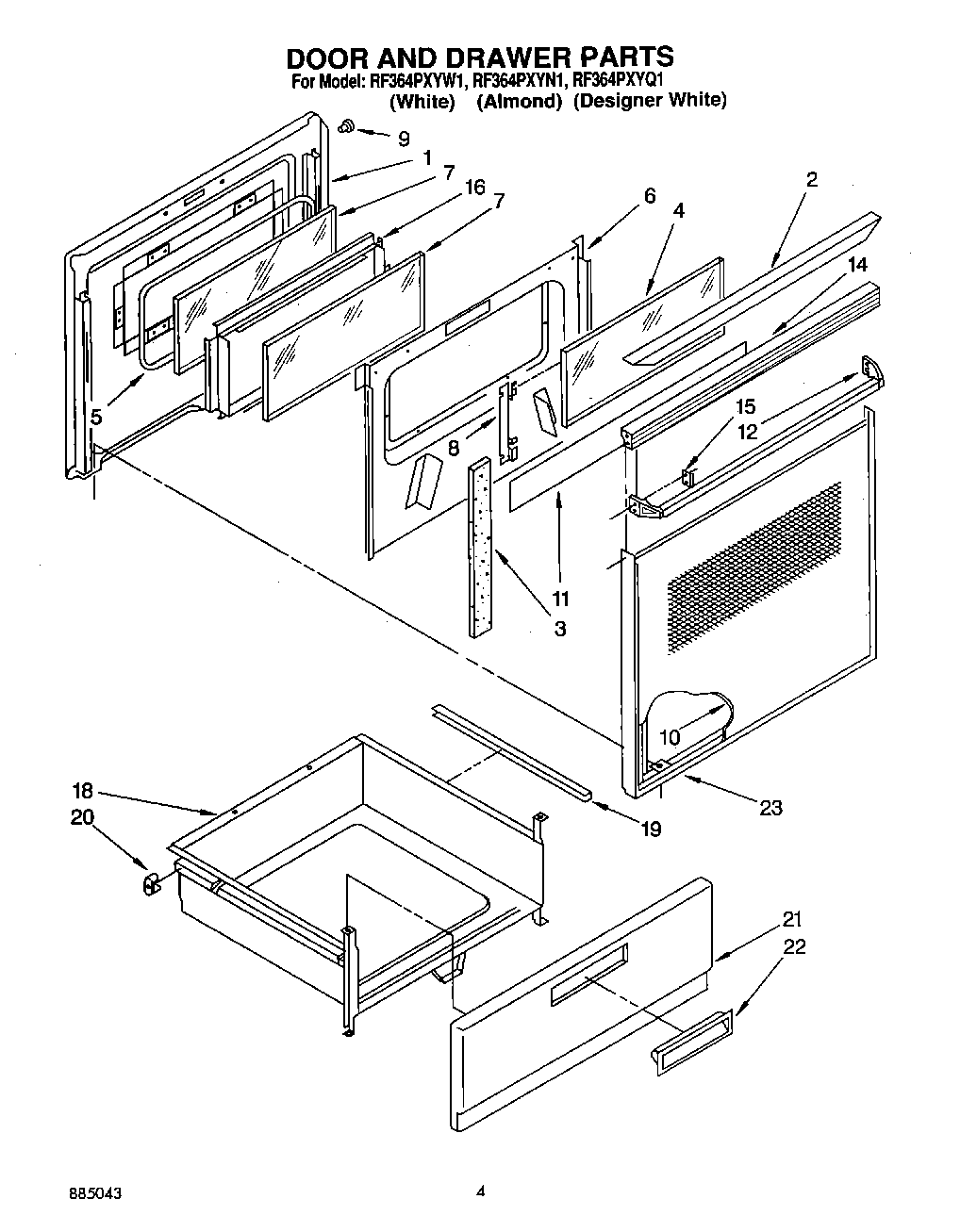

RF364PXYN1 03 – DOOR AND DRAWER

Products

Position	Product
1	Screw
1	Liner, Door
2	Cap, Top
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Door (White)
12	Handle, Oven Door
14	Screw, (2) 10-16 x 1/2
14	WP308685 Whirlpool Microwave Screw
14	Top, Door (White Model)
14	Top, Door (Black Model)
15	Clip, Mtg (2)
16	Screw
16	Frame, Inner
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
21	Panel, Drawer (White)
21	Panel, Drawer (Almond)
21	WP488627 Whirlpool Refrigerator Screw
22	Handle, Snap-In (White)
22	Handle, Snap-In (Almond)
23	Frame, Door
23	Screw, 10A x 1/2 (2) (Black)
23	WP355515 Whirlpool Screw
