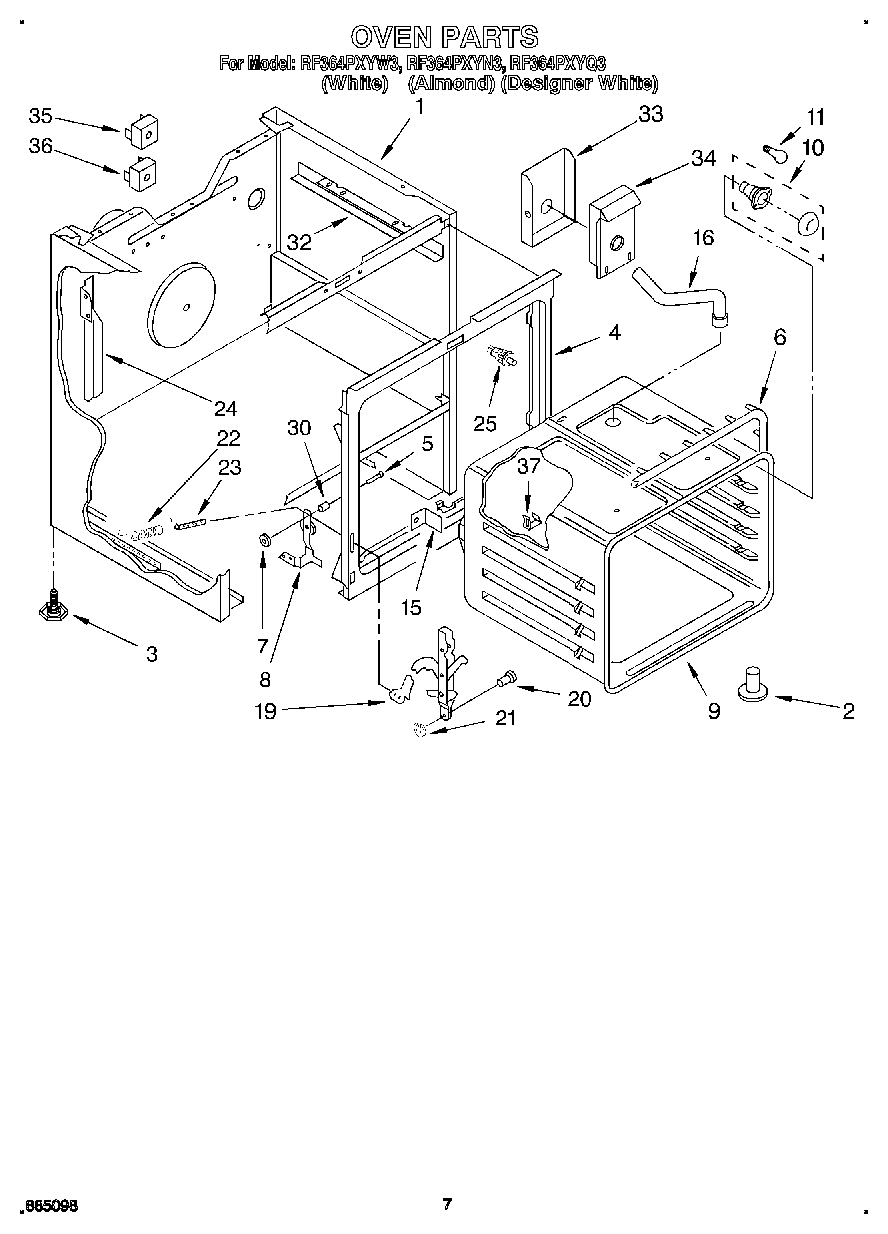

RF364PXYN3 05 – OVEN

Products

Position	Product
1	Main Chassis (Almond)
1	Main Chassis (White)
2	Tube, Vent
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Front Frame
4	Screw (Top)
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge, R.H.
8	Hinge, L.H.
9	Oven (30“ Pyro)
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	Vent, Oven
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	WP308126 Whirlpool Door Spring
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover
24	SCREW
24	Wire Cover-Controls (Right)
25	Switch, Door
30	Snubber, Door (2)
32	Support, Chassis
32	WP3390631 Whirlpool Screw
33	Screw (2)
33	Shield, Vent
34	WP488627 Whirlpool Refrigerator Screw
34	Vent, Box
35	Sw
36	Switch, Bake
36	WPL 314215
37	98005642 Whirlpool Clip
37	WPL 3169093
37	WPL 3169094
