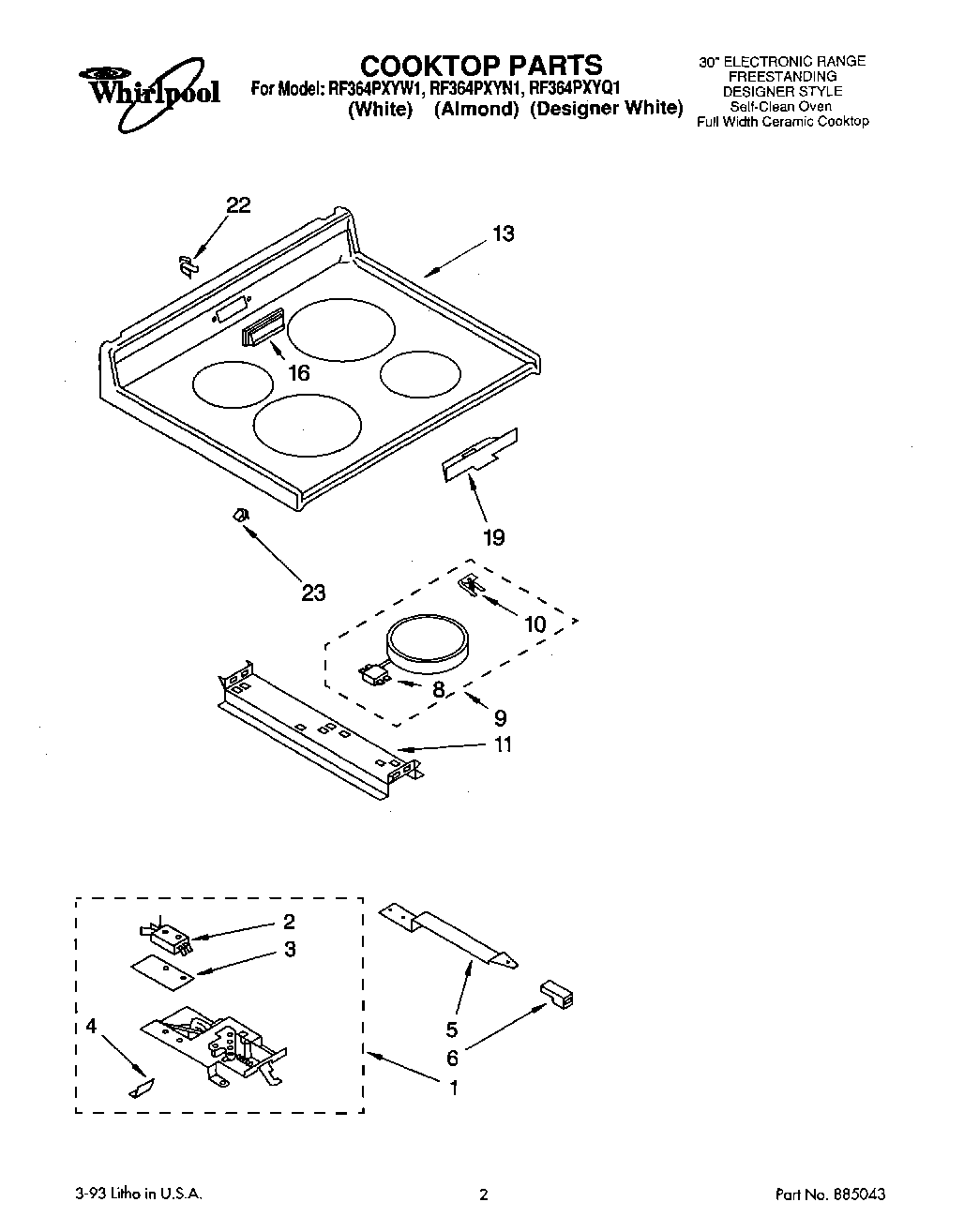

RF364PXYQ1 01 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	Use and Care Guide
	Wiring Diagram
	Video, Ceran Cooktop
	Instructions, Installation
1	Latch & Switch Assembly
1	SCREW
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Handle, Latch
5	Screw
5	Handle, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
8	Limiter, Temperature (Use W/3183648 Element)
8	Limiter Temp. (7“ – RF)
9	Element, Surface (Includes No.1) (200 MM – (2))
9	Element, Surface (Includes No.1) (230 MM – (2))
10	Spring, Locator
10	WP486754 Whirlpool Compactor Screw
11	Bracket, (2) Element Support
11	Screw (2)
13	Cooktop (Designer White Mdl)
13	WP308685 Whirlpool Microwave Screw
13	Cooktop (White Mdl.)
13	Cooktop (Almond Mdl.)
16	cover, vent (almond)
16	Cover, Vent (White)
19	Shield, Probe
22	Clip, Vent Cover
23	Clip
