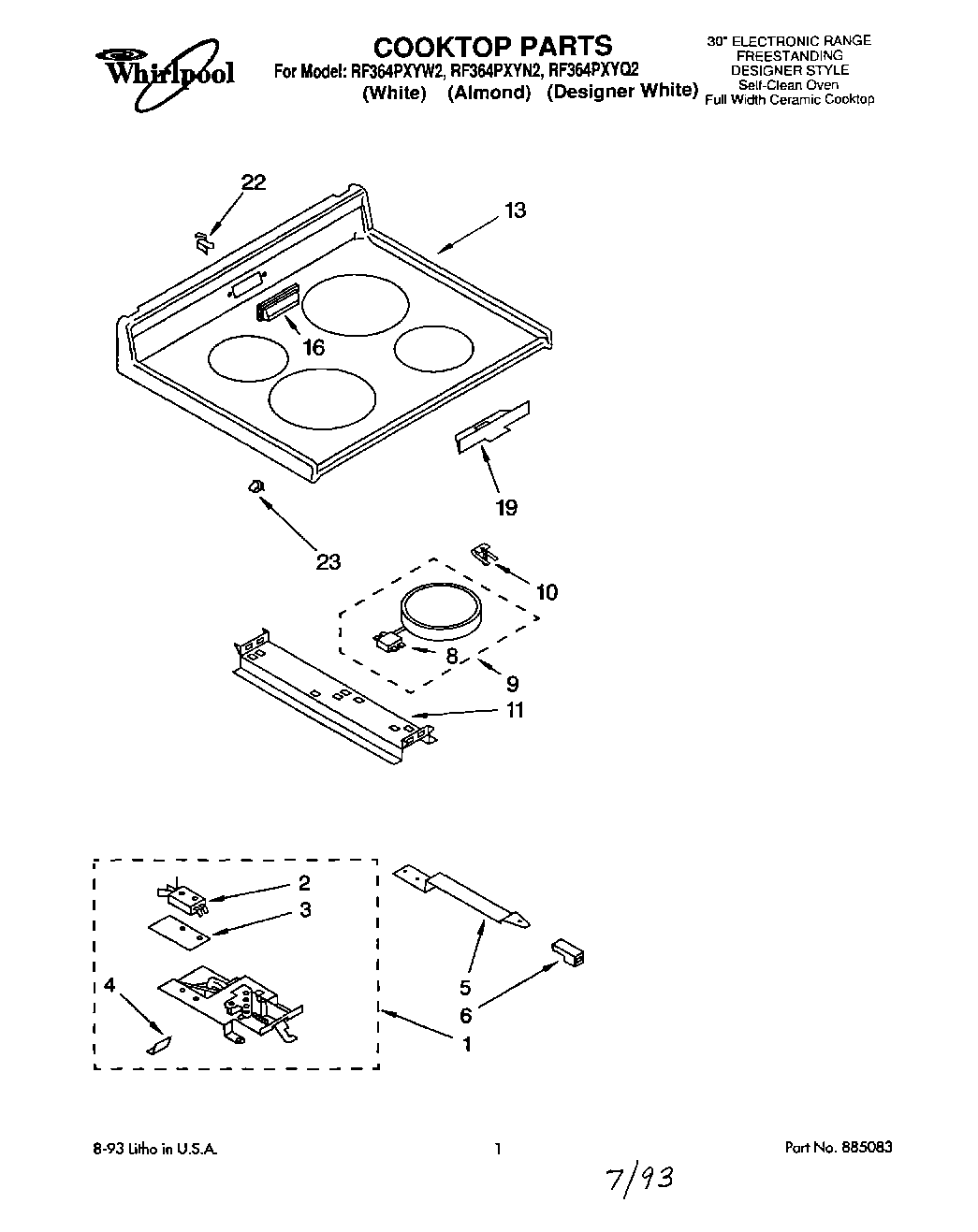

RF364PXYQ2 01 – COOKTOP, LIT/OPTIONAL

Products

PositionProduct
Use and Care Guide
Wiring Diagram
Instructions, Installation
WPL LIT3150400
1Latch & Switch Assembly
1SCREW
2Safety Switch
2Screw
3Insulator, Switch
4Screw
4Shield, Latch
5Screw
5Handle, Latch
5Handle, Latch
6Knob, Latch
6Knob, Latch
6WP486579 Whirlpool Air Conditioner Screw
8Limiter, Temperature (Use W/3183648 Element)
8Limiter Temp. (7“ – RF)
9Element, Surface (1700W Right Front)
9Element, Surface (2100W Right Rear)
10WP486754 Whirlpool Compactor Screw
10Spring, Locator
11Screw (2)
11Bracket, (2) Element Support
13Cooktop (Designer White Mdl)
13Cooktop (Almond Mdl.)
13Cooktop (White Mdl.)
13WP308685 Whirlpool Microwave Screw
16cover, vent (almond)
16Cover, Vent (White)
19Shield, Probe
22Clip, Vent Cover
23Clip
