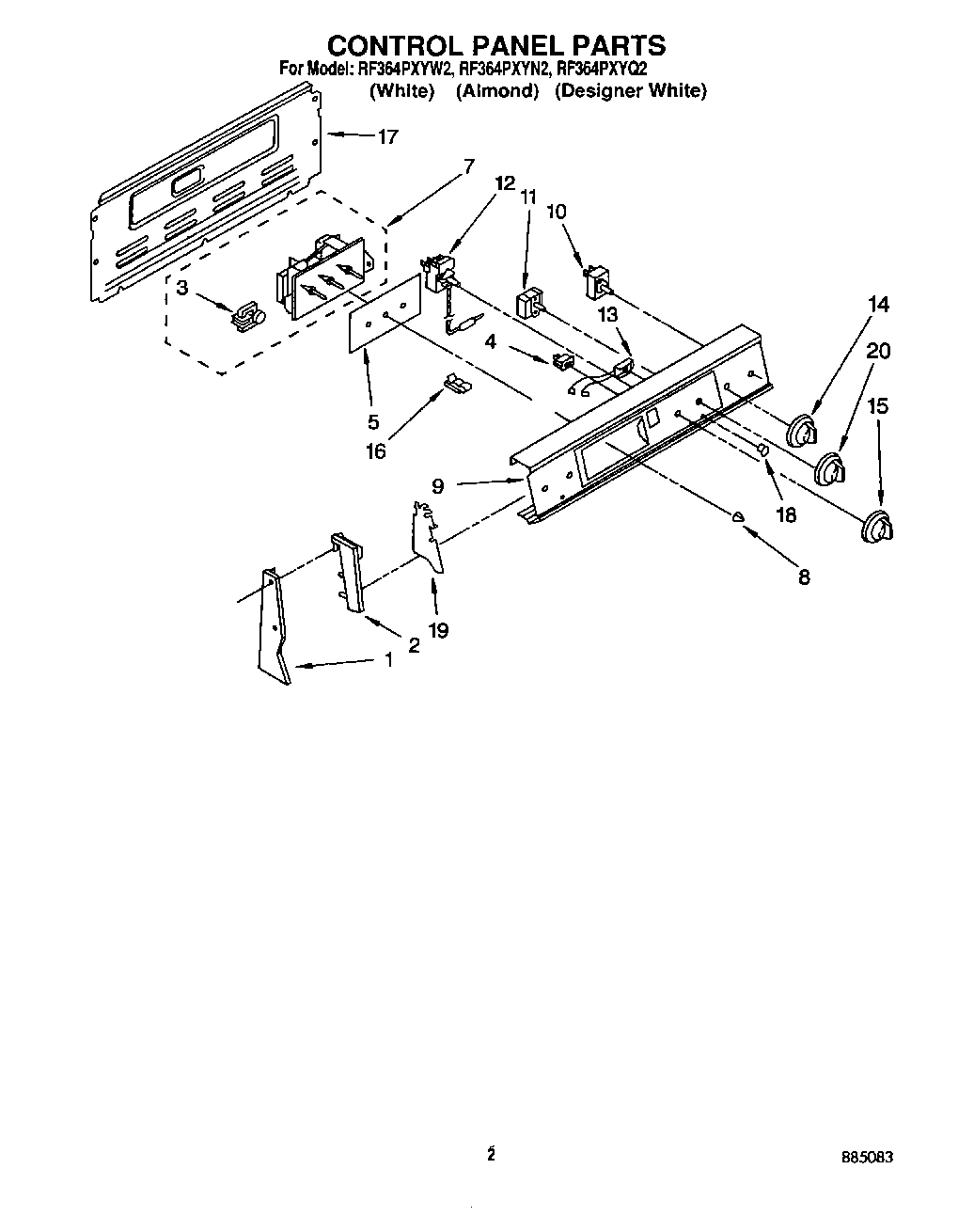

RF364PXYQ2 02 – CONTROL PANEL

Products

Position	Product
1	End Trim R.H.
1	End Trim L.H.
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
3	Motor, Timer
4	3149360 Whirlpool Light Switch
4	WP4314961 Whirlpool Lite Switch
5	Glass, Timer
7	Control, Oven Assembly
7	Timer, Control
8	WP3169181 Whirlpool Knob
9	Panel, Control (Designer White)
9	Washer
9	Panel, Control (White/Almond)
10	WP3148952 Whirlpool Oven Infinite Switch
10	SWITCH-INF
10	Screw, 8-32 x 3/16 (2)
11	Switch, Selector
12	WP313808 Whirlpool Screw
12	Thermostat, Oven (Alt.)
12	Thermostat, Oven (Alt.)
12	Thermostat, Oven
13	Indicator Light (1)
13	Light, Indicator (Includes No. 12) (Surface Unit On)
13	Light, Indicator (250V)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
14	Knob, (4) Infinite Switch (Designer Mdl)
15	Knob (Temp) (White/Almond)
15	Designer White Mdl
16	Clip, Tube
17	Rear Cover Contr
17	SCREW
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
20	Knob (Selector)
20	WPL 3183116
