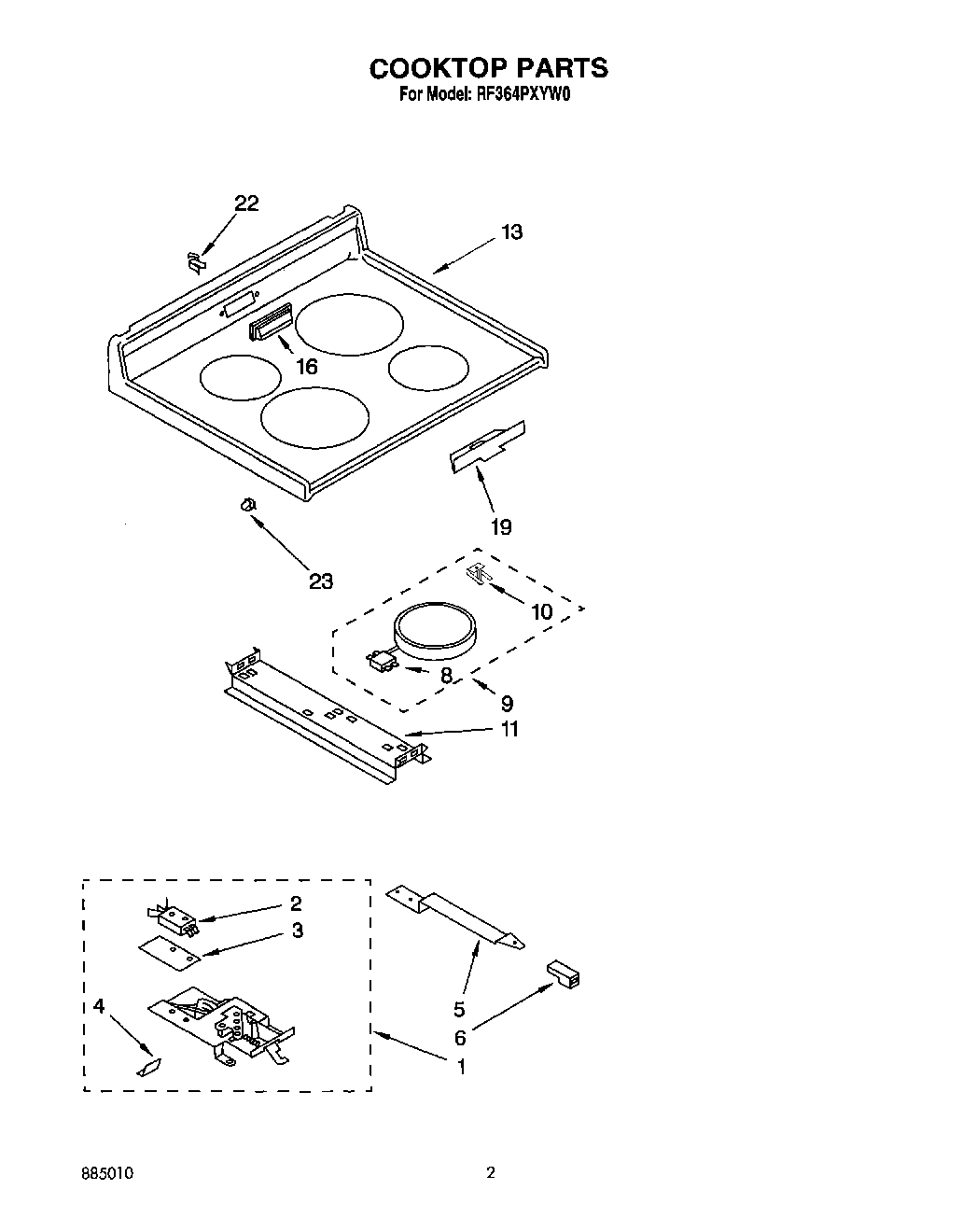

RF364PXYW0 02 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	Use and Care Guide
	Wiring Diagram
	Video, Ceran Cooktop
	WPL LIT3147395
1	SCREW
1	Latch & Switch Assembly
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Screw
5	Handle, Latch
5	Handle, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
8	Limiter, Temperature (Use W/3183648 Element)
8	Limiter Temp. (7`` - RF)
9	Element, Surface (Includes No.1) (230 MM - (2))
9	Element, Surface (Includes No.1) (200 MM - (2))
10	Spring, Locator
10	WP486754 Whirlpool Compactor Screw
11	Bracket, (2) Element Support
11	Screw (2)
13	Cooktop (Designer White Mdl)
13	Cooktop (Almond Mdl.)
13	Cooktop (White Mdl.)
16	cover, vent (almond)
16	Cover, Vent (White)
19	Shield, Probe
22	Clip, Vent Cover
23	Clip
