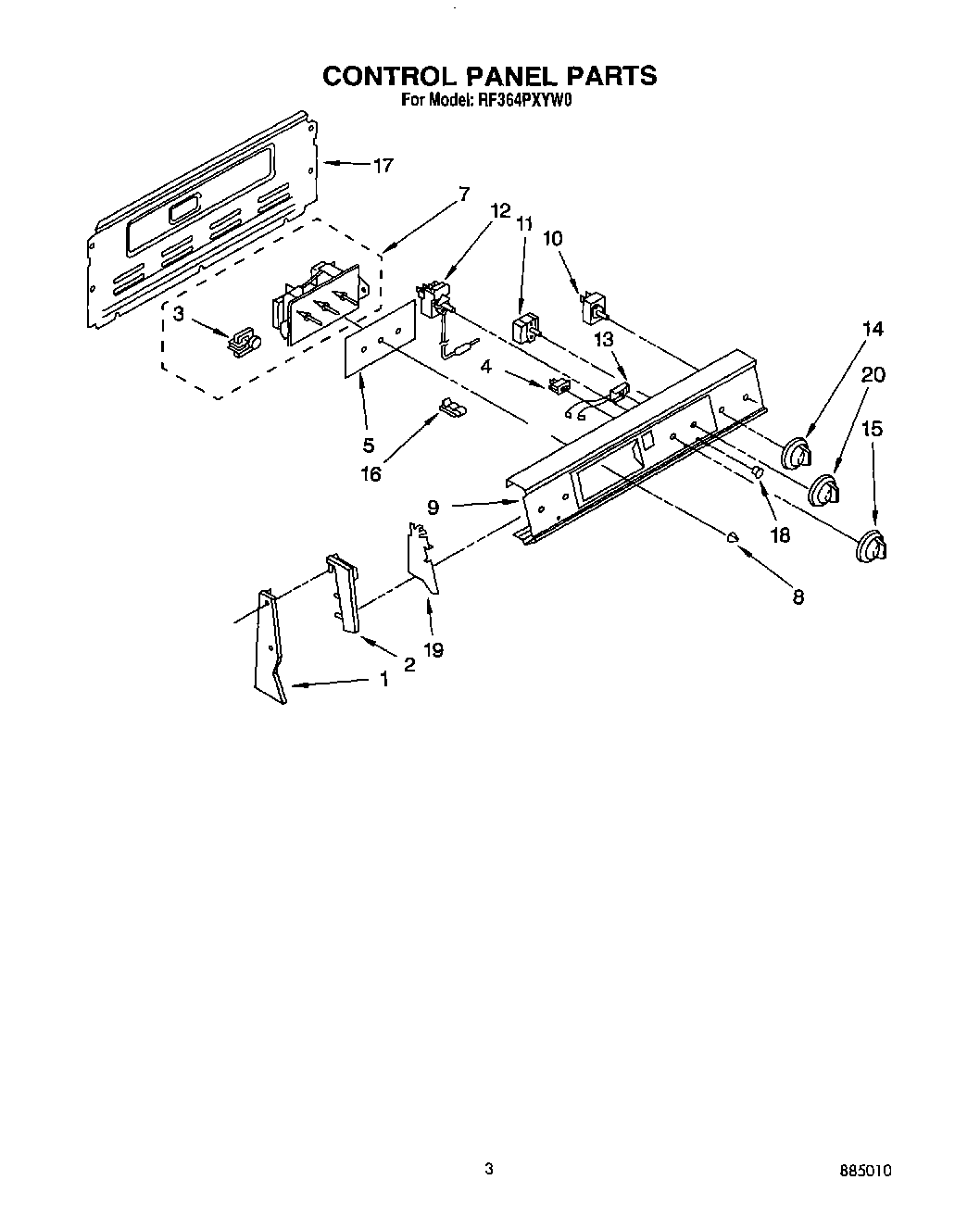

RF364PXYW0 03 – CONTROL PANEL

Products

Position	Product
1	End Trim R.H.
1	End Trim L.H.
2	End Cap L.H.
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
2	End Cap R.H.
3	Motor, Timer
4	WP4314961 Whirlpool Lite Switch
4	3149360 Whirlpool Light Switch
5	Glass, Timer
7	Timer, Clock (Designer White Mdl (Includes No.6))
7	Timer, Control
8	WP3169181 Whirlpool Knob
9	Panel, Control (White/Almond)
9	Panel, Control (Designer White)
9	Washer
10	WP3148952 Whirlpool Oven Infinite Switch
10	WP486579 Whirlpool Air Conditioner Screw
10	SWITCH-INF
11	Switch, Selector
12	Thermostat, Oven
12	WP313808 Whirlpool Screw
12	Thermostat, Oven (Alt.)
12	Thermostat, Oven (Alt.)
13	Light, Indicator (250V)
13	Light, Indicator (Includes No. 12) (Surface Unit On)
14	Knob, (4) Infinite Switch (Designer Mdl)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Designer White Mdl
15	Knob (Temp) (White/Almond)
16	Clip, Tube
17	SCREW
17	Harness-Conduit Asm.
18	Lens, Amber
19	WP965173 Whirlpool Dishwasher Screw
19	Shield (2)
20	WPL 3183116
20	Knob (Selector)
