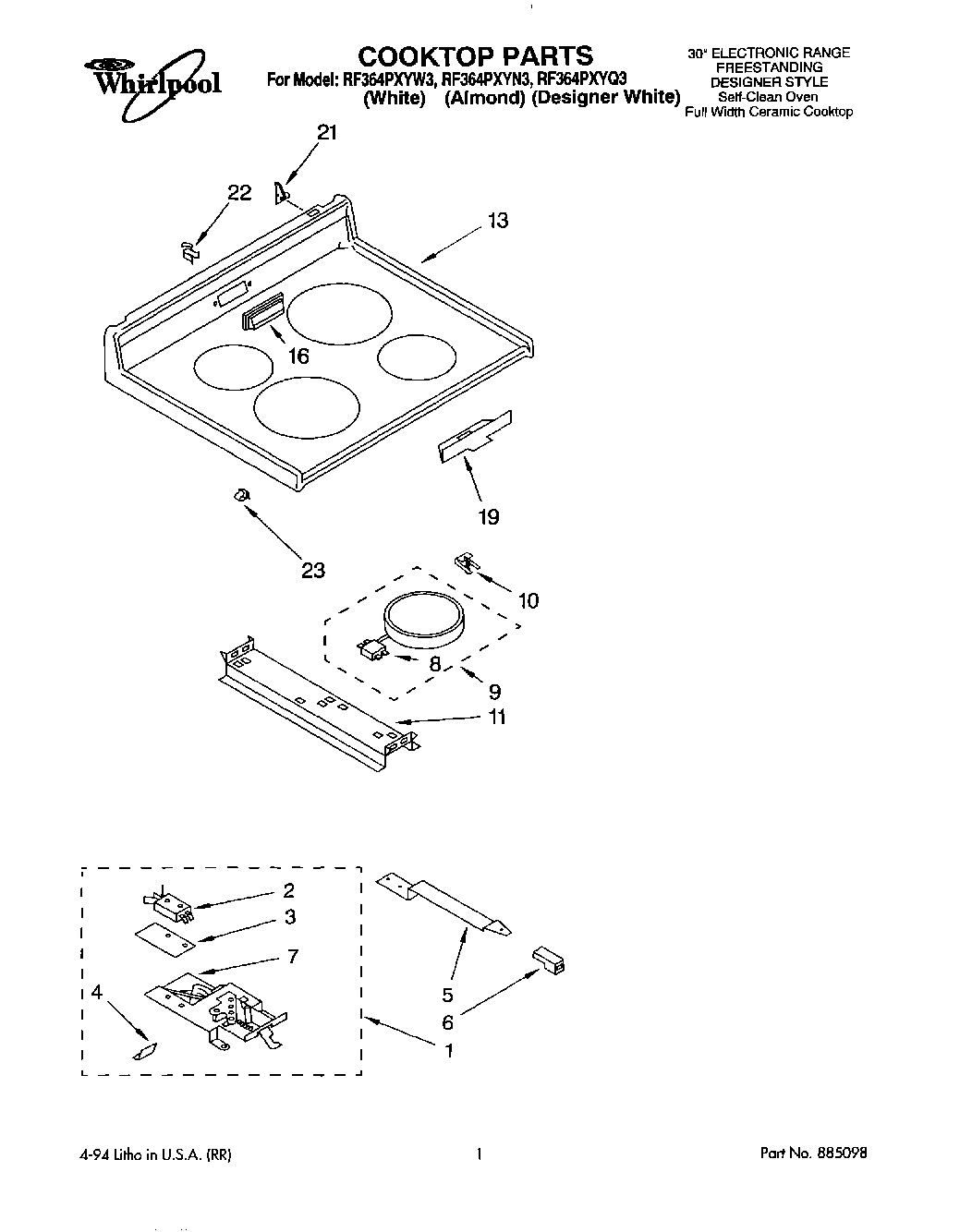

RF364PXYW3 01 – COOKTOP, LITERATURE

Products

Position	Product
	Use and Care Guide
	Wiring Diagram
	Instructions, Installation
	WPL LIT3150400
1	Latch & Switch Assembly
1	SCREW
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Screw
5	Handle, Latch
5	Handle, Latch
6	Knob, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
7	Latch Mechanism
8	Limiter Temp. (7“ – RF)
8	Limiter, Temperature (Use W/3183648 Element)
9	Element, Surface (1700W Right Front)
9	Element, Surface (2100W Right Rear)
10	Spring, Locator
10	WP486754 Whirlpool Compactor Screw
11	Bracket, (2) Element Support
11	Screw (2)
13	Cooktop (White Mdl.)
13	Cooktop (Almond Mdl.)
13	Cooktop (Designer White Mdl)
13	WP308685 Whirlpool Microwave Screw
16	Cover, Vent (White)
16	cover, vent (almond)
19	Shield, Probe
21	Bracket, Cooktop (Right)
21	Bracket, Cooktop (Screw,(4) 10-16 x 1/2)
21	Bracket, Cooktop (Left)
22	Clip, Vent Cover
23	Clip
