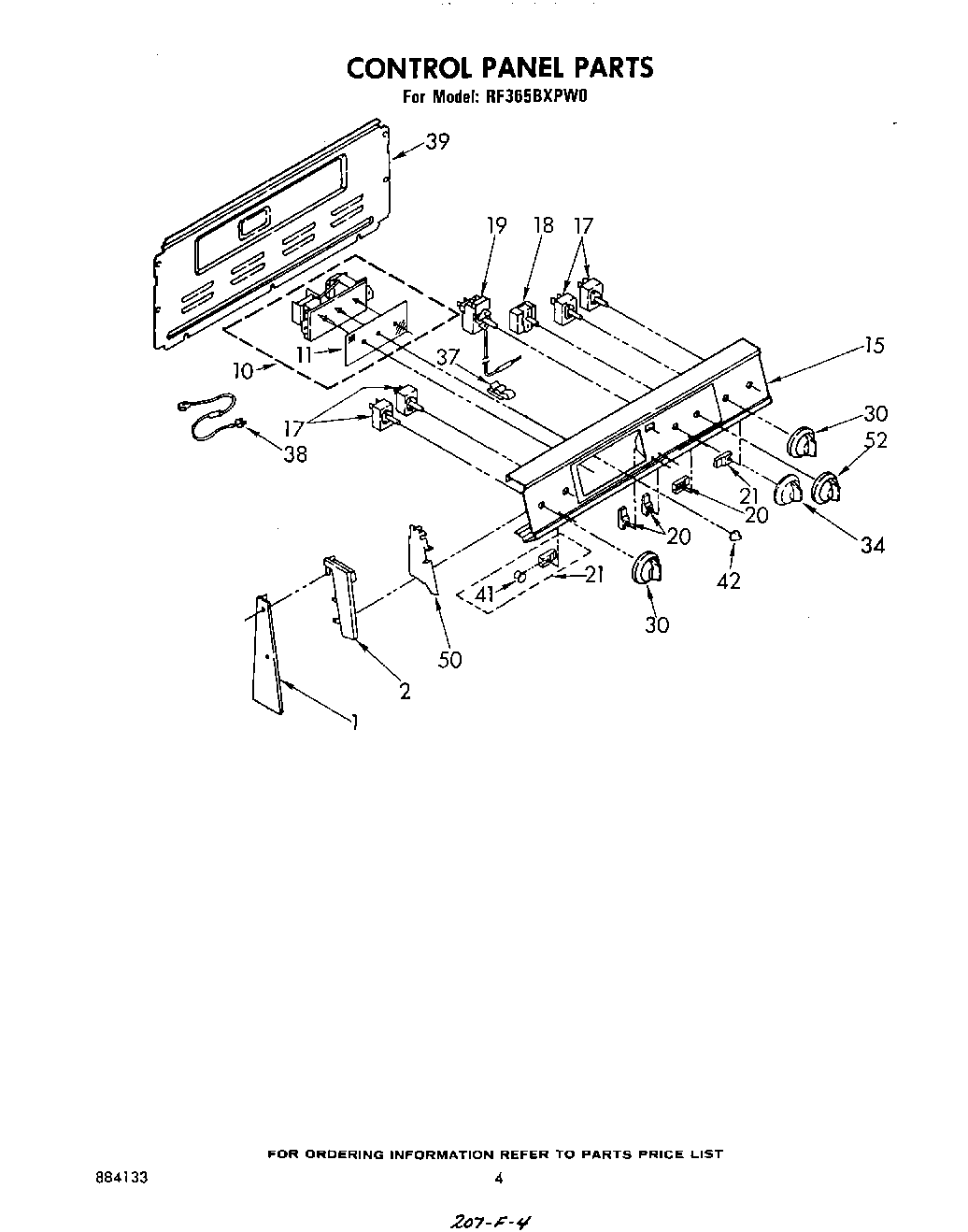

RF365BXPN0 03 – CONTROL PANEL

Products

Position	Product
1	Washer
1	WP3390631 Whirlpool Screw
1	End Trim L.H.
2	Screw,
2	End Cap R.H.
2	End Cap L.H.
10	Timer, Auto
11	Glass, Timer
15	Panel, Control
15	Washer
17	WP3149404 Whirlpool Oven Surface Element Switch
17	WP3149400 Whirlpool Oven Infinite Switch
18	Switch, Selector (5 Position)
18	WP486579 Whirlpool Air Conditioner Screw
19	WP313808 Whirlpool Screw
19	Thermostat, Oven Pyro
20	Light, Indicator
21	Light, Indicator (Surface Unit (2))
30	Knob, Control (4)
34	Knob, Control (2)
34	Screw
37	Clip, Tube
38	Resistor & Terminal Assembly
39	SCREW
39	Harness-Conduit Asm.
41	Lens, Amber
42	WP3169181 Whirlpool Knob
42	Spring (3)
50	Shield (2)
50	WP965173 Whirlpool Dishwasher Screw
52	WP688805 Whirlpool Spring Clip
52	KNOB, CONTROL
