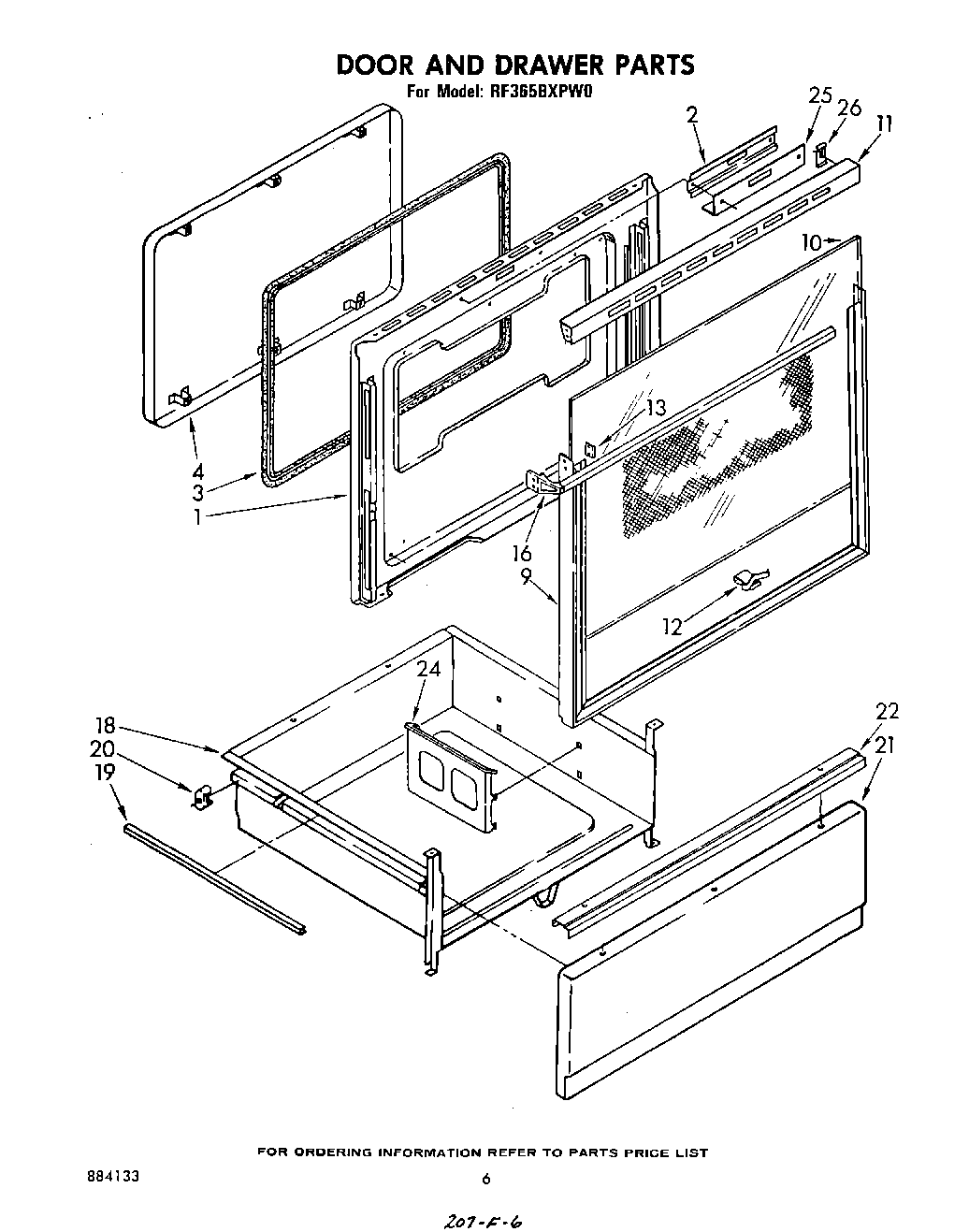

RF365BXPN0 05 – DOOR AND DRAWER

Products

Position	Product
1	Screw (3)
1	Liner, Door
2	Channel, Latch
2	Screw (2)
3	Seal, Fiberglass
4	Panel, Inner
9	frame, door 30“
10	Glass, Outer
11	Top, Door Frame
11	WP90296 Whirlpool Clip
12	clip, glass (10)
13	screw (3)
16	WP355515 Whirlpool Screw
16	Handle, Oven Door
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
20	Screw, 10A x 1/2 (2) (Black)
21	Panel, Drawer (Platinum)
21	Panel, Drawer (Toast)
21	Panel Drawer (Harvest Gold)
21	Panel, Drawer (Almond)
21	Panel Drawer (White)
21	WP488787 Whirlpool Refrigerator Screw
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
24	Rack, Literature
25	Shield, Insulation
26	hold down, glass (2)
