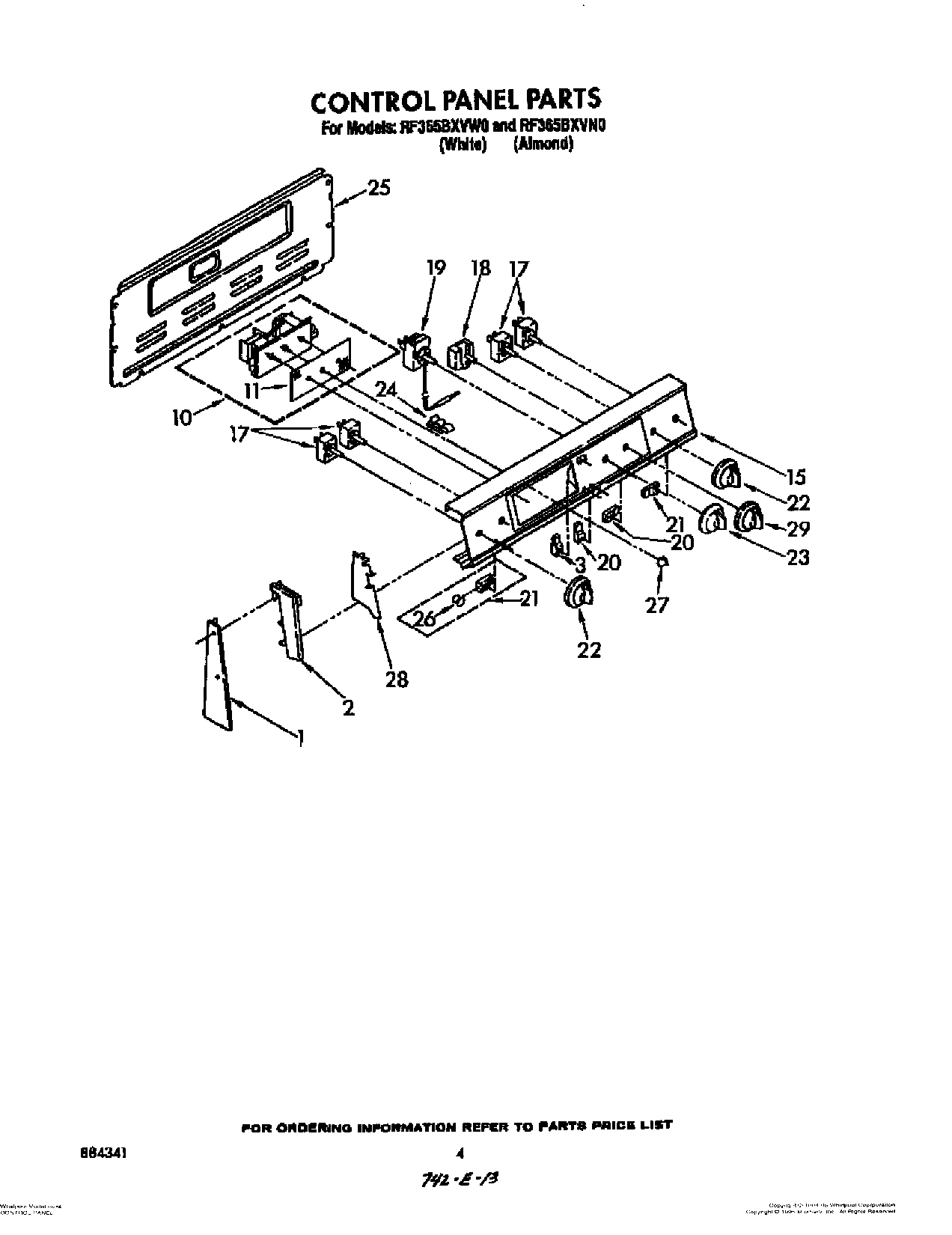

RF365BXVN0 03 – CONTROL PANEL

RF365BXVN0 03 – CONTROL PANEL

Written by

in

RF365BXVN0 03 – CONTROL PANEL

Products

PositionProduct
1WP3390631 Whirlpool Screw
1End Trim L.H.
1Washer
2End Cap L.H.
2End Cap R.H.
2Screw,
3Indicator Light (1)
10Timer, Clock (Includes No.6)
11Glass, Timer
15Panel, Control
15Washer
17WP3148952 Whirlpool Oven Infinite Switch
17WP3149400 Whirlpool Oven Infinite Switch
18Switch, Selector (5 Position)
18WP486579 Whirlpool Air Conditioner Screw
19WP313808 Whirlpool Screw
19Thermostat, Oven
20Light, Indicator (250V)
21Light, Indicator (Surface Unit (2))
22Knob, Control (4)
23Screw
23Knob, Control (2)
24Clip, Tube
25Harness-Conduit Asm.
25SCREW
26Lens, Amber
27Spring (3)
27WP3169181 Whirlpool Knob
28Shield (2)
28WP965173 Whirlpool Dishwasher Screw
29KNOB, CONTROL
29WP688805 Whirlpool Spring Clip
