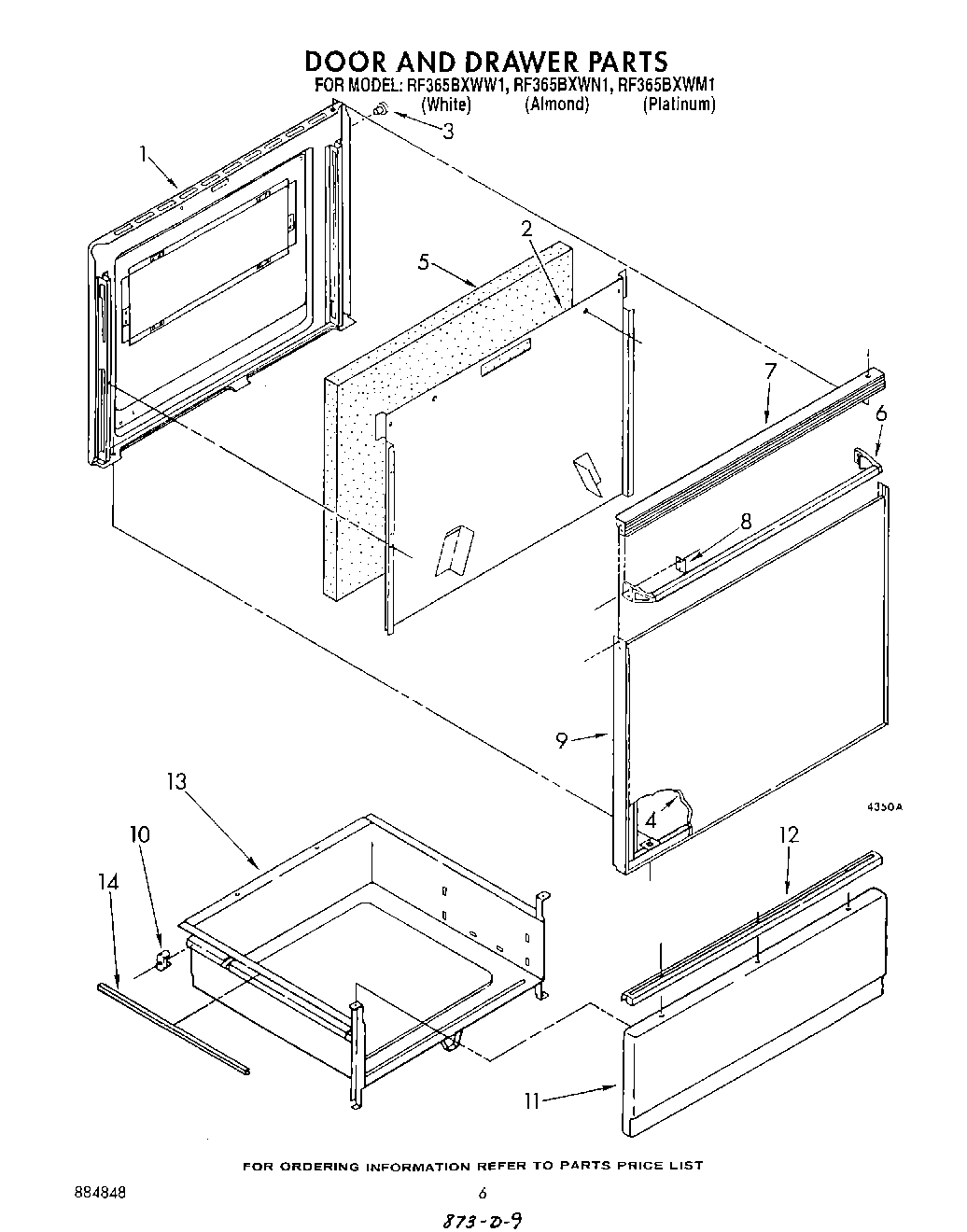

RF365BXWM1 05 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Oven Door
2	Retainer, Insulation
2	Screw
3	Bumper (4)
4	Panel, Door (Black Glass)
5	Insulation, Door
6	Handle, Oven Door
7	Back Splash (Screw (4) 10AB x 1/2“)
7	Top, Door (Black Model)
8	WP355515 Whirlpool Screw
8	Clip, Mtg (2)
9	Frame, Door
10	Screw, 10A x 1/2 (2) (Black)
10	Glide, Rear (2)
11	Panel Drawer (White)
11	Panel, Drawer (Almond)
11	Panel, Drawer (Platinum)
11	WP488787 Whirlpool Refrigerator Screw
12	Handle, Drawer
12	WP488627 Whirlpool Refrigerator Screw
13	Drawer, Utility
14	Protector, Drawer (2)
