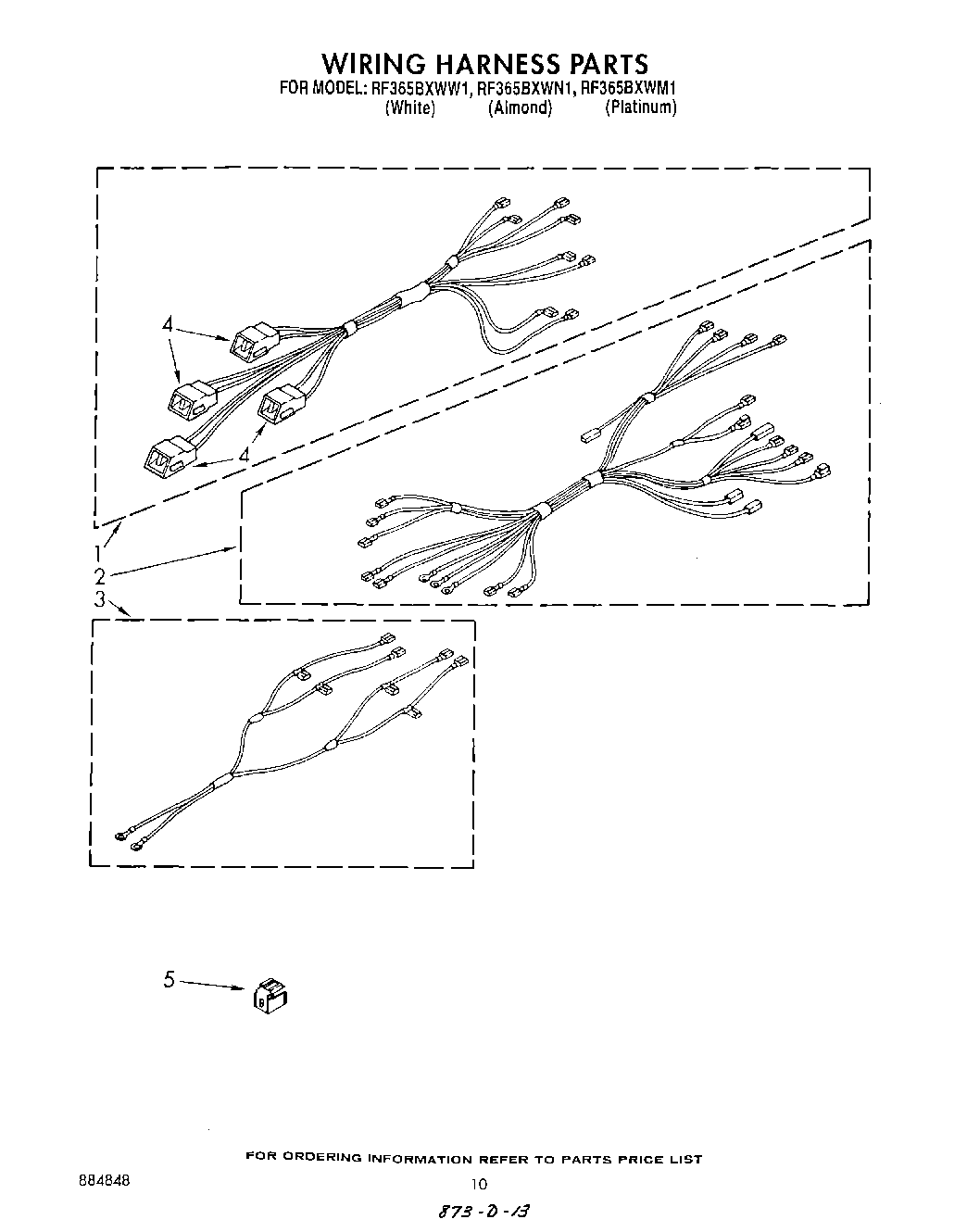

RF365BXWW1 07 – WIRING HARNESS , LITERATURE AND OPTIONALadmin2025-04-26T12:46:08+00:00RF365BXWW1 07 – WIRING HARNESS , LITERATURE AND OPTIONAL
Products
| Position | Product |
|---|
| WPL LIT3149507 |
| WPL LIT3148614 |
| 511873 Whirlpool Refrigerator Paint |
| WPL LIT884848 |
| WPL LIT3150548 |
| WPL LIT3150572 |
| 1 | Harness, Wire (Surface unit) |
| 2 | Harness, Wire (Oven) |
| 3 | Harness, Wire (Main) |
| 3 | Harness, Wire (Oven Light) |
| 3 | Harness, Wire (Lock Switch) |
| 3 | Harness, Wire (Latch & Switch) |
| 4 | BURNER RECEPTACLE KIT |
| 5 | Wire (12 Ga. 150 c Black) |
| 5 | Wire (14 Ga. 150 c Yellow) |
| 5 | Wire (14 Ga. 150 c Orange) |
| 5 | Wire (14 Ga. 150 c Green) |
| 5 | Wire (14 Ga. 150 c Brown) |
| 5 | Leveler (Thinner) (2oz.) |
| 5 | Wire (14 Ga. 150 c Blue) |
| 5 | 18 Ga. 80~c Rating (Red) |
| 5 | Wire (14 Ga. 200 c Brown) |
| 5 | 1 |
| 5 | Enamel, Coffee (1 Qt. Uncut) |
| 5 | Enamel, New Avocado (1 Qt. Uncut) |
| 5 | 8212471 Whirlpool Oven Paint |
| 5 | Grease |
| 5 | Rotisserie Kit (RCK 81) |
| 5 | 72113 Whirlpool Touch-Up Paint |
| 5 | 242831 Whirlpool Oven Wire |
| 5 | Adapter, Terminal |
| 5 | WPL 310433 |
| 5 | Enamal, Toast (1 Qt. Uncut) |
| 5 | Paint, Spray (13 Oz.) (Platinum) |
| 5 | Toast |
| 5 | Golden Harvest (Uncut) |
| 5 | Golden Harvest |
| 5 | 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 5 | Almond (Uncut) |
| 5 | WP72107 Whirlpool Touchup |
| 5 | 799344 Whirlpool Refrigerator Paint |
| 5 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 5 | 350956 Whirlpool Spray Assembly |
| 5 | Platinum (Uncut) |
| 5 | WPL 72112 |
| 5 | 350942 Whirlpool Spray Paint |
| 5 | Paint, Spray 13 Oz. (Avocado) |
| 5 | paint, spray 13 oz. (coffee) |
| 5 | Paint, Touch-Up 1/2 Oz. (Coffee) |
| 5 | 72109 Whirlpool Dacor Avocado Touch-Up Paint |
| 5 | 285006 Whirlpool Spray |
| 5 | Wire, 25`` Roll (White 14 GA.) |
| 5 | Wire, 25` Roll (Red 14 Ga.) |
| 5 | Wire, 25` Roll (Black 14 Ga.) |
| 5 | FOIL, ALUMINUM OVEN (18`` X 25 ) |
| 5 | WPW10208653 Whirlpool Insulation |
| 5 | WPL 799832 |
| 5 | 350930 Whirlpool White Spray Paint |
