RF365EXPW0 04 – DOOR AND DRAWER
Written by
in

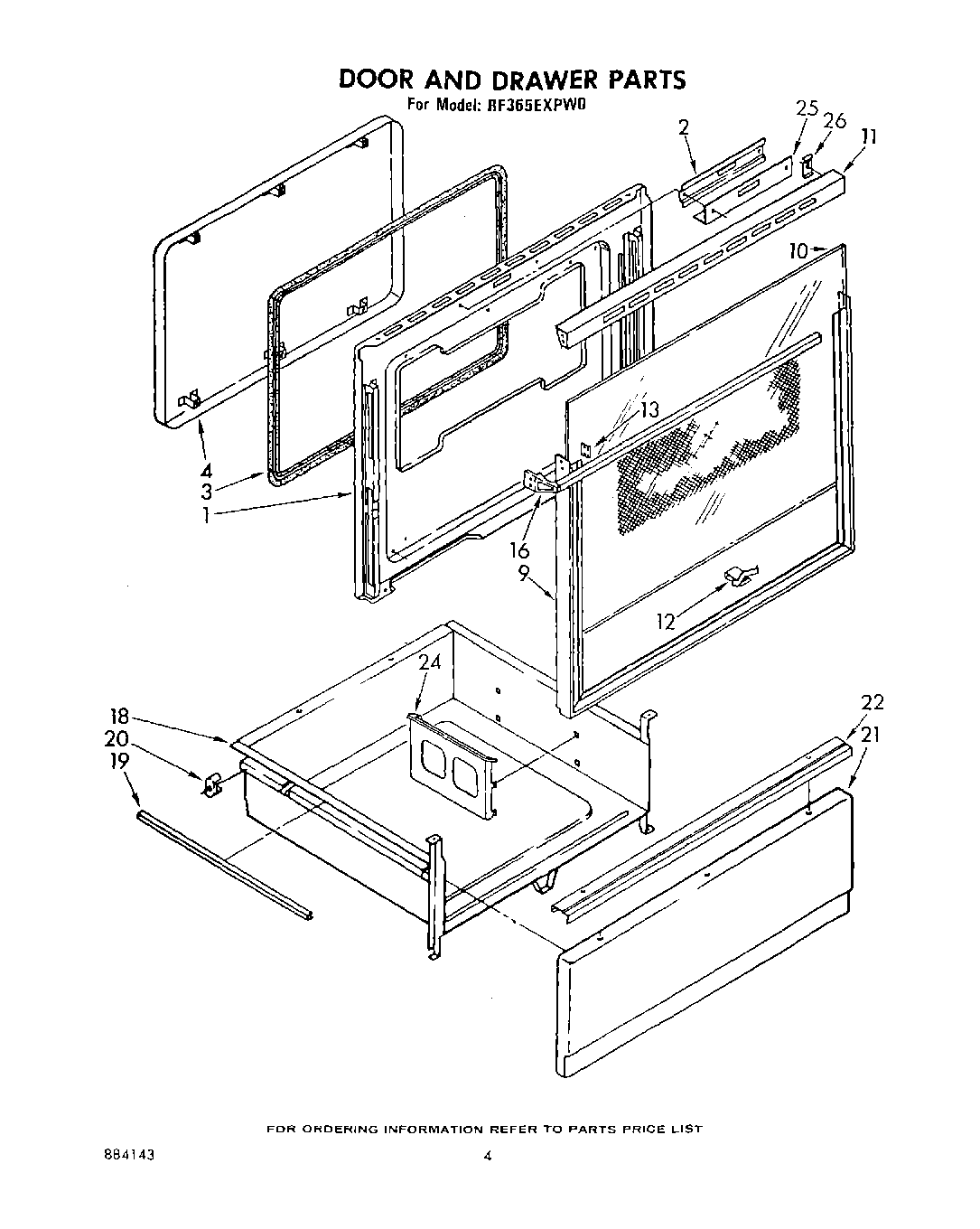

RF365EXPW0 04 – DOOR AND DRAWER
Products
Position
Product
1
Screw (3)
1
Liner, Door
2
Channel, Latch
2
Screw (2)
3
Seal, Fiberglass
4
Panel, Inner
9
frame, door 30“
10
Glass, Outer
11
Top, Door Frame
11
WP90296 Whirlpool Clip
12
clip, glass (10)
13
screw (3)
16
WP355515 Whirlpool Screw
16
Handle, Oven Door
18
Drawer, Utility
19
Protector, Drawer (2)
20
Glide, Rear (2)
20
Screw, 10A x 1/2 (2) (Black)
21
Panel, Drawer (Platinum)
21
Panel, Drawer (Toast)
21
Panel, Drawer (Almond)
21
Panel Drawer (White)
21
WP488787 Whirlpool Refrigerator Screw
22
Handle, Drawer
22
WP488627 Whirlpool Refrigerator Screw
24
Rack, Literature
25
Shield, Insulation
26
hold down, glass (2)
←
