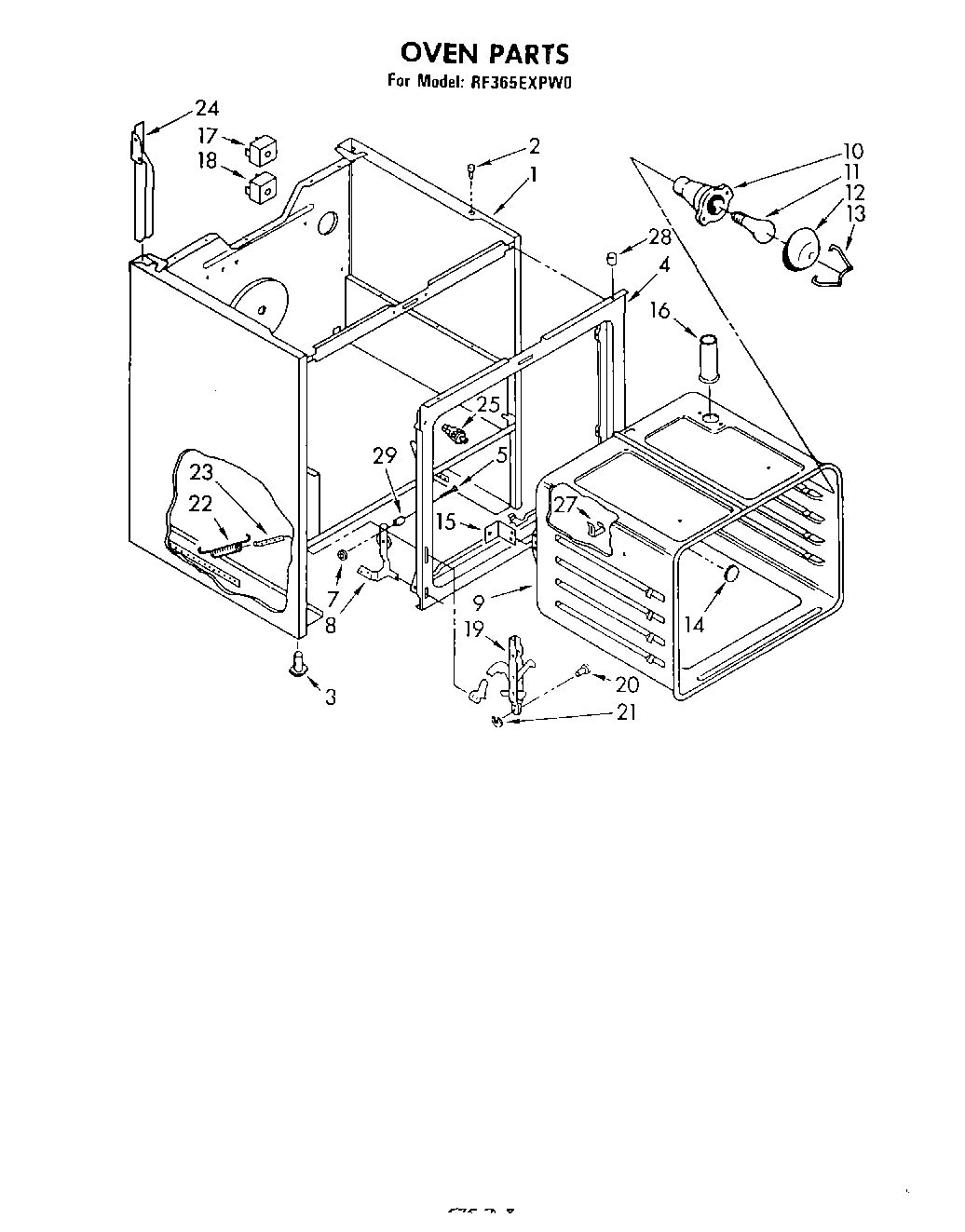

RF365EXPW0 06 – SECTION

RF365EXPW0 06 – SECTION

Written by

in

RF365EXPW0 06 – SECTION

Products

PositionProduct
1Main Chassis (White)
1Main Chassis (Toast)
1Main Chassis (Platinum)
1Main Chassis (Almond)
2238614 Whirlpool Bumper Hinge
3WPW10058460 Whirlpool Appliance Levelling Leg
4Frame, Front
5Pin, Hinge Ear (2)
7Pushnut (2)
8Hinge (L.H.)
8Hinge (R.H.)
9Oven (30“ Pyro)
9Screw (3)
10Screw (10-12 x .875)
10Socket, Oven Light
11RANGE ONLY 40W 120V APPL BULB
12Cover, Light
13Retainer, Light
14Plug Button
15Bracket, Oven (Mounting)
16Vent, Oven
16Screw, 10A x 1/2 (2) (Black)
17Switch, Broil
18Switch, Bake
19Channel, Arm (2)
20WP307986 Whirlpool Hinge Pin
21Retainer Ring (2)
22Spring, Oven Door (2)
23WP308125 Whirlpool Microwave Range/Cooktop Anchor
24Wire Cover
24SCREW
24Wire Cover-Controls (Right)
25Switch, Door
2798005642 Whirlpool Clip
28locator, cooktop
28Screw, 8-32 x 5/16 (2)
29Snubber, Door (2)
