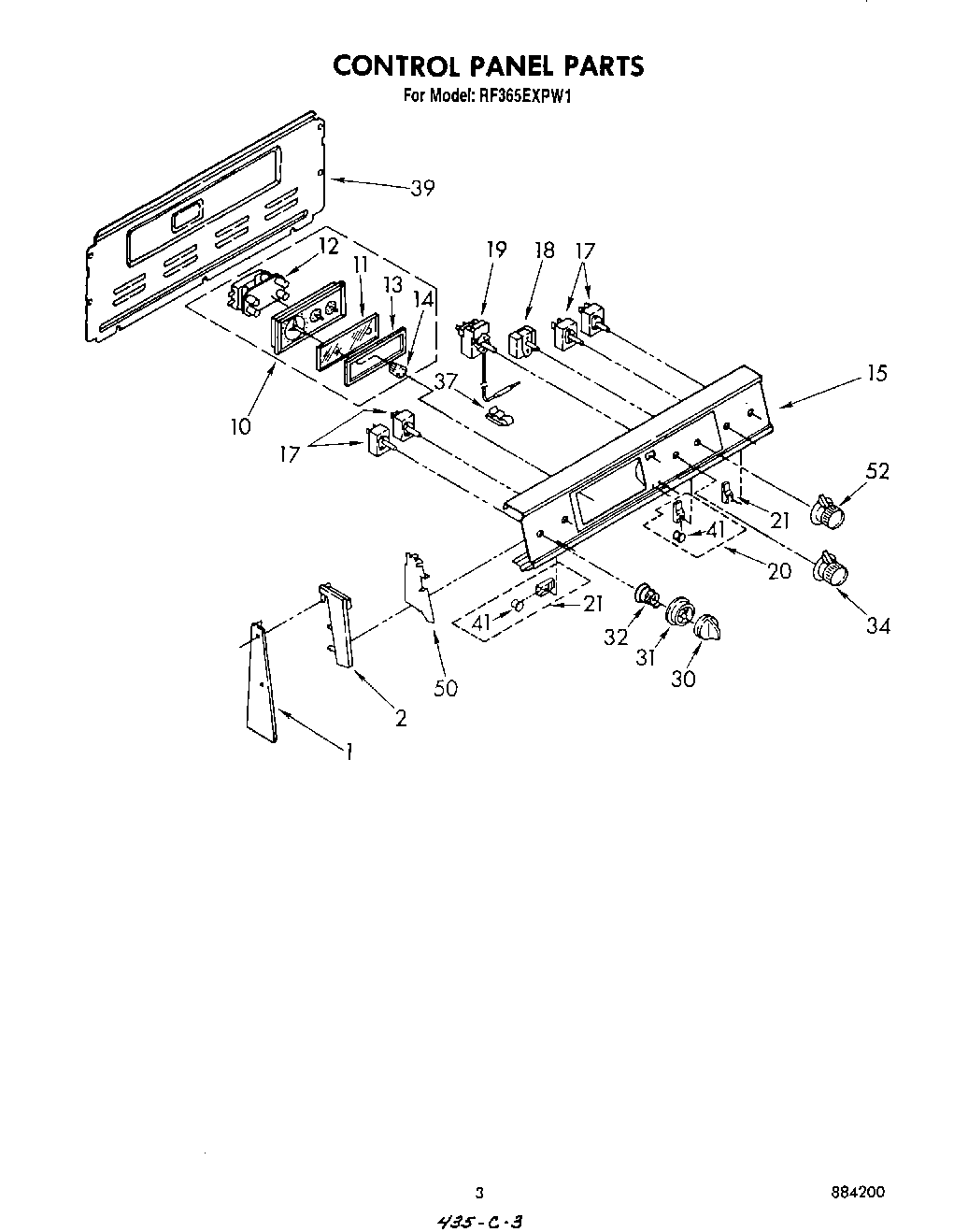

RF365EXPW1 03 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	End Trim L.H.
1	Washer
2	End Cap R.H.
2	End Cap L.H.
2	Screw,
10	Speed Nut
11	Glass, Timer
12	Motor, Timer
13	Bezel, Timer
14	Knob, Timer (3)
15	Panel, Control
15	Washer
17	W10900107 Whirlpool Oven Surface Element Switch
18	Switch, Selector
18	WP486579 Whirlpool Air Conditioner Screw
19	Thermostat, Oven Pyro
19	WP313808 Whirlpool Screw
20	Light, Indicator (250V)
21	Light, Indicator (Surface Unit (2))
30	WP307458 Whirlpool Knob
31	W11194997 Whirlpool Knob Bezel
32	Spring, Bezel (4)
34	Knob, Thermostat
37	Clip, Tube
39	Harness-Conduit Asm.
39	SCREW
41	Lens, Amber
50	Shield (2)
50	WP965173 Whirlpool Dishwasher Screw
52	Knob, Selector
52	Screw
52	WP688805 Whirlpool Spring Clip
