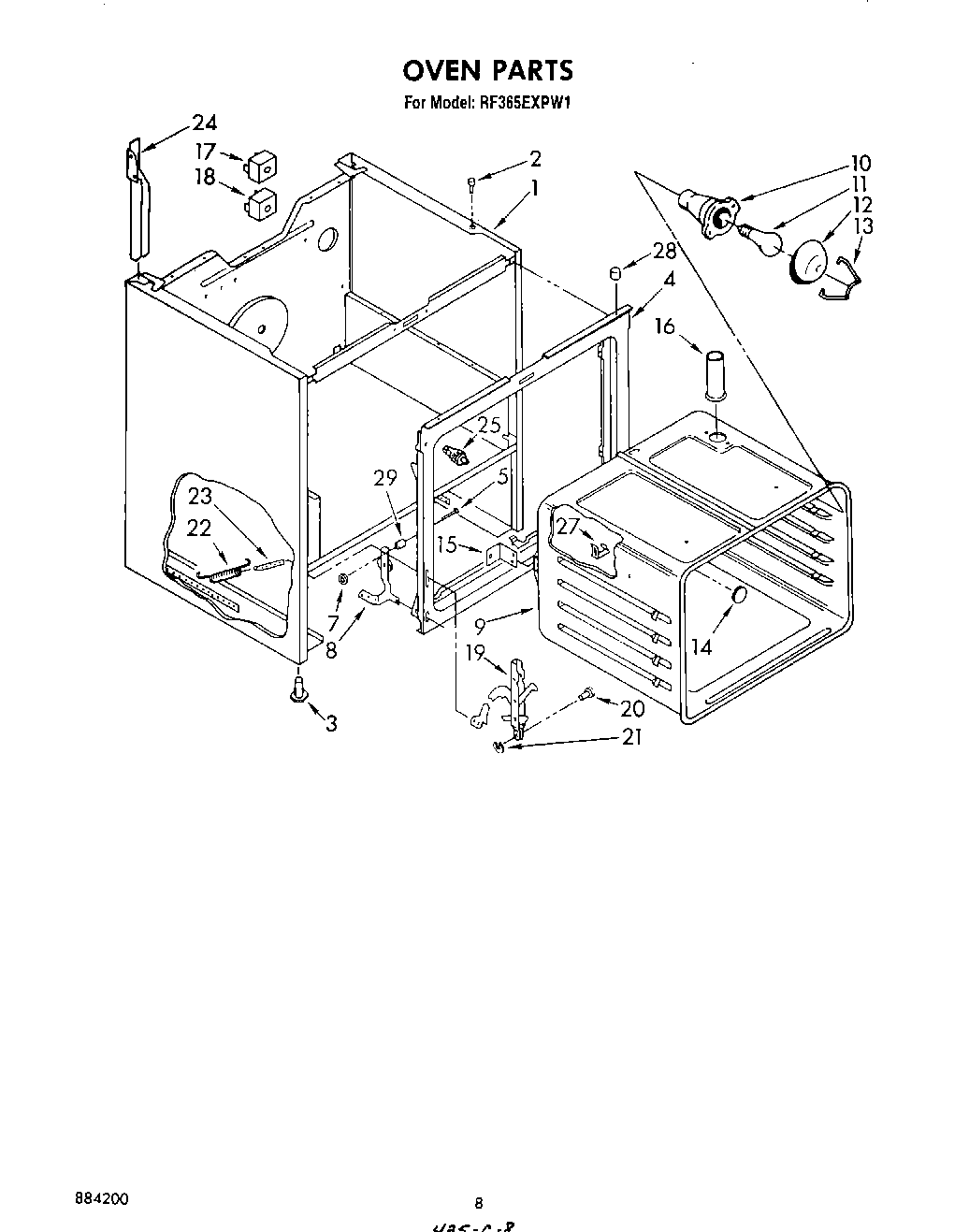

RF365EXPW1 06 – SECTION

Products

Position	Product
	Screw (10-12 x .875)
1	Main Chassis (White)
1	Main Chassis (Almond)
1	Main Chassis (Platinum)
1	Main Chassis (Toast)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	Oven (30“ Pyro)
9	Screw (3)
10	Socket, Oven Light
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Plug Button
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	Vent, Oven
17	Switch, Broil
18	Switch, Bake
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover
24	SCREW
24	Wire Cover-Controls (Right)
25	Switch, Door
27	98005642 Whirlpool Clip
28	locator, cooktop
28	Screw, 8-32 x 5/16 (2)
29	Snubber, Door (2)
