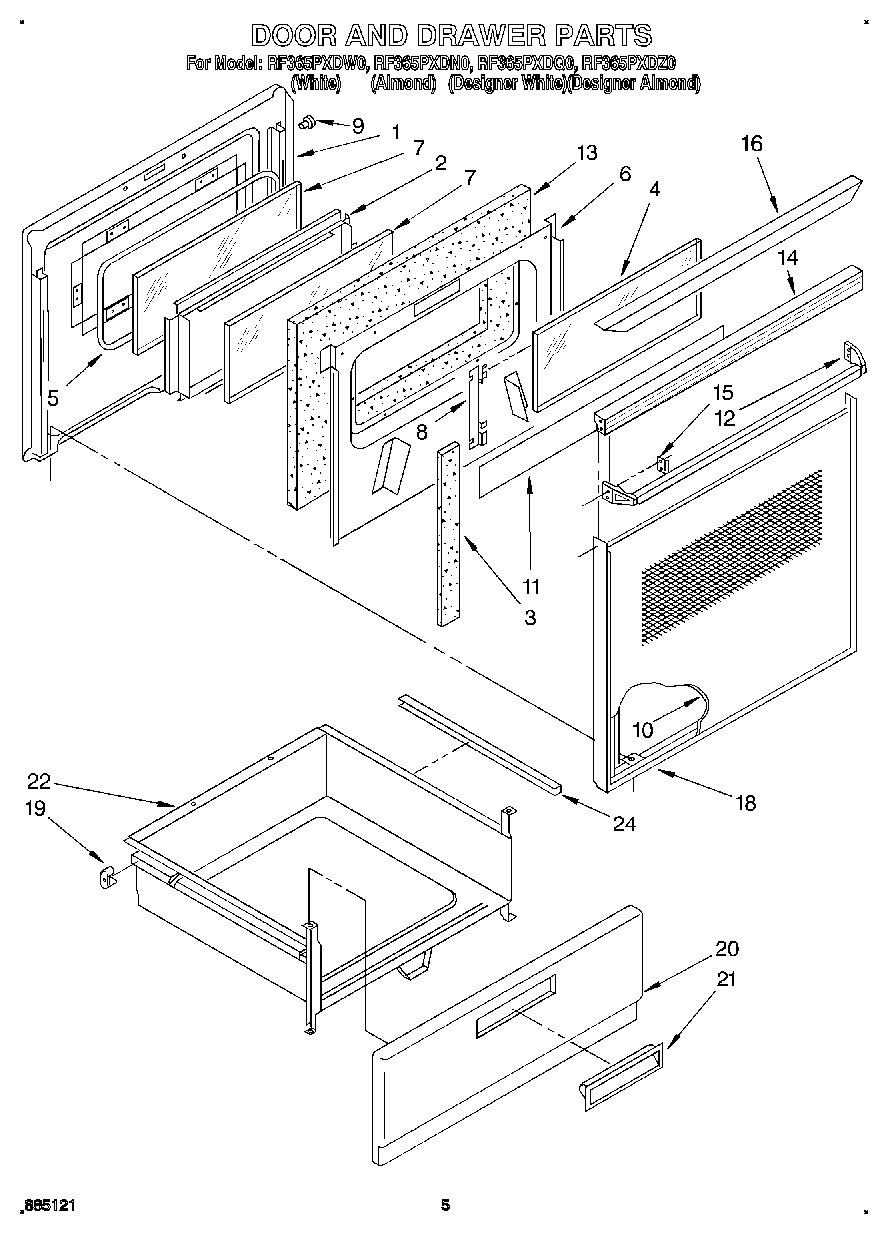

RF365PXDQ0 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Screw
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Screw
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass Panel, Outer (White)
10	Glass Panel, Outer (Black)
10	Glass Panel, Outer (Almond)
11	Foil, Door
12	Handle, Door (Almond)
12	WP999367 Whirlpool Refrigerator Screw
12	Handle, Door (Black)
12	Handle, Door (White)
13	Insulation, Door
14	Top, Door Frame (Designer Almond)
14	Top, Door Frame (Black)
14	Top, Door Frame (Designer White)
15	Clip, Mtg (2)
16	Cap, Top (Designer White)
16	Cap, Top (Designer Almond)
16	Top, Door Frame (Screw (2))
16	Top, Door Frame (Screw (2))
18	Handle, Door (Screw)
18	Frame, Door (Almond)
18	Screw
18	Back Splash (Screw (4) 10AB x 1/2“)
18	Frame, Door (White)
18	Handle, Door (Screw (4))
18	Frame, Door (Screw (4))
18	Frame, Door (Black)
19	Glide, Rear (2)
20	Panel, Drawer (White)
20	Panel, Drawer (Almond)
20	WP488627 Whirlpool Refrigerator Screw
21	Handle, Snap-In (White)
21	Handle, Snap-In (Almond)
22	Drawer, Utility
24	Protector, Drawer (2)
