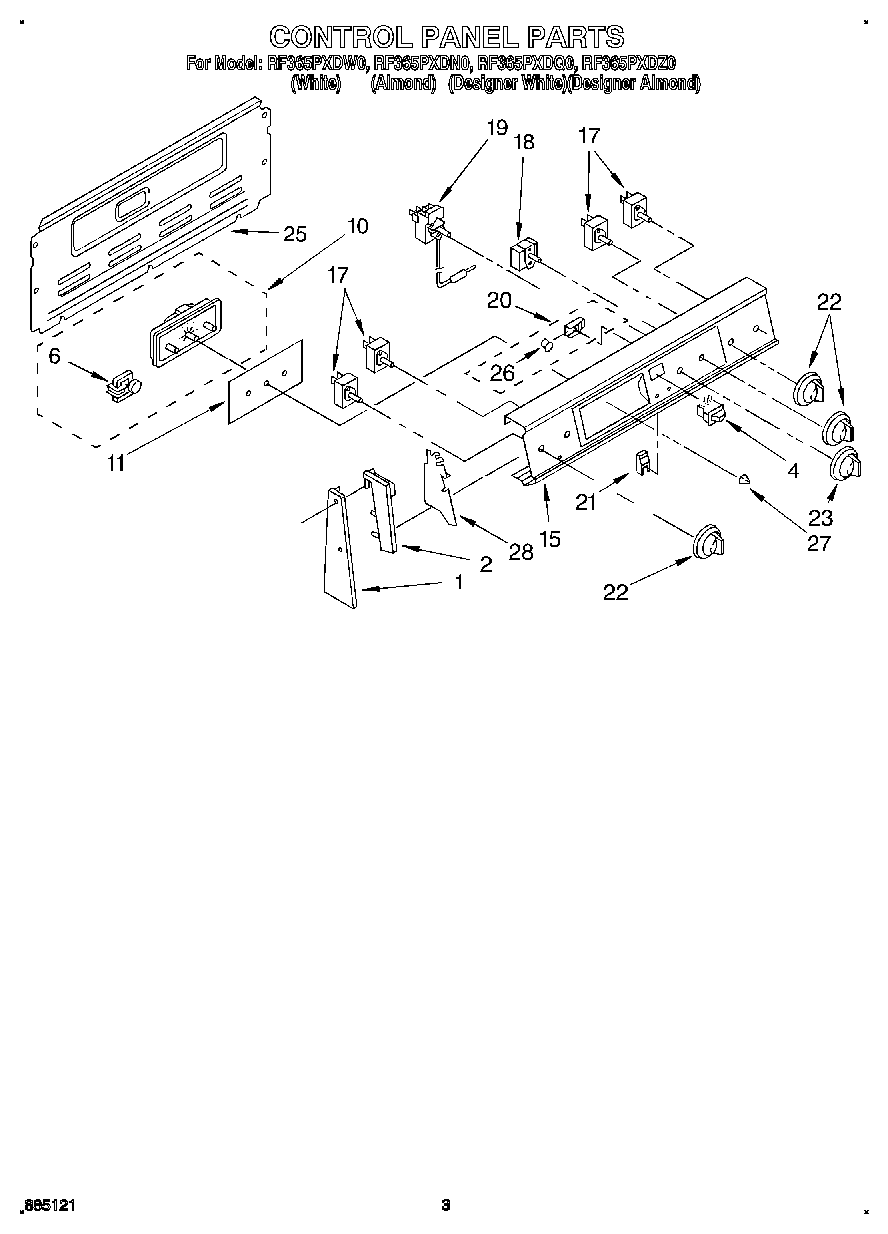

RF365PXDW0 02 – CONTROL PANEL

Products

Position	Product
1	End Trim R.H. (Designer Almond)
1	End Trim (LH, Designer Almond)
1	End Trim R.H. (Black)
1	Panel, Control (Almond)
1	Panel, Control (White)
1	End Trim (LH, Black)
1	End Trim R.H. (Designer White)
1	Panel, Control (Screw, 8-18 x 5/8 (4))
1	End Trim (LH, Designer White)
2	End Cap, R.H. (Black)
2	End Cap L.H. (Black)
2	End Cap L.H. (Designer White)
2	End Cap R.H. (Designer White)
2	End Cap R.H. (Designer Almond)
2	End Cap L.H. (Designer Almond)
4	Switch, Rocker
4	Switch, Rocker (Designer Almond)
4	Switch, Rocker (White)
6	Motor, Timer
10	Designer Almond (Includes No.6)
10	Timer, Control
10	Control, Oven Assembly
11	Glass, Timer
15	Panel, Control (Black)
15	Panel, Control (Designer Almond)
15	Panel, Control (Designer White)
17	WP3148952 Whirlpool Oven Infinite Switch
17	WP3149400 Whirlpool Oven Infinite Switch
18	Switch, Selector (5 Position)
18	Screw, 8-32 x 3/16 (2)
19	WP313808 Whirlpool Screw
19	Thermostat, 0ven
20	Light, Indicator (250V)
21	Indicator Light (Surface Unit On)
22	WP3196232 Whirlpool Knob
22	WPL 3188723
22	WP3196231 Whirlpool Knob
23	Knob, Thermostat (Designer Almond)
23	Knob, Thermostat (Designer White)
23	Knob, Thermostat (Black)
25	SCREW
25	Rear Cover Contr
26	Lens, Amber
27	Designer Almond
27	WP3169181 Whirlpool Knob
28	WP965173 Whirlpool Dishwasher Screw
28	Shield (2)
