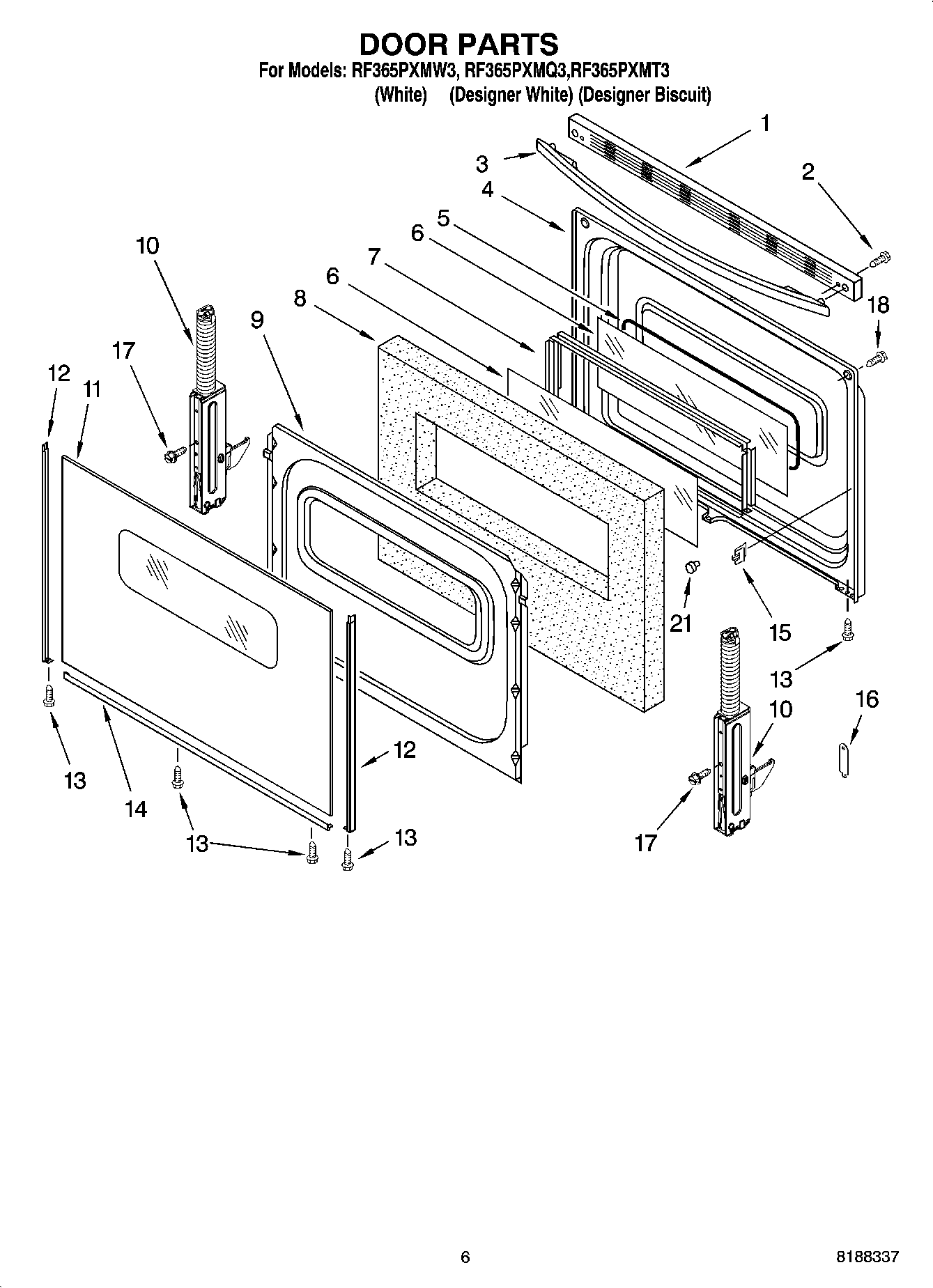

RF365PXMQ3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF365PXMQ3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF365PXMQ3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI122769A
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Clip, Ground Wire
Grease
8212471 Whirlpool Oven Paint
3184020 Whirlpool Oven Wire
WPL ARI122768A
WPL ARI122767A
WPL ARI122766A
WPL ARI122765A
WPL ARI122764A
WPL 9758173
Harness, Wire (Pyro Rocker)
W11396691 Whirlpool Element Receptacle and Wire Kit
WPL ARI122770A
WP3196154 Whirlpool Screw Assembly
WP3195996 Whirlpool Pan Grid
WP3196076 Whirlpool Broil Pan
Wire, 25` Roll (Red 14 Ga.)
4392899 Whirlpool Biscuit Touch-Up Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL 799832
4392901 Whirlpool Biscuit Spray Paint
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
814381 Whirlpool Pin
350942 Whirlpool Spray Paint
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
511873 Whirlpool Refrigerator Paint
W11447673 Whirlpool Range Tip Anchor
Almond (Uncut)
1Trim, Top (Black)
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Biscuit)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
3Handle, Door (Biscuit)
3WPW10202216 Whirlpool Door Handle
49761340 Whirlpool Oven Door Liner
58522415 Whirlpool Oven Wind Gasket
6WP9758164 Whirlpool Door Glass
7Frame, Glass
8WPW10278991 Whirlpool Insulation
99761499 Whirlpool Oven Retainer
10W10347466 Whirlpool Door Hinge
11Glass, Door (Biscuit)
11WP9762477 Whirlpool Glass Door
11WP9762476 Whirlpool Door Glass
12WP8523167 Whirlpool Door Trim Assembly
12WP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12W10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523166 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP8523177 Whirlpool Door Trim Assembly
14WP8523175 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
15Clip, Glass (4)
169761517 Whirlpool Oven Clip Assembly
17WPW10031790 Whirlpool Screw
18W10777162 Whirlpool Screw
21238614 Whirlpool Bumper Hinge
