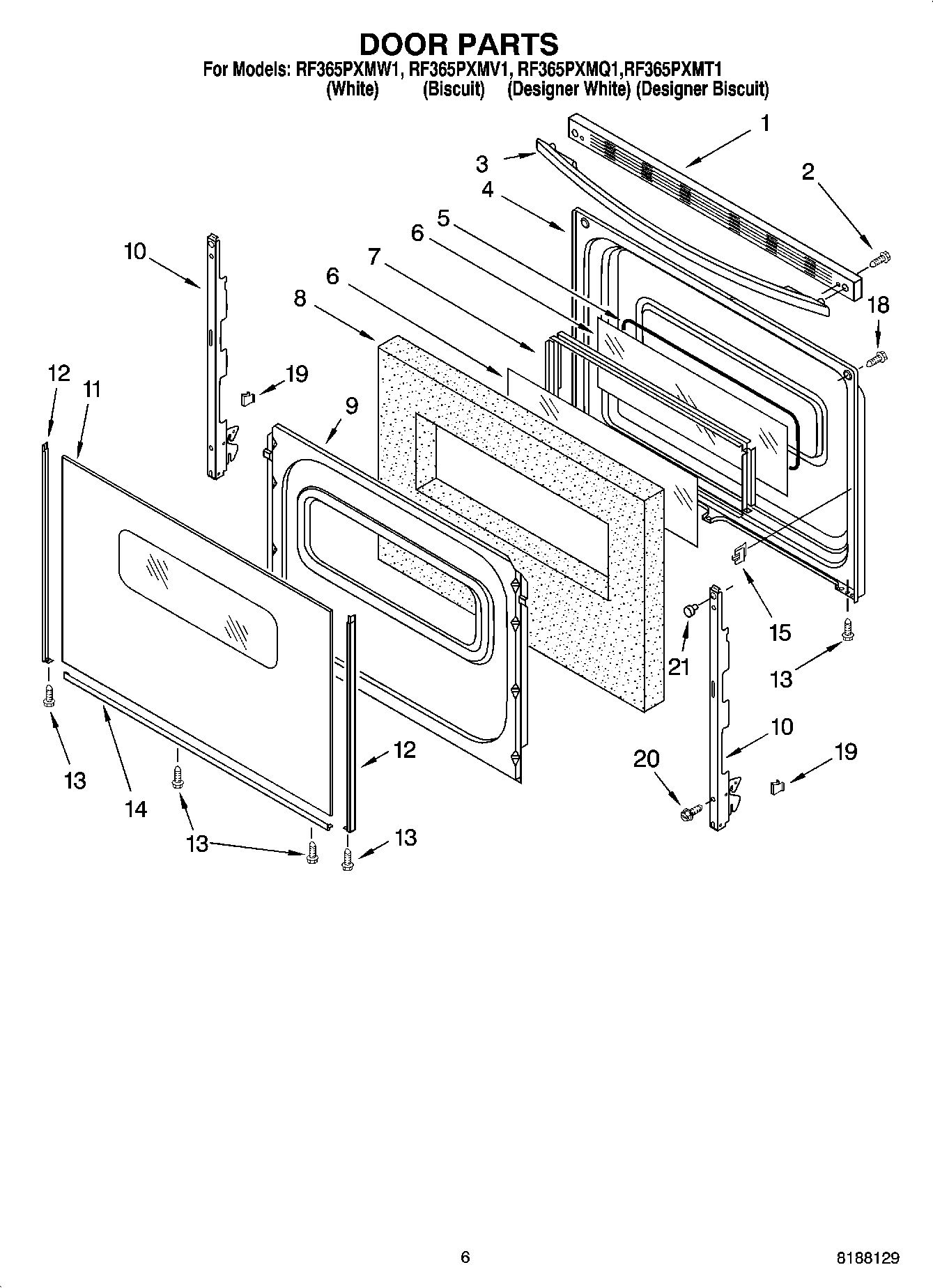

RF365PXMT1 05 – DOOR PARTS, OPTIONAL PARTSadmin2025-04-26T12:49:41+00:00RF365PXMT1 05 – DOOR PARTS, OPTIONAL PARTS
Products
| Position | Product |
|---|
| WPL ARI122788A |
| W11244557 Whirlpool Screw |
| Wire (14 Ga. 200 c Brown) |
| Wire (12 Ga. 150 c Black) |
| Harness, Wire (Pyro Rocker) |
| Wire (14 Ga. 150 c Orange) |
| Wire (14 Ga. 150 c Green) |
| Wire (14 Ga. 150 c Brown) |
| Wire (14 Ga. 150 c Blue) |
| 242831 Whirlpool Oven Wire |
| Clip, Ground Wire |
| Wire (14 Ga. 150 c Yellow) |
| 8212471 Whirlpool Oven Paint |
| 3184020 Whirlpool Oven Wire |
| WP3195996 Whirlpool Pan Grid |
| WPL ARI122787A |
| WPL ARI122786A |
| WPL ARI122785A |
| WPL ARI122784A |
| WPL ARI122783A |
| WPL ARI122782A |
| WPL 9758173 |
| W11396691 Whirlpool Element Receptacle and Wire Kit |
| WPL ARI122789A |
| WP3196154 Whirlpool Screw Assembly |
| Grease |
| WP3196076 Whirlpool Broil Pan |
| 285006 Whirlpool Spray |
| Wire, 25` Roll (Red 14 Ga.) |
| FOIL, ALUMINUM OVEN (18`` X 25 ) |
| WPW10208653 Whirlpool Insulation |
| WPL 799832 |
| PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) |
| 511873 Whirlpool Refrigerator Paint |
| 4392899 Whirlpool Biscuit Touch-Up Paint |
| 4392901 Whirlpool Biscuit Spray Paint |
| W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz) |
| 814381 Whirlpool Pin |
| 350942 Whirlpool Spray Paint |
| 799344 Whirlpool Refrigerator Paint |
| WP72107 Whirlpool Touchup |
| 350956 Whirlpool Spray Assembly |
| W11447673 Whirlpool Range Tip Anchor |
| 350930 Whirlpool White Spray Paint |
| Almond (Uncut) |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 1 | Trim, Top (Black) |
| 1 | WPW10016370 Whirlpool Door Trim |
| 1 | Trim, Top (Biscuit) |
| 2 | WP3196164 Whirlpool Screw |
| 3 | WPW10202217 Whirlpool Door Handle |
| 3 | Handle, Door (Biscuit) |
| 3 | WPW10202216 Whirlpool Door Handle |
| 4 | Liner, Door |
| 5 | 8522415 Whirlpool Oven Wind Gasket |
| 6 | WP9758164 Whirlpool Door Glass |
| 7 | Frame, Glass |
| 8 | WPW10278991 Whirlpool Insulation |
| 9 | 9761499 Whirlpool Oven Retainer |
| 10 | WP8053807 Whirlpool Oven Door Hinge |
| 11 | Glass, Door (Biscuit) |
| 11 | WP9762476 Whirlpool Door Glass |
| 11 | WP9762477 Whirlpool Glass Door |
| 12 | WP8523167 Whirlpool Door Trim Assembly |
| 12 | WP8523172 Whirlpool Left Door Trim |
| 12 | WP8523173 Whirlpool Door Trim |
| 12 | W10761014 Whirlpool Right Door Trim |
| 12 | W10761018 Whirlpool Dishwasher Left Door Trim |
| 12 | WP8523166 Whirlpool Door Trim |
| 13 | W10491985 Whirlpool Screw |
| 14 | WP8523175 Whirlpool Door Trim Assembly |
| 14 | WP8523178 Whirlpool Door Trim |
| 14 | WP8523177 Whirlpool Door Trim Assembly |
| 15 | Clip, Glass (4) |
| 18 | WP179051 Whirlpool Screw |
| 19 | WP3196925 Whirlpool Clip Assembly |
| 20 | WP3196175 Whirlpool Screw |
| 21 | 238614 Whirlpool Bumper Hinge |
