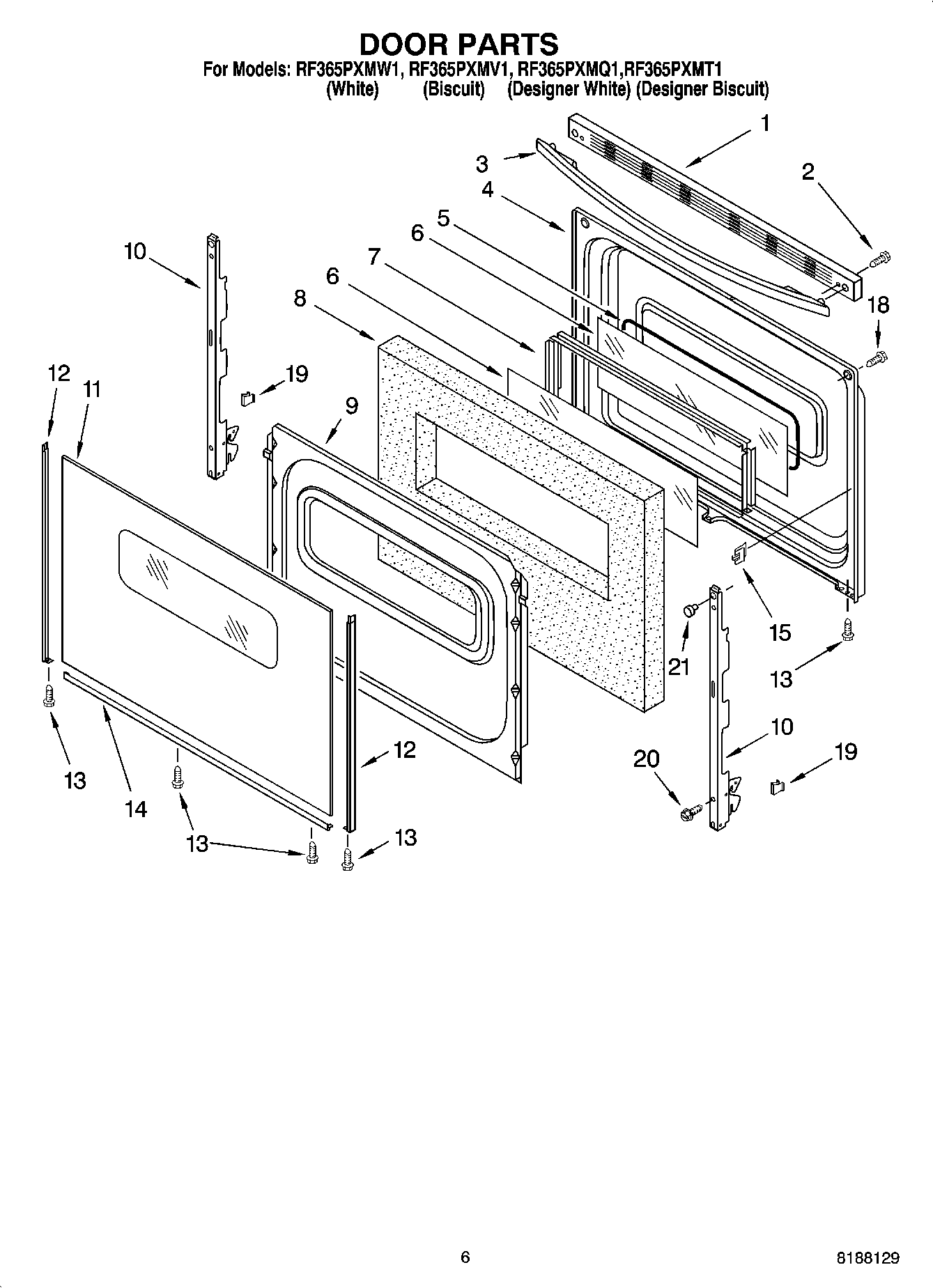

RF365PXMW1 05 – DOOR PARTS, OPTIONAL PARTS

RF365PXMW1 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

RF365PXMW1 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI122855A
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Harness, Wire (Pyro Rocker)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Clip, Ground Wire
	Wire (14 Ga. 150 c Yellow)
	8212471 Whirlpool Oven Paint
	3184020 Whirlpool Oven Wire
	WP3195996 Whirlpool Pan Grid
	WPL ARI122854A
	WPL ARI122853A
	WPL ARI122852A
	WPL ARI122851A
	WPL ARI122850A
	WPL ARI122849A
	WPL 9758173
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL ARI122856A
	WP3196154 Whirlpool Screw Assembly
	Grease
	WP3196076 Whirlpool Broil Pan
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	814381 Whirlpool Pin
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	350956 Whirlpool Spray Assembly
	W11447673 Whirlpool Range Tip Anchor
	350930 Whirlpool White Spray Paint
	Almond (Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Biscuit)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	Handle, Door (Biscuit)
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	8522415 Whirlpool Oven Wind Gasket
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
8	WPW10278991 Whirlpool Insulation
9	9761499 Whirlpool Oven Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	Glass, Door (Biscuit)
11	WP9762476 Whirlpool Door Glass
11	WP9762477 Whirlpool Glass Door
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523172 Whirlpool Left Door Trim
12	WP8523173 Whirlpool Door Trim
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523166 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
14	WP8523178 Whirlpool Door Trim
14	WP8523177 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
21	238614 Whirlpool Bumper Hinge
