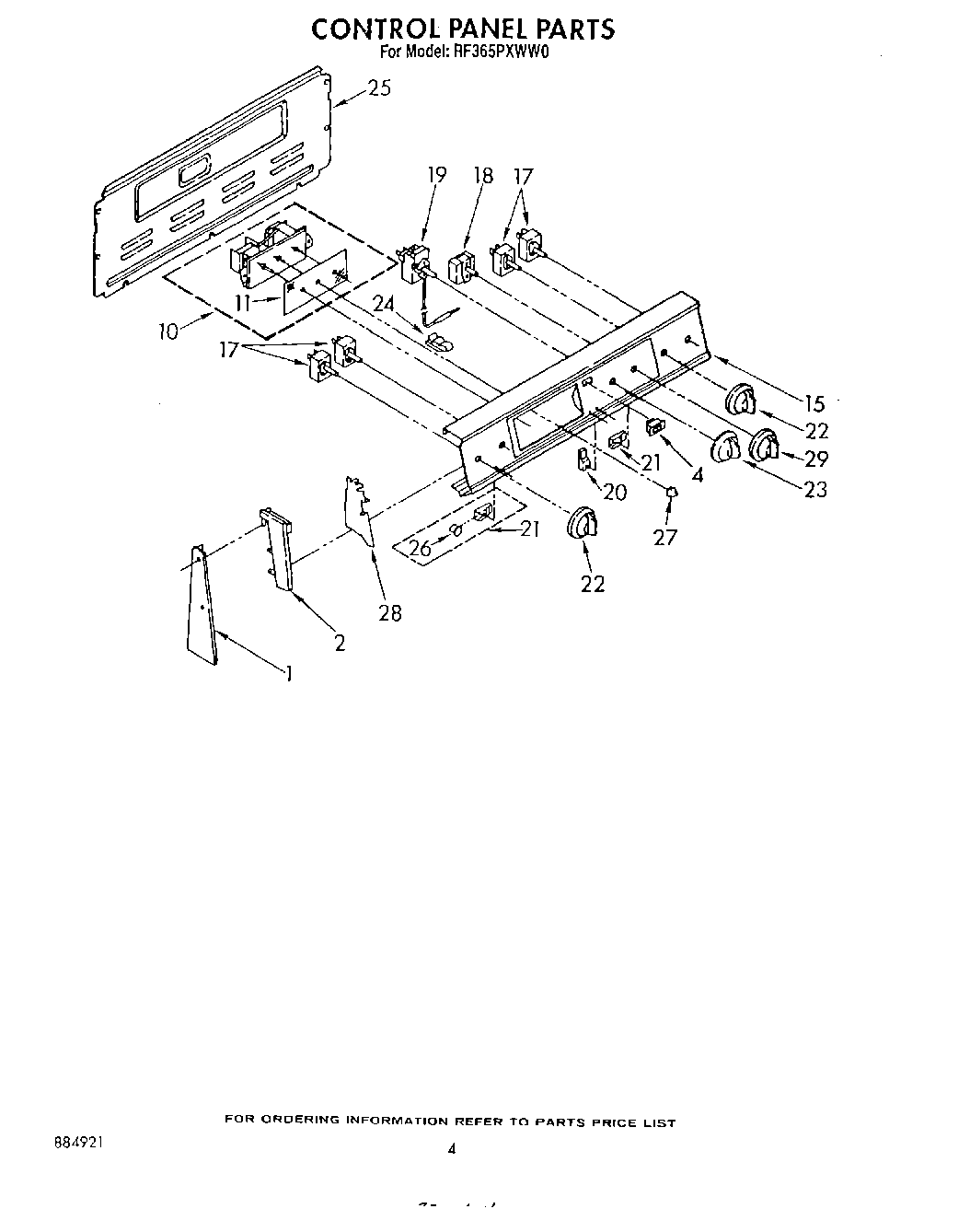

RF365PXWW0 03 – CONTROL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Washer
1	End Trim L.H.
2	Screw,
2	End Cap R.H.
2	End Cap L.H.
4	WP4314961 Whirlpool Lite Switch
10	Timer, Clock (Includes No.6)
11	Glass, Timer
15	Panel, Control
15	Washer
17	WP3149400 Whirlpool Oven Infinite Switch
17	WP486579 Whirlpool Air Conditioner Screw
17	WP3148952 Whirlpool Oven Infinite Switch
18	Switch, Selector
19	WP313808 Whirlpool Screw
19	Thermostat, Oven
20	Light, Indicator (250V)
21	Light, Indicator (Surface Unit On)
22	WP3149983 Whirlpool Knob
23	Screw
23	Knob, Oven Temp.
24	Clip, Tube
25	Harness-Conduit Asm.
25	SCREW
26	Lens, Amber
27	Spring (3)
27	WP3169181 Whirlpool Knob
28	WP965173 Whirlpool Dishwasher Screw
28	Shield (2)
29	Knob, Selector
