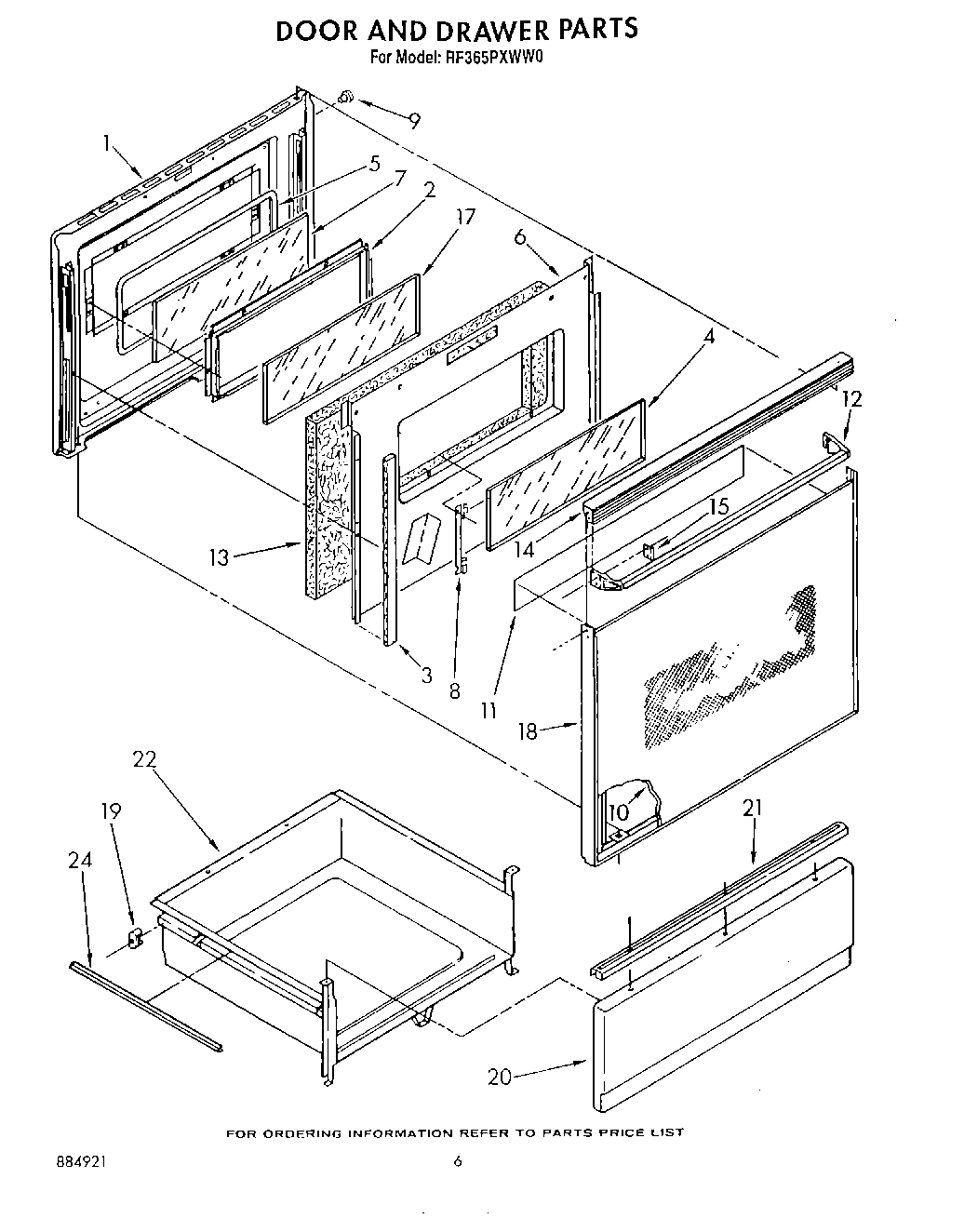

RF365PXWW0 05 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Screw
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door
13	Insulation, Door
14	Top, Door (Black Model)
15	Clip, Mtg (2)
18	Frame, Door
18	Back Splash (Screw (4) 10AB x 1/2“)
18	WP355515 Whirlpool Screw
19	Screw, 10A x 1/2 (2) (Black)
19	Glide, Rear (2)
20	Panel, Drawer (Almond)
20	Panel Drawer (White)
21	WP488627 Whirlpool Refrigerator Screw
21	Handle, Drawer
22	Drawer, Utility
24	Protector, Drawer (2)
