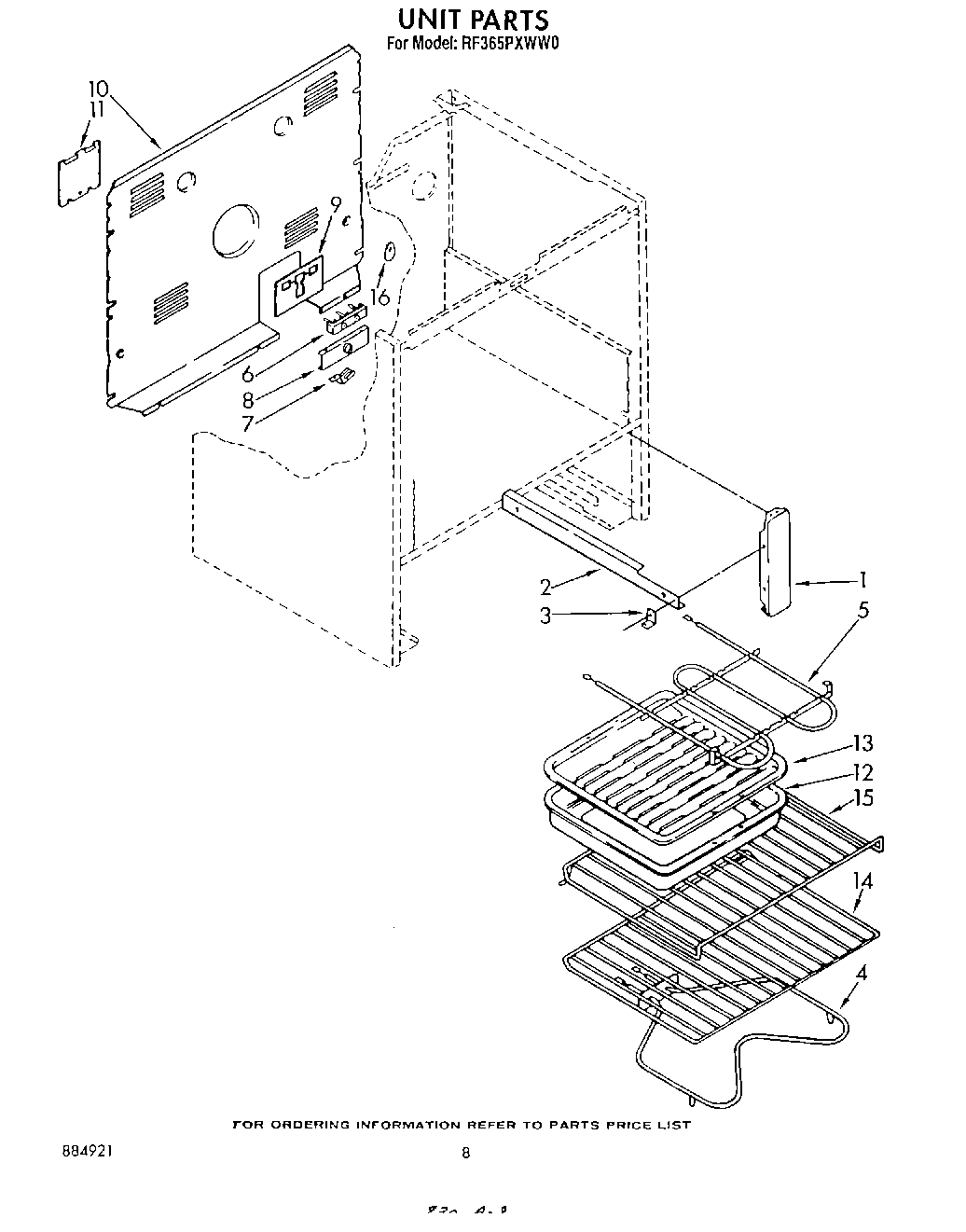

RF365PXWW0 06 – UNIT

RF365PXWW0 06 – UNIT

Written by

in

RF365PXWW0 06 – UNIT

Products

Position	Product
	511873 Whirlpool Refrigerator Paint
1	Bracket, Mounting (2)
2	Screw, 10-16 x 1/2
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
4	WP312309 Whirlpool Bake Element
5	Unit, Broil (208V)
5	Screw (2)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
9	Barrier, Shield
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
16	350930 Whirlpool White Spray Paint
16	Wire (12 Ga. 150 c Black)
16	Rotisserie Kit (RCK 81)
16	Wire (14 Ga. 150 c Yellow)
16	Wire (14 Ga. 150 c Orange)
16	18 Ga. 80~c Rating (Red)
16	Wire (14 Ga. 200 c Brown)
16	WPL 311982
16	Grease
16	1
16	Enamel, Coffee (1 Qt. Uncut)
16	Enamel, New Avocado (1 Qt. Uncut)
16	Screw, 10A x 1/2 (2) (Black)
16	8212471 Whirlpool Oven Paint
16	Leveler (Thinner) (2oz.)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Brown)
16	WPL 72112
16	Platinum (Uncut)
16	Enamal, Toast (1 Qt. Uncut)
16	Paint, Spray (13 Oz.) (Platinum)
16	Toast
16	Golden Harvest (Uncut)
16	Golden Harvest
16	72113 Whirlpool Touch-Up Paint
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	350942 Whirlpool Spray Paint
16	WPL 799832
16	Wire (14 Ga. 150 c Blue)
16	242831 Whirlpool Oven Wire
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	WPL 310433
16	Paint, Spray 13 Oz. (Avocado)
16	paint, spray 13 oz. (coffee)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	285006 Whirlpool Spray
16	Wire, 25“ Roll (White 14 GA.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	WPW10208653 Whirlpool Insulation
16	350956 Whirlpool Spray Assembly
