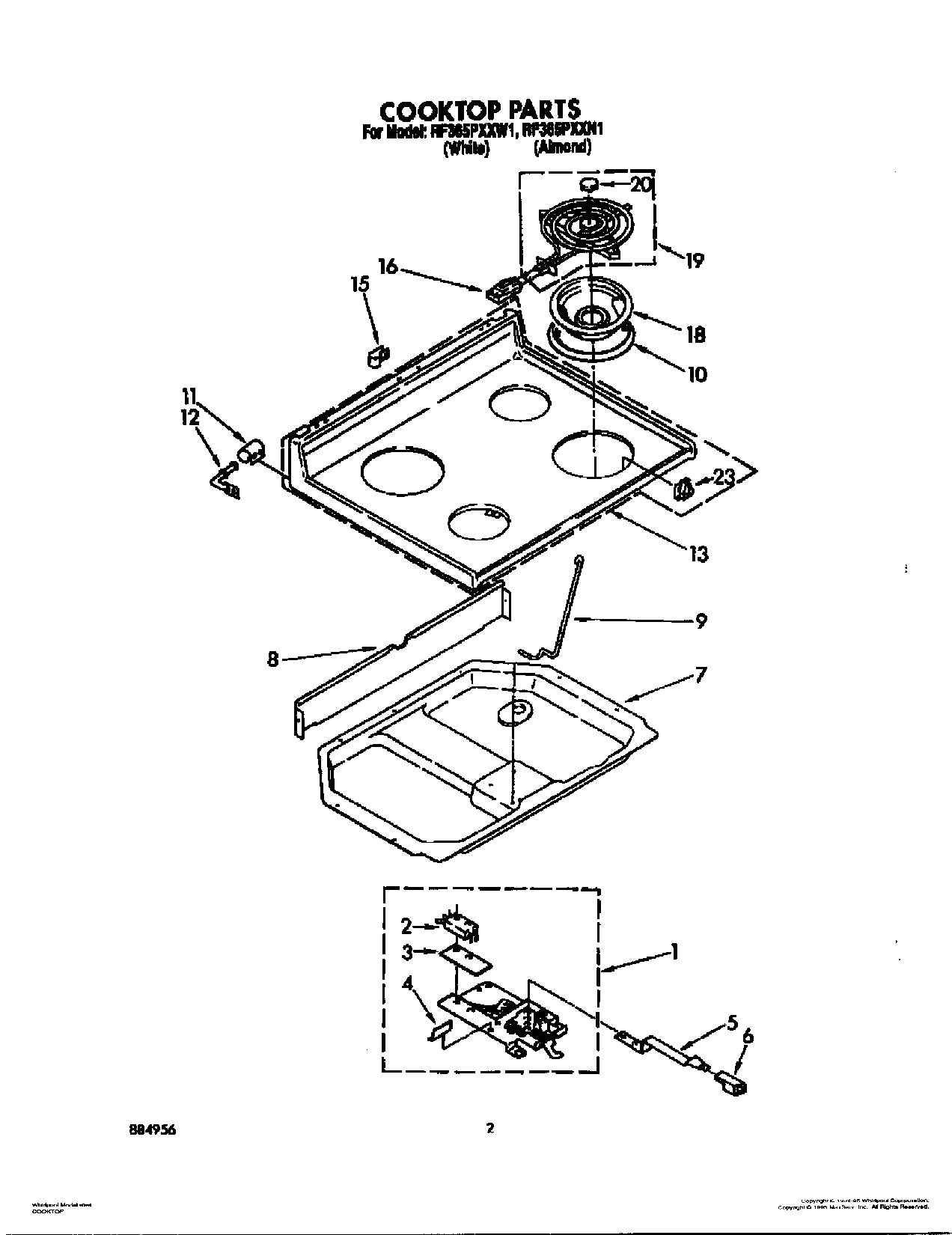

RF365PXXN1 02 – COOKTOP

Products

Position	Product
	Guide, Use & Care
	WPL LIT3149507
	WPL LIT3147395
	WPL LIT3169007
	Repair Parts List
1	Latch & Switch Assembly
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Screw
4	Shield, Latch
5	WP486579 Whirlpool Air Conditioner Screw
5	Handle, Latch
6	Knob, Latch
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
10	W10858781 Whirlpool Trim Ring
10	W10854470 Whirlpool Trim Ring
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Almond)
13	Cooktop (White)
15	SCREW
15	WP308605 Whirlpool Refrigerator Clamp
16	WP4332752 Whirlpool Clip
16	WP313808 Whirlpool Screw
18	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
18	Reflector Pan (6“ (2))
19	WP660533 Whirlpool Oven 8" Surface Element
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
23	Nut (4)
23	WP487887 Whirlpool Refrigerator Screw
23	814103 Whirlpool Clip
