RF365PXXN2 03 – CONTROL PANEL
Written by
in

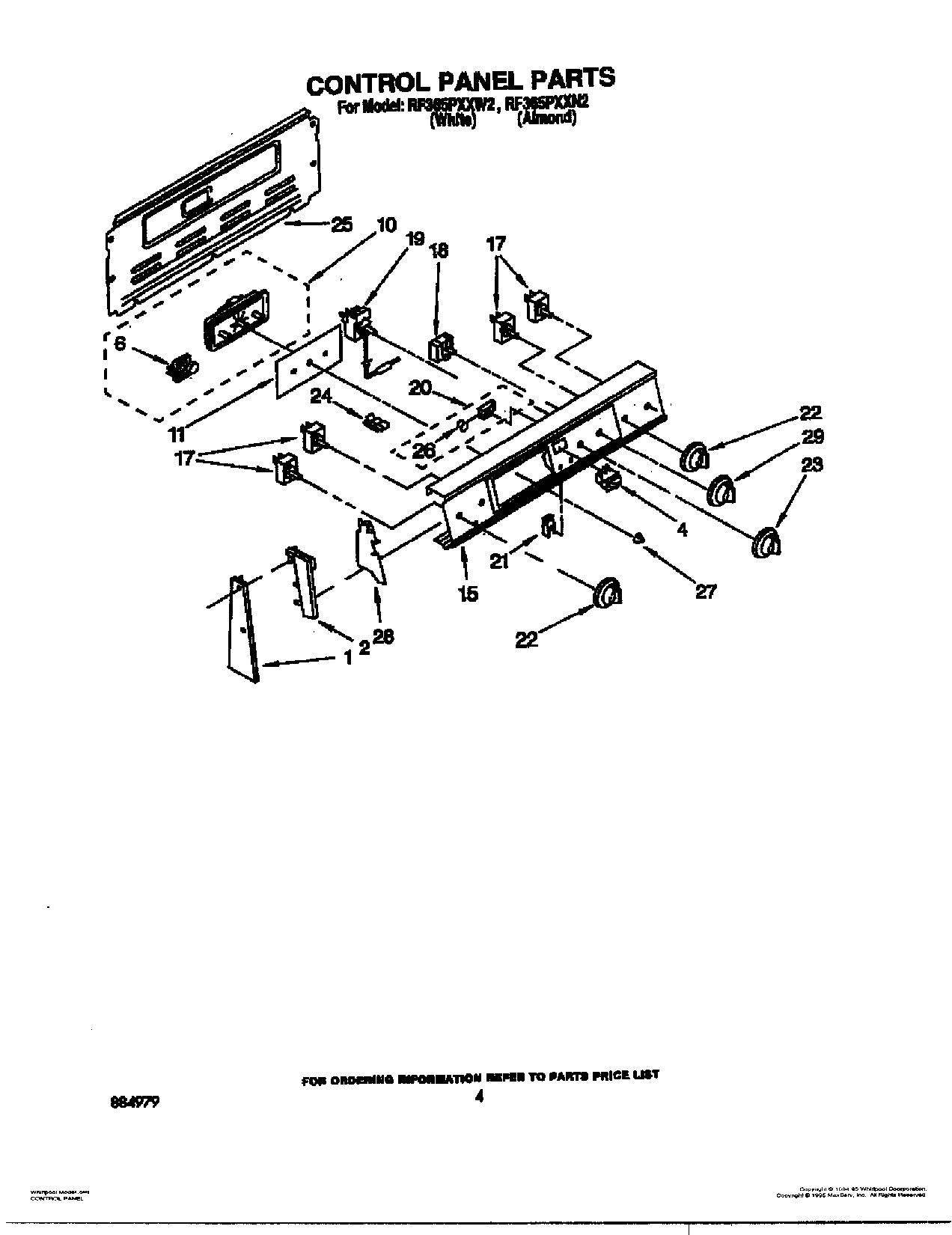

RF365PXXN2 03 – CONTROL PANEL
Products
Position
Product
1
WP3390631 Whirlpool Screw
1
Screw 10-32×7/16“
1
Screw 10-32×1“
2
End Cap L.H.
2
End Cap R.H.
2
Screw,
4
WP4314961 Whirlpool Lite Switch
6
Motor, Timer
10
Timer, Clock (Includes No.6)
11
Glass, Timer
15
Panel, Control
15
Washer
17
WP3149400 Whirlpool Oven Infinite Switch
17
WP486579 Whirlpool Air Conditioner Screw
17
WP3148952 Whirlpool Oven Infinite Switch
18
Switch, Selector
19
Thermostat, Oven
19
WP313808 Whirlpool Screw
20
Light, Indicator (250V)
21
Light, Indicator (Surface Unit On)
22
WP3149983 Whirlpool Knob
23
Knob, Oven Temp.
24
Clip, Tube
25
Harness-Conduit Asm.
25
SCREW
26
Lens, Amber
27
WP3169181 Whirlpool Knob
28
WP965173 Whirlpool Dishwasher Screw
28
Shield (2)
29
Knob, Selector
←
