| Repair Parts List |
| WPL LIT3149507 |
| Instructions, Installation |
| WPL LIT3169007 |
| Use & Care Guide |

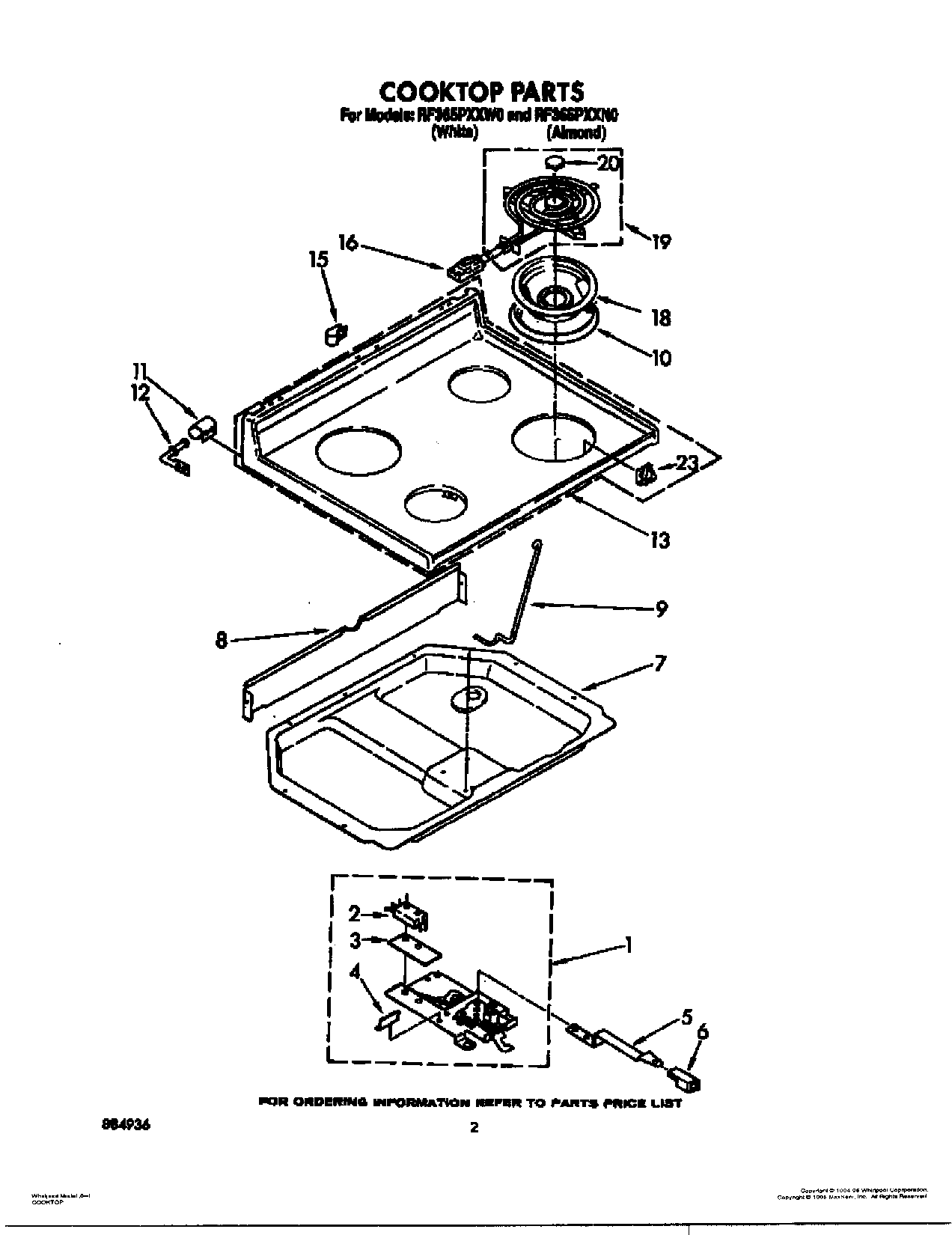

| 1 | Latch & Switch Assembly |
| 2 | Safety Switch |
| 2 | Screw |
| 3 | Insulator, Switch |
| 4 | Screw |
| 4 | Screw |
| 4 | Shield, Latch |
| 5 | WP486579 Whirlpool Air Conditioner Screw |
| 5 | Handle, Latch |
| 6 | Knob, Latch |
| 7 | Box, Burner |
| 7 | WP3390631 Whirlpool Screw |
| 8 | Shield, Wiring |
| 9 | Rod, Cooktop |
| 10 | W10858781 Whirlpool Trim Ring |
| 10 | W10854470 Whirlpool Trim Ring |
| 11 | Bracket, Cooktop (2) |
| 12 | Pin, Cooktop (2) |
| 13 | Cooktop (Almond) |
| 13 | Cooktop (White) |
| 15 | SCREW |
| 15 | WP308605 Whirlpool Refrigerator Clamp |
| 16 | WP4332752 Whirlpool Clip |
| 16 | WP313808 Whirlpool Screw |
| 18 | W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set |
| 18 | Reflector Pan (6`` (2)) |
| 19 | WP660533 Whirlpool Oven 8" Surface Element |
| 19 | WP660532 Whirlpool Oven Surface Element |
| 20 | Medallion (4) |
| 23 | Nut (4) |
| 23 | WP487887 Whirlpool Refrigerator Screw |
| 23 | 814103 Whirlpool Clip |
