RF365PXYN1 05 – UNIT, OPTIONAL

RF365PXYN1 05 – UNIT, OPTIONAL

Written by

in

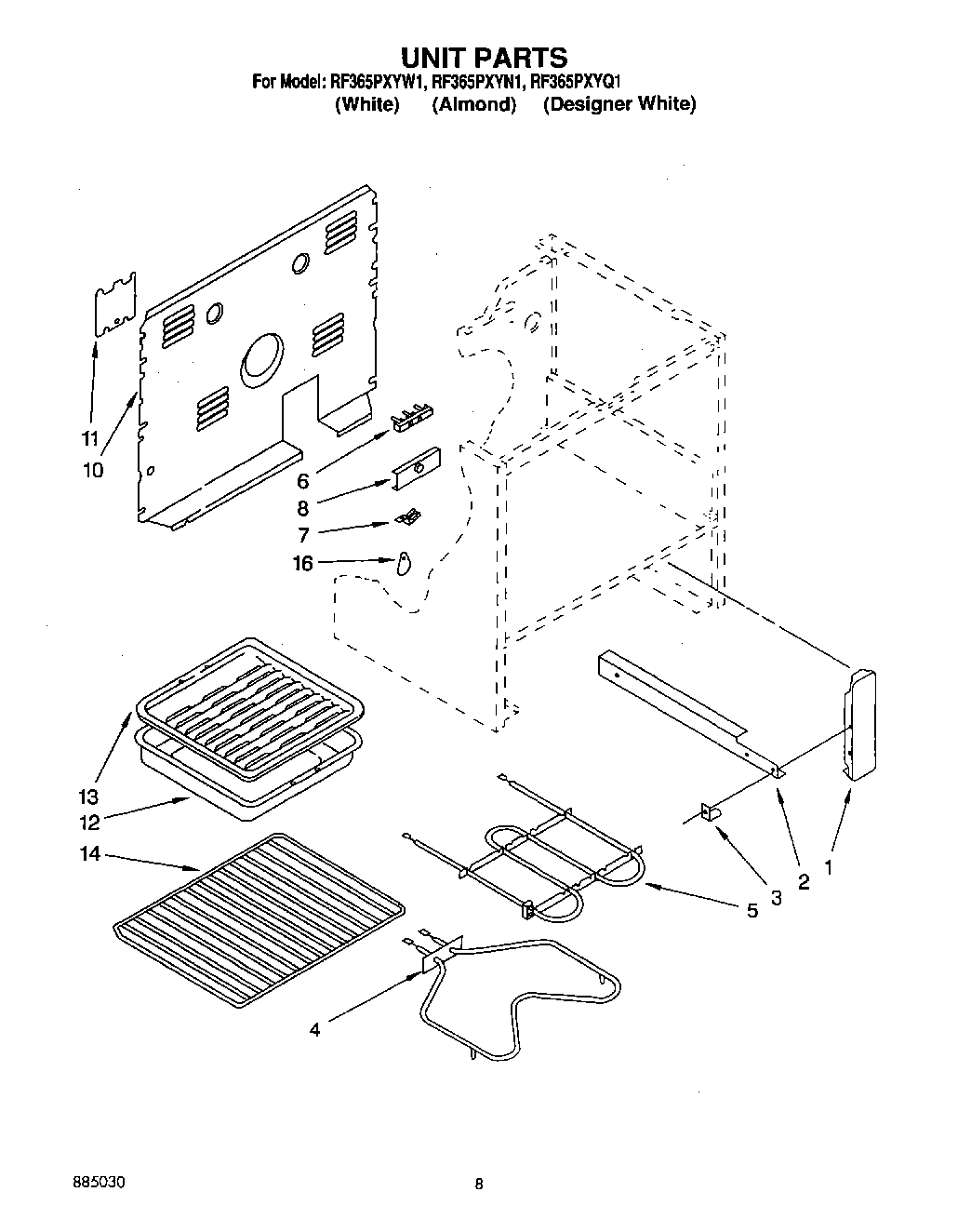

RF365PXYN1 05 – UNIT, OPTIONAL

Products

Position	Product
1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Screw, 10A x 1/2 (2) (Black)
3	Glide, Front (2)
4	ELMNT-BAKE
4	WP312309 Whirlpool Bake Element
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Unit, Broil (208V)
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
16	1
16	Grease
16	Wire (14 Ga. 150 c Blue)
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 150 c Yellow)
16	Wire (12 Ga. 150 c Black)
16	8212471 Whirlpool Oven Paint
16	18 Ga. 80~c Rating (Red)
16	Wire (14 Ga. 200 c Brown)
16	Leveler (Thinner) (2oz.)
16	WPL 311982
16	72113 Whirlpool Touch-Up Paint
16	242831 Whirlpool Oven Wire
16	Wire, 25“ Roll (White 14 GA.)
16	Enamal, Toast (1 Qt. Uncut)
16	Paint, Spray (13 Oz.) (Platinum)
16	Toast
16	Golden Harvest (Uncut)
16	Golden Harvest
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	350956 Whirlpool Spray Assembly
16	Platinum (Uncut)
16	WPL 72112
16	350942 Whirlpool Spray Paint
16	Screw (2)
16	Paint, Spray 13 Oz. (Avocado)
16	paint, spray 13 oz. (coffee)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	285006 Whirlpool Spray
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	WPL 799832
16	511873 Whirlpool Refrigerator Paint
16	350930 Whirlpool White Spray Paint
