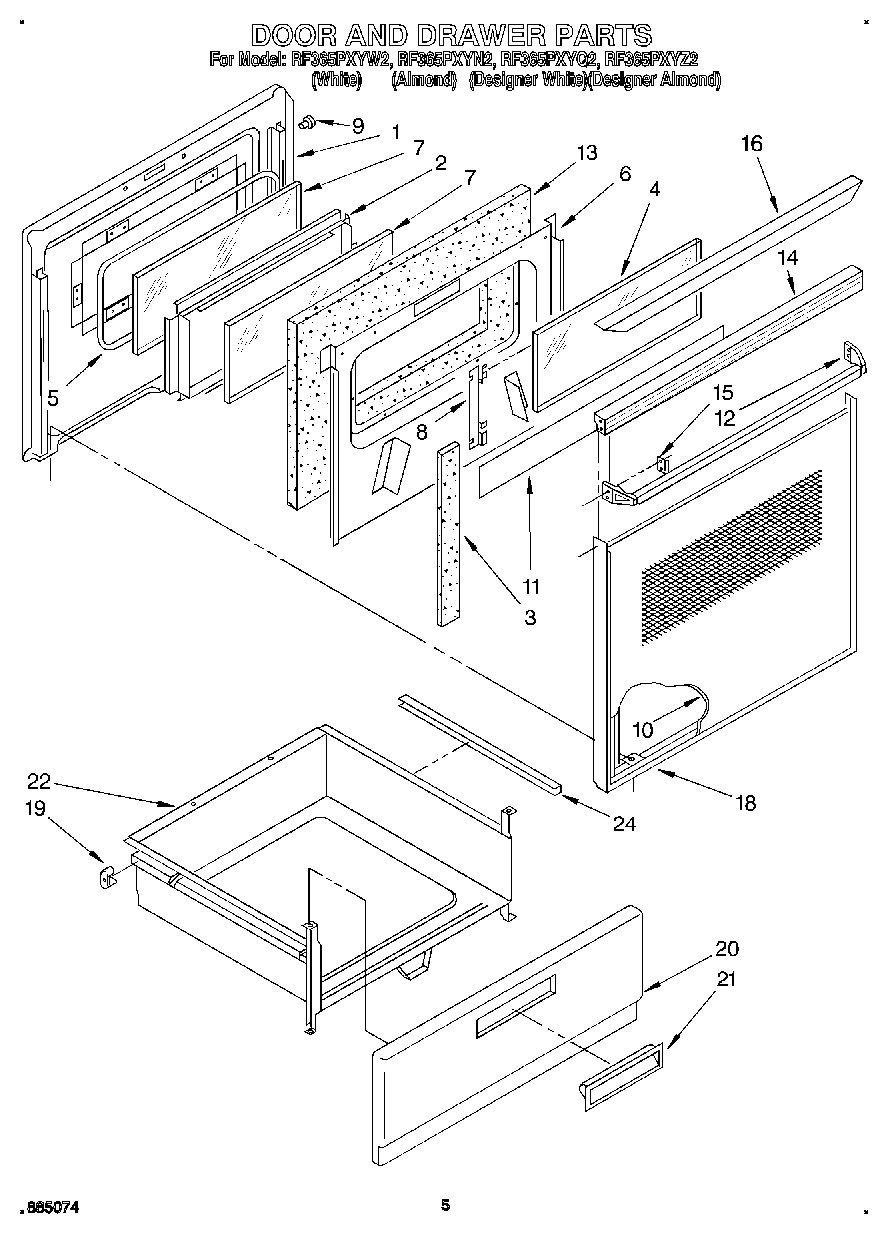

RF365PXYN2 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
8	Screw
9	Bumper (4)
10	Glass, Panel (Black Model)
10	Glass, Panel (Almond)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Oven Door
12	Handle, Door (White)
12	Designer Almond
13	Insulation, Door
14	Designer Almond
14	Top, Door (White Model)
14	Top, Door (Black Model)
14	WP308685 Whirlpool Microwave Screw
15	Clip, Mtg (2)
16	Cap, Top
16	Cap, Top Door (Almond Model)
18	Frame, Door (Almond Model)
18	WP355515 Whirlpool Screw
18	Screw, 10A x 1/2 (2) (Black)
18	Frame, Door
19	Glide, Rear (2)
20	Panel, Drawer (Almond)
20	Panel, Drawer (White)
20	WP488627 Whirlpool Refrigerator Screw
21	Handle, Snap-In (White)
21	Handle, Snap-In (Almond)
22	Drawer, Utility
24	Protector, Drawer (2)
