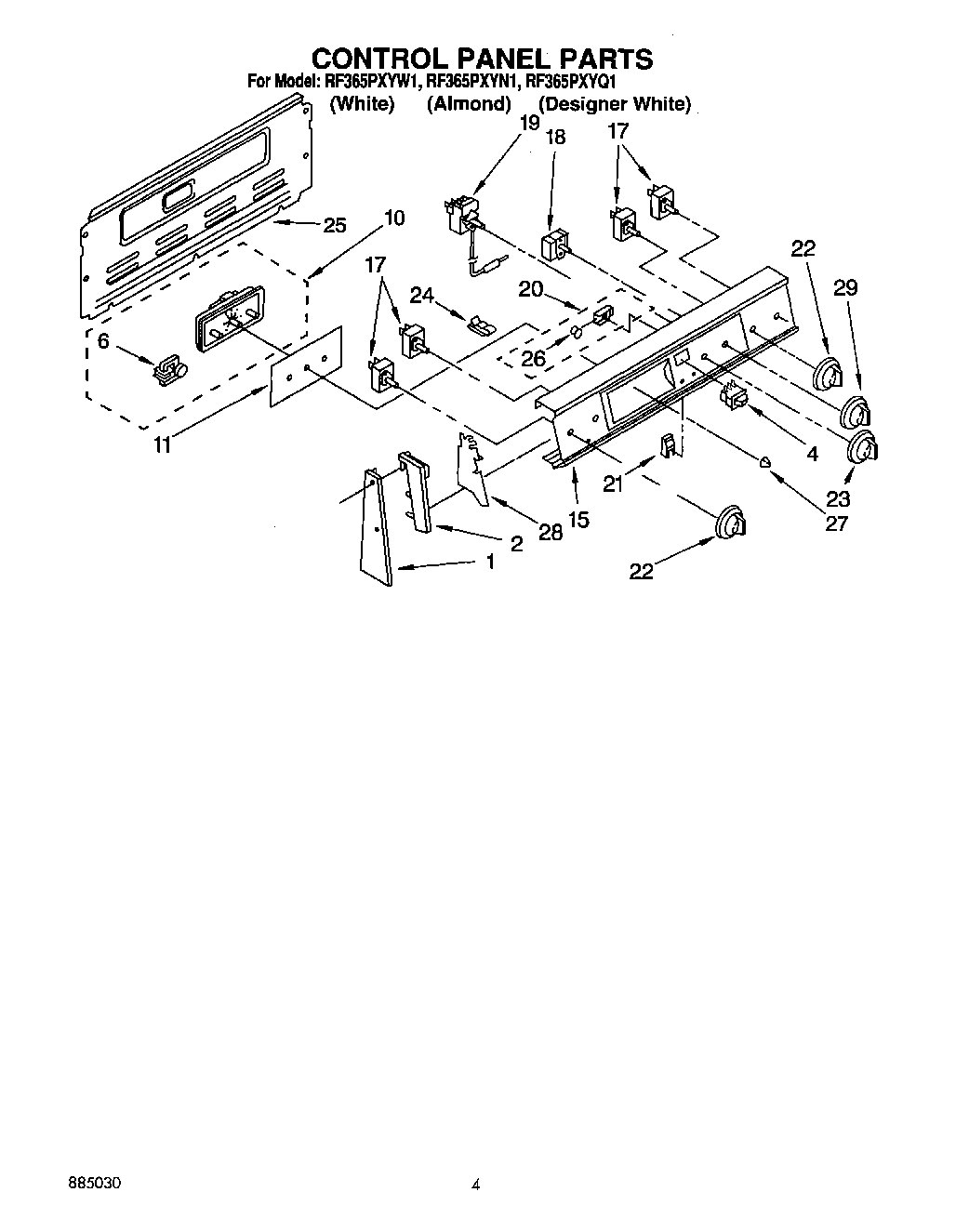

RF365PXYQ1 02 – CONTROL PANEL

Products

Position	Product
	WPL ARI122879A
1	WP3390631 Whirlpool Screw
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap R.H.
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap L.H.
2	Screw,
4	WP4314961 Whirlpool Lite Switch
4	3149360 Whirlpool Light Switch
6	Motor, Timer
10	Timer, Clock (Designer White Mdl (Includes No.6))
10	Timer, Control
11	Glass, Timer
15	Panel, Control (White/Almond)
15	Panel, Control (Designer White Mdl)
15	Washer
17	WP486579 Whirlpool Air Conditioner Screw
17	WP3149400 Whirlpool Oven Infinite Switch
17	WP3149404 Whirlpool Oven Surface Element Switch
18	Switch, Selector
19	WP313808 Whirlpool Screw
19	Thermostat, 0ven Pyro
20	Light, Indicator (250V)
21	Light, Indicator (Includes No. 12) (Surface Unit On)
22	Knob, (4) Infinite Switch (White/Almond/Gold)
22	Knob, (4) Infinite Switch (Designer Mdl)
23	Knob (Temp) (White/Almond)
23	Designer White Mdl
24	Clip, Tube
25	SCREW
25	Harness-Conduit Asm.
26	Lens, Amber
27	WP3169181 Whirlpool Knob
28	WP965173 Whirlpool Dishwasher Screw
28	Shield (2)
29	Knob (Selector)
29	WPL 3183116
