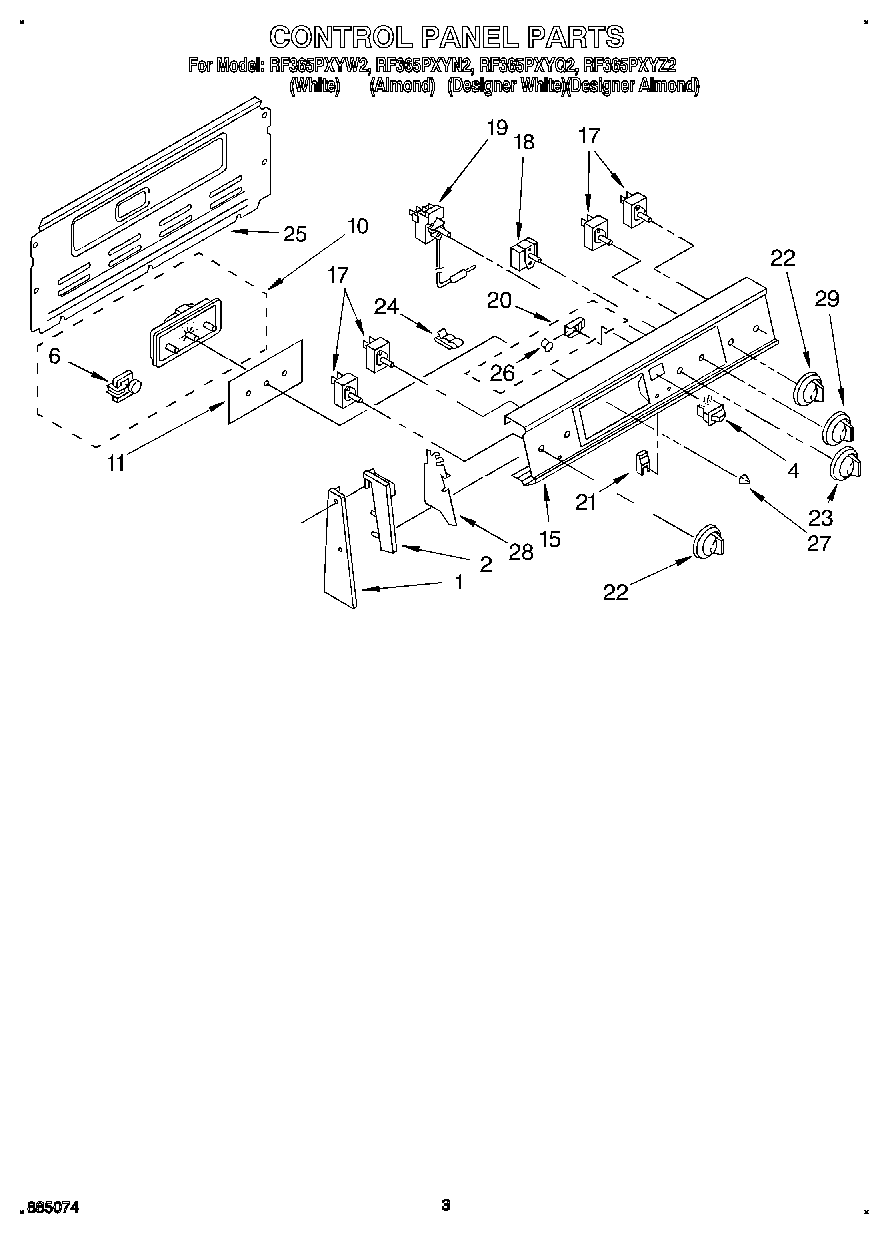

RF365PXYQ2 02 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	End Trim R.H. (Designer Almond)
1	Screw 10-32x7/16``
1	End Trim (LH, Designer Almond)
1	Screw 10-32x1``
2	Screw,
2	Designer Almond
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap R.H.
2	End Cap L.H.
2	Designer Almond
4	3149360 Whirlpool Light Switch
4	Switch, Rocker (Almond)
4	WP4314961 Whirlpool Lite Switch
6	Motor, Timer
10	Timer, Clock (Designer White Mdl (Includes No.6))
10	Designer Almond (Includes No.6)
10	Timer, Control
11	Glass, Timer
15	Panel, Control (Designer White Mdl)
15	Panel, Control (White/Almond)
15	Washer
15	Designer Almond
17	Screw, 8-32 x 3/16 (2)
17	WP3149400 Whirlpool Oven Infinite Switch
17	WP3149404 Whirlpool Oven Surface Element Switch
18	Switch, Selector
19	Thermostat, 0ven Pyro
19	WP313808 Whirlpool Screw
20	Light, Indicator (250V)
21	Light, Indicator (Includes No. 12) (Surface Unit On)
22	Knob, (4) Infinite Switch (White/Almond/Gold)
22	Knob, (4) Infinite Switch (Designer Mdl)
22	Designer Almond
23	Knob (Temp) (White/Almond)
23	Designer Almond
23	Designer White Mdl
24	Clip, Tube
25	SCREW
25	Rear Cover Contr
26	Lens, Amber
27	WP3169181 Whirlpool Knob
27	Designer Almond
28	WP965173 Whirlpool Dishwasher Screw
28	Shield (2)
29	WPL 3183116
29	Knob (Selector)
29	WPL 3183111
