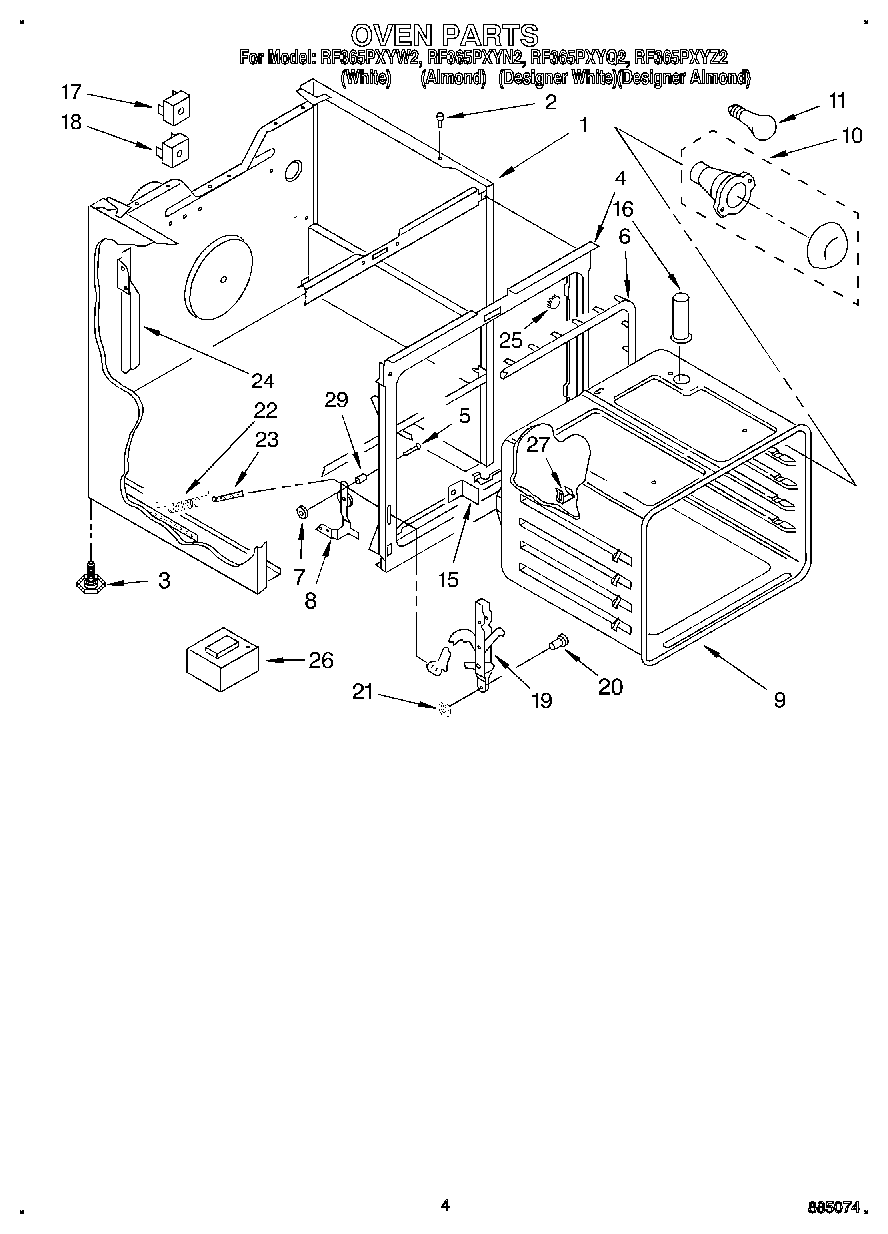

RF365PXYQ2 03 – OVEN

Products

Position	Product
1	Main Chassis (Almond)
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Front Frame
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge, R.H.
8	Hinge, L.H.
9	Oven (30“ Pyro)
9	Screw (Top)
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
15	Bracket, Oven (Mounting)
16	9755804 Whirlpool Oven Vent Tube
16	Screw, 10A x 1/2 (2) (Black)
17	Sw
18	Switch, Bake
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	WP308126 Whirlpool Door Spring
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	SCREW
24	Wire Cover
25	Plug Button
26	340184 Whirlpool Screw
26	Block, Balance
27	98005642 Whirlpool Clip
29	WPL 3169094
29	WPL 3169093
29	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
29	Snubber, Door (2)
