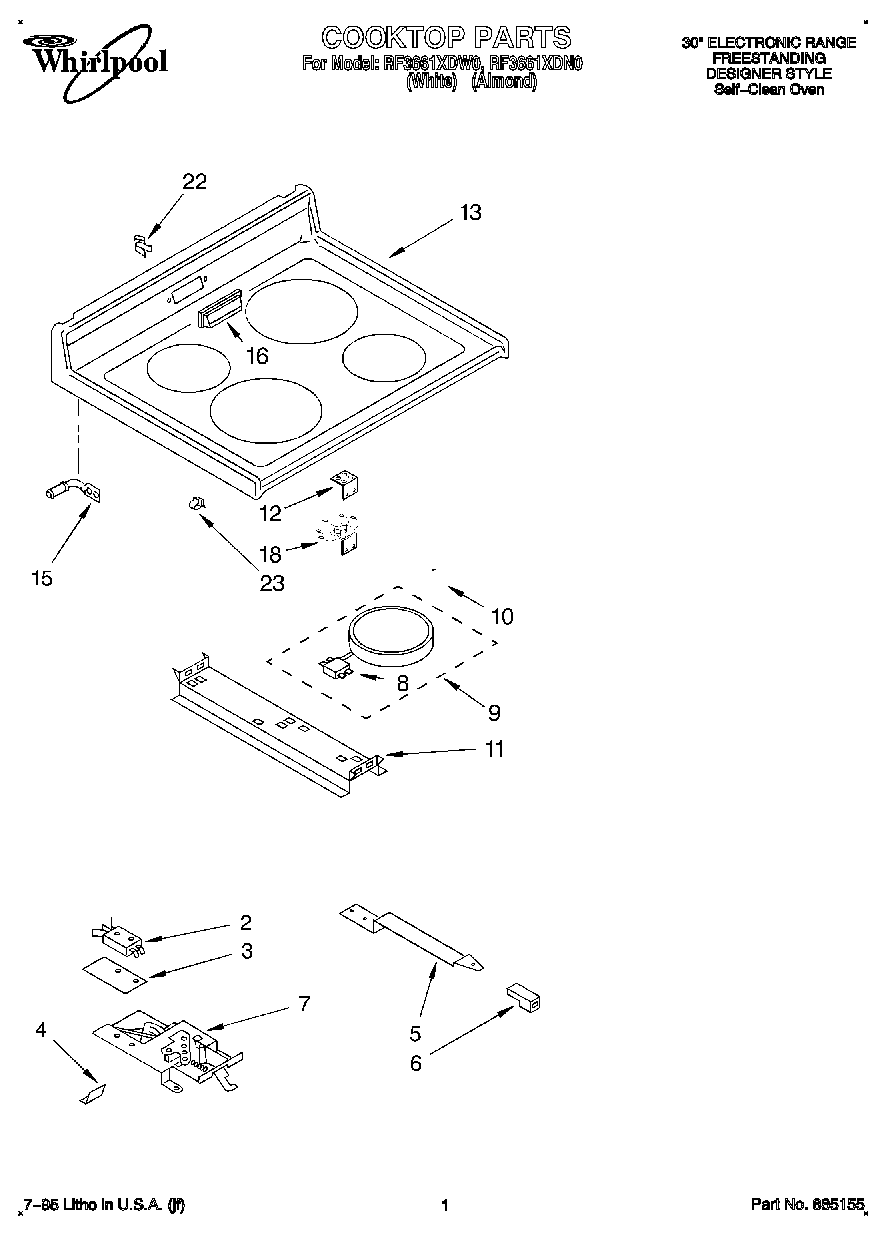

RF3661XDN0 01 – COOKTOP

Products

Position	Product
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Screw
5	Handle, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
7	Latch Mechanism
8	Limiter, Temp. (2100W, LF-RR)
8	Limiter, Temp. (1400W – LR)
8	Limiter, Temp. (1700W, RF-LR)
8	Limiter, Temp. (2400W – LF)
9	Element, Surface (Includes No.1) (2100W, LF-RR)
9	Element, Surface (Includes No. 18) (1400W – LR)
9	Element, Surface (Includes No.1) (1700W, RF-LR)
9	Element, Surface (Includes No. 18) (2400W – LF)
10	WP486754 Whirlpool Compactor Screw
10	Spring, Locator
11	Bracket, (2) Element Support
12	Bracket, Light
13	Cooktop (Designer White)
13	Cooktop (Almond)
15	SCREW
15	Pin, Cooktop (2)
16	cover, vent (almond)
16	Cover, Vent (White)
18	Screw (2)
18	WPL 3169395
22	Clip, Vent Cover
23	Clip
23	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23	WA906B Whirlpool Cooktop Glass Scraper
