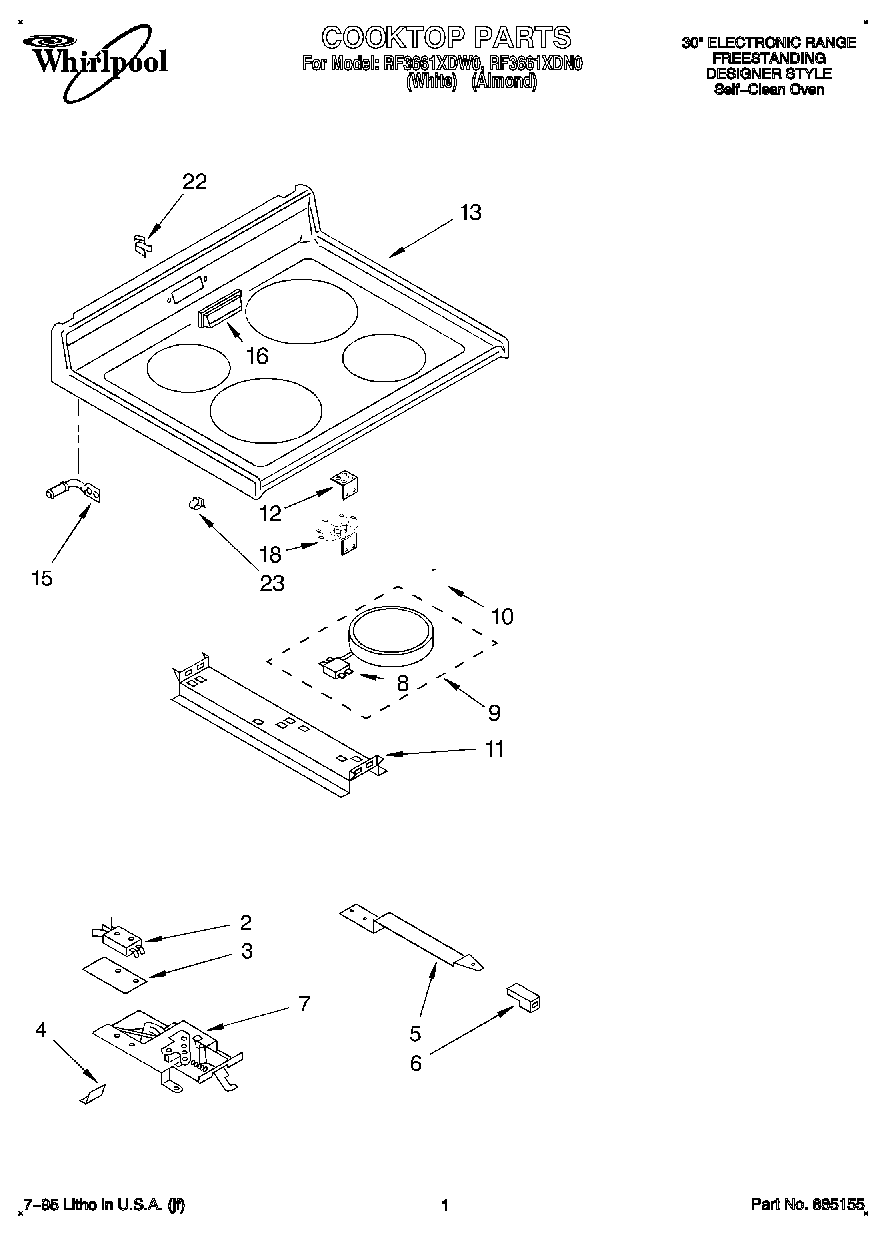

RF3661XDW0 01 – COOKTOP

Products

PositionProduct
2Screw
2Safety Switch
3Insulator, Switch
4Shield, Latch
4Screw
5Screw
5Handle, Latch
6Knob, Latch
6WP486579 Whirlpool Air Conditioner Screw
7Latch Mechanism
8Limiter, Temp. (2100W, LF-RR)
8Limiter, Temp. (1400W – LR)
8Limiter, Temp. (1700W, RF-LR)
8Limiter, Temp. (2400W – LF)
9Element, Surface (Includes No.1) (2100W, LF-RR)
9Element, Surface (Includes No. 18) (1400W – LR)
9Element, Surface (Includes No.1) (1700W, RF-LR)
9Element, Surface (Includes No. 18) (2400W – LF)
10WP486754 Whirlpool Compactor Screw
10Spring, Locator
11Bracket, (2) Element Support
12Bracket, Light
13Cooktop (Designer White)
13Cooktop (Almond)
15SCREW
15Pin, Cooktop (2)
16cover, vent (almond)
16Cover, Vent (White)
18Screw (2)
18WPL 3169395
22Clip, Vent Cover
23Clip
23W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23WA906B Whirlpool Cooktop Glass Scraper
