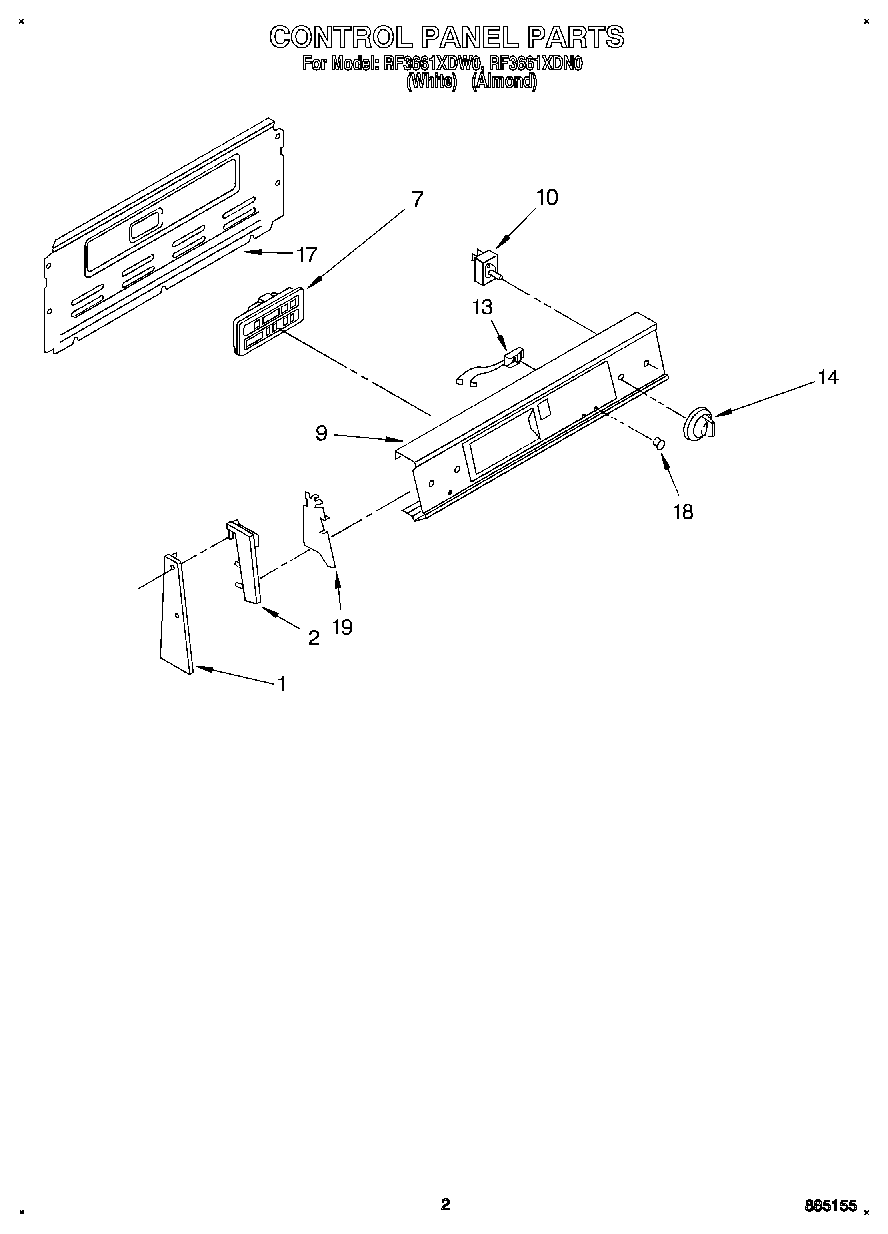

RF3661XDW0 02 – CONTROL PANEL

Products

Position	Product
1	End Trim (LH, Black)
1	End Trim R.H. (Black)
2	End Cap L.H. (Black)
2	End Cap, R.H. (Black)
7	Timer, ERC Control (Black)
9	Panel, Control (Screw, 8-18 x 5/8 (4))
9	Panel, Control (Black)
10	WP3148955 Whirlpool Infinite Switch
10	Screw, 8-32 x 3/16 (2)
10	WP3148952 Whirlpool Oven Infinite Switch
13	Indicator Light (Surface Unit On)
14	WP3196231 Whirlpool Knob
17	SCREW
17	Rear Cover Contr
18	Lens, Amber
19	WP965173 Whirlpool Dishwasher Screw
19	Shield (2)
