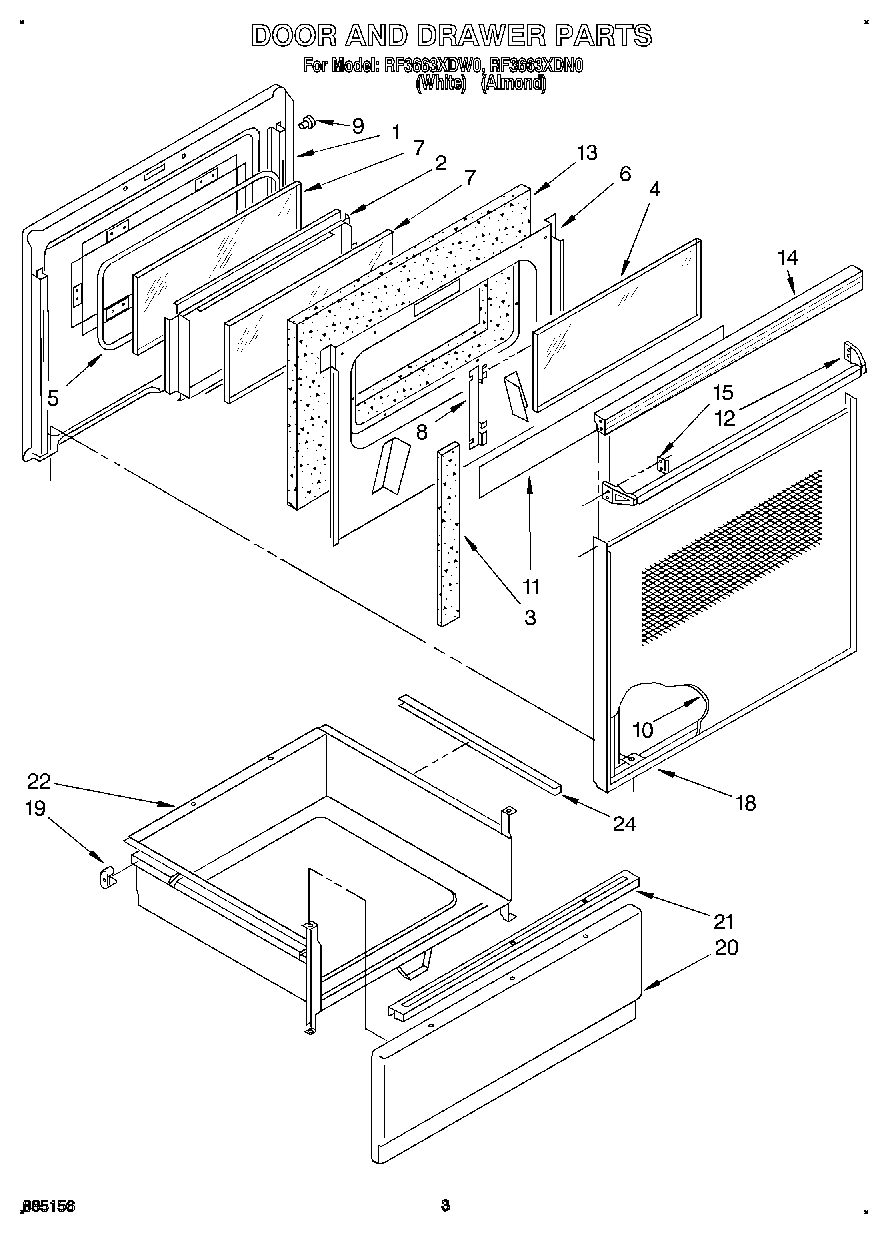

RF3663XDN0 03 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
8	Screw
9	Bumper (4)
10	Glass Panel, Outer (Black)
11	Foil, Door
12	Handle, Door (Black)
12	WP999367 Whirlpool Refrigerator Screw
13	Insulation, Door
14	Top, Door Frame (Black)
15	Clip, Mtg (2)
18	Back Splash (Screw (4) 10AB x 1/2“)
18	Frame, Door (Black)
18	Handle, Door (Screw (4))
19	Glide, Rear (2)
20	Panel Drawer (Almond)
20	Panel Drawer (White)
20	WP488627 Whirlpool Refrigerator Screw
21	Handle, Drawer (Almond)
21	Handle, Drawer (White)
22	Drawer, Utility
24	Protector, Drawer (2)
