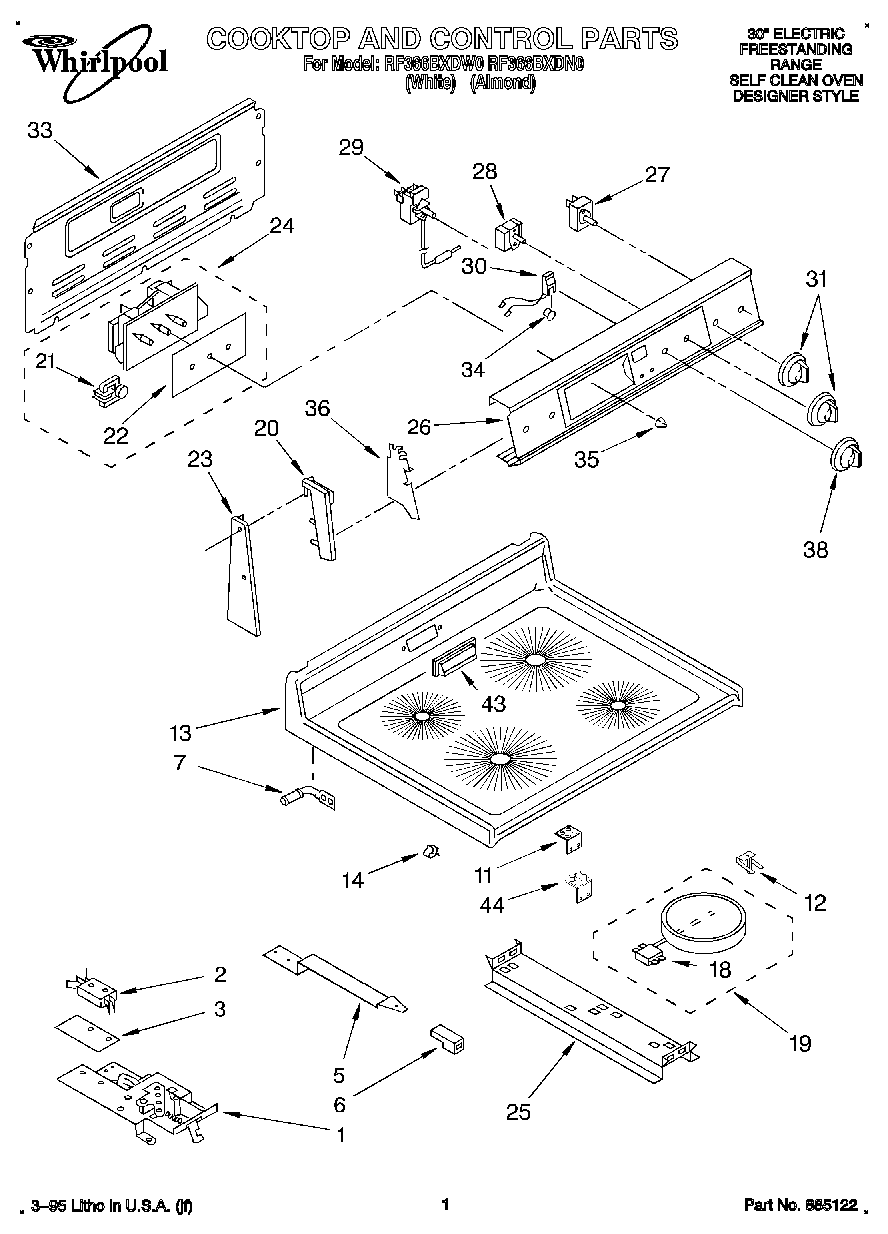

RF366BXDN0 01 – COOKTOP AND CONTROLadmin2025-04-26T12:23:48+00:00RF366BXDN0 01 – COOKTOP AND CONTROL
Products
| Position | Product |
|---|
| 1 | Latch Mechanism |
| 2 | WPL 312717 |
| 2 | Safety Switch |
| 3 | Insulator, Switch |
| 5 | Screw |
| 5 | Handle, Latch |
| 6 | Knob, Latch |
| 6 | WP486579 Whirlpool Air Conditioner Screw |
| 7 | Pin, Cooktop (2) |
| 11 | Bracket, Light |
| 12 | Spring, Locator |
| 12 | WP486754 Whirlpool Compactor Screw |
| 13 | Cooktop (Almond) |
| 13 | WP308685 Whirlpool Microwave Screw |
| 13 | Cooktop (Designer White) |
| 14 | Clip |
| 18 | Limiter, Temperature (Use W/3183648 Element) |
| 18 | Limiter, Temperature (Use W/3183649 Element) |
| 18 | Limiter, Temp. (6`` L.R.) |
| 18 | Limiter Temp. (7`` - RF) |
| 19 | Element, Surface (2100W Right Rear) |
| 19 | WP8185663 Whirlpool Surface Element |
| 19 | Element, Surface (1700W Right Front) |
| 19 | Element, Surface (1400W Left Rear) |
| 20 | End Cap, R.H. (Black) |
| 20 | End Cap L.H. (Black) |
| 21 | Motor, Timer |
| 22 | Glass, Timer |
| 23 | Screw, |
| 23 | End Trim (LH, Black) |
| 23 | End Trim R.H. (Black) |
| 24 | Timer, Control |
| 25 | Bracket, (2) Element Support |
| 25 | Screw (2) |
| 26 | Panel, Control |
| 27 | WP3148955 Whirlpool Infinite Switch |
| 27 | WP3148952 Whirlpool Oven Infinite Switch |
| 28 | Screw, 8-32 x 3/16 (2) |
| 28 | Switch, Selector (5 Position) |
| 29 | Thermostat, 0ven |
| 29 | WP313808 Whirlpool Screw |
| 30 | Light, Indicator (250V) |
| 30 | Indicator Light (Surface Unit On) |
| 31 | WP3196231 Whirlpool Knob |
| 33 | SCREW |
| 33 | Rear Cover Contr |
| 34 | Lens, Amber |
| 35 | WP3169181 Whirlpool Knob |
| 36 | WP965173 Whirlpool Dishwasher Screw |
| 36 | Shield (2) |
| 38 | Knob, Thermostat (Black) |
| 43 | Cover, Vent (White) |
| 43 | Clip, Vent Cover |
| 43 | cover, vent (almond) |
| 44 | WPL 3169395 |
