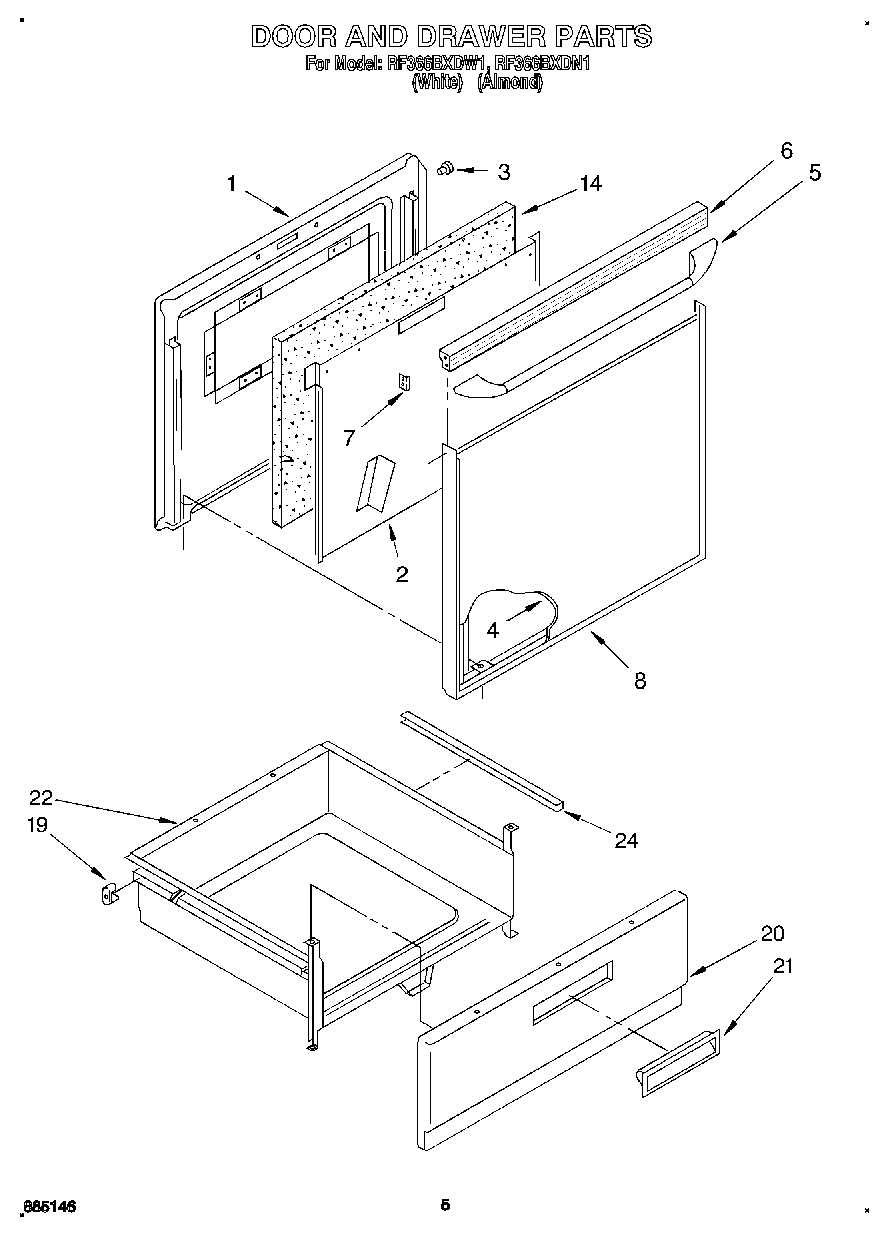

RF366BXDW1 03 – DOOR AND DRAWERadmin2025-04-26T12:23:52+00:00RF366BXDW1 03 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Oven Door |
| 2 | Retainer, Insulation |
| 2 | Screw |
| 3 | Bumper (4) |
| 4 | Panel, Door (Black Glass) |
| 5 | Handle, Door (Black) |
| 6 | Top, Door Frame (Black) |
| 7 | Clip, Mtg (2) |
| 7 | WP999367 Whirlpool Refrigerator Screw |
| 8 | Handle, Door (Screw (4)) |
| 8 | Frame, Door (Black) |
| 8 | Back Splash (Screw (4) 10AB x 1/2``) |
| 14 | Insulation, Door |
| 19 | Glide, Rear (2) |
| 19 | WP308685 Whirlpool Microwave Screw |
| 20 | Panel, Drawer (White) |
| 20 | Panel, Drawer (Almond) |
| 20 | WP488627 Whirlpool Refrigerator Screw |
| 21 | Handle, Snap-In (White) |
| 21 | Handle, Snap-In (Almond) |
| 22 | Drawer, Utility |
| 24 | Protector, Drawer (2) |
