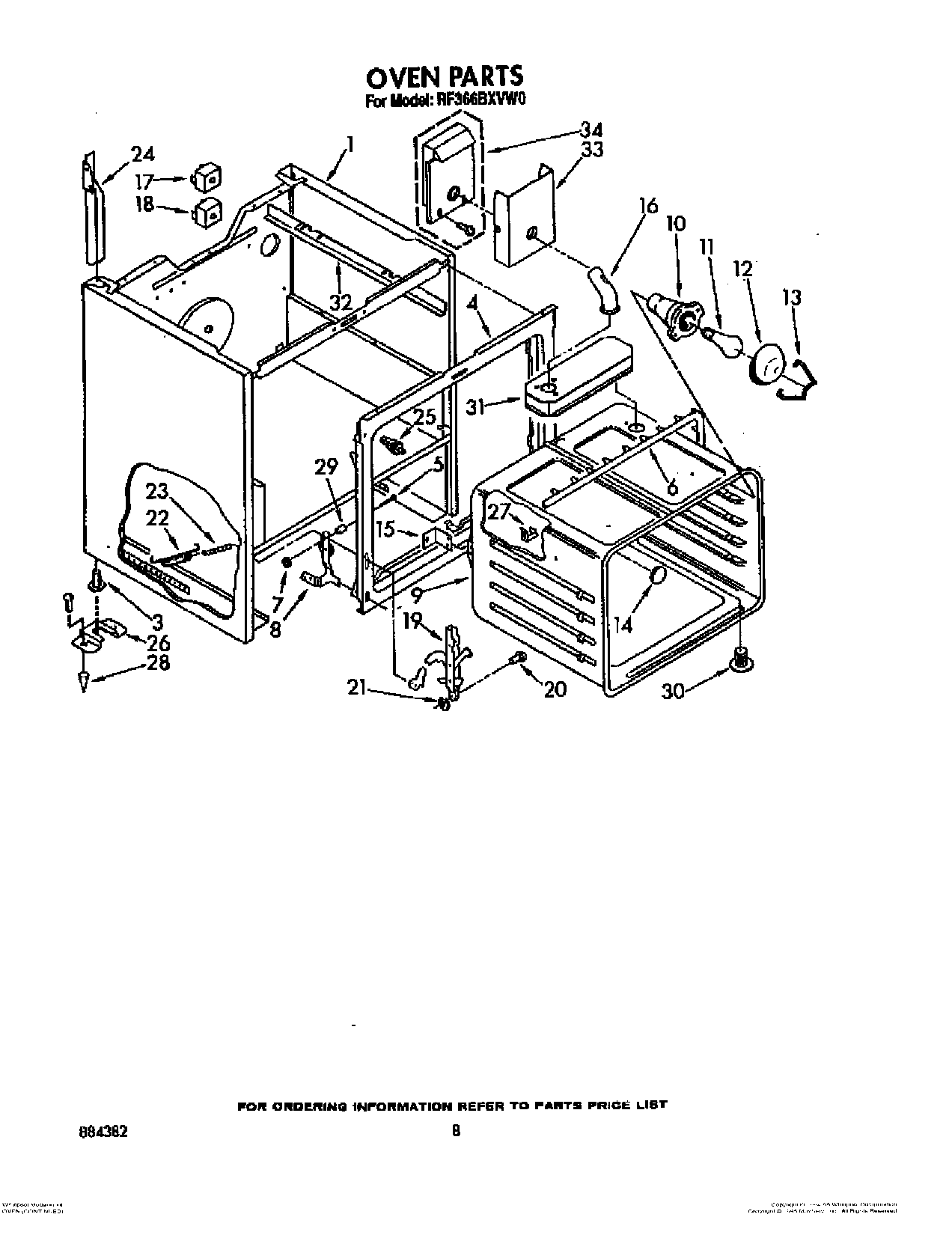

RF366BXVN0 06 – OVEN (CONTINUED)

Products

Position	Product
	Screw (10-12 x .875)
1	Main Chassis (White)
1	Screw
1	Main Chassis (Almond)
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge (R.H.)
8	Hinge (L.H.)
9	Screw (3)
9	Oven (30`` Pyro)
10	Socket, Oven Light
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Plug Button
15	Bracket, Oven (Mounting)
16	Vent, Oven
16	WP308685 Whirlpool Microwave Screw
17	Sw
18	Switch, Bake
18	WPL 314215
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	Wire Cover
24	SCREW
25	Switch, Door
26	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
26	Screw
27	98005642 Whirlpool Clip
28	Anchor, Plastic
29	Snubber, Door (2)
30	Eliminator, Smoke
31	Box, Vent
32	panel, top (screw, 10a x 3/8 (3))
32	Support, Chassis
33	Screw (2)
33	Shield, Vent
34	WP488627 Whirlpool Refrigerator Screw
34	Vent, Box
