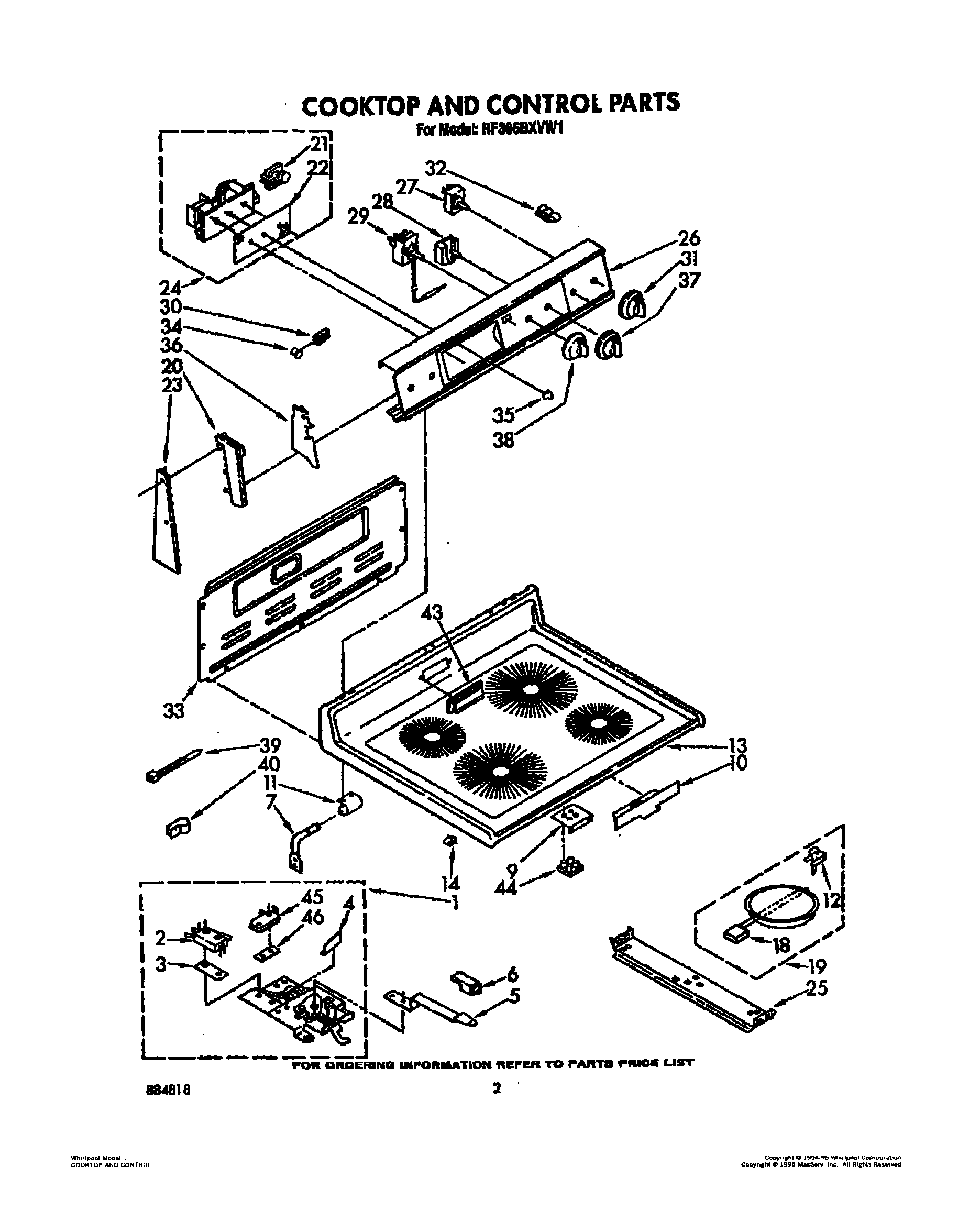

RF366BXVN1 02 – COOKTOP AND CONTROL, LIT/OPTIONAL

RF366BXVN1 02 – COOKTOP AND CONTROL, LIT/OPTIONAL

Written by

in

RF366BXVN1 02 – COOKTOP AND CONTROL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3149507
	WPL LIT3149921
	Instructions, Installation
	WPL LIT3148914
	WPL LIT884818
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Handle, Latch
5	Screw
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
7	Pin, Cooktop (2)
9	Bracket, Light
10	Shield, Probe
11	Bracket, Cooktop (2)
12	Spring, Locator
12	WP486754 Whirlpool Compactor Screw
13	Cooktop (White)
13	cooktop (almond)
14	Clip
18	Limiter, Temp. (250 mm (LF))
18	Limiter, Temp. (180 MM – LR)
18	Limiter, Temp. (200 MM – RF)
18	Limiter Temp. (8“ – RR)
19	Element, Surface (Includes No. 1, No. 3) (200 MM – RF)
19	WP8185663 Whirlpool Surface Element
19	Element, Surface (Includes No. 1, No. 3) (230 MM – RR)
19	Element, Surface (Includes No. 1, No. 3) (180 MM – LR)
20	End Cap L.H.
20	End Cap R.H.
21	Motor, Timer
22	Glass, Timer
23	Screw,
23	Washer
23	End Trim L.H.
24	Timer, Clock (Includes No.6)
25	Bracket, (2) Element Support
26	Screw (4)
26	Washer
27	Adapter, Terminal
27	WP3148955 Whirlpool Infinite Switch
27	WP3148952 Whirlpool Oven Infinite Switch
28	Switch, Selector
29	WP313808 Whirlpool Screw
29	Thermostat, Oven
30	Indicator Light (1)
30	Light, Indicator (Surface Unit (2))
30	Light, Indicator (250V)
31	WP3149983 Whirlpool Knob
32	Clip, Tube
33	SCREW
33	Harness-Conduit Asm.
34	Lens, Amber
35	WP3169181 Whirlpool Knob
35	Spring (3)
36	WP965173 Whirlpool Dishwasher Screw
36	Shield (2)
37	WP688805 Whirlpool Spring Clip
37	Knob, Selector
38	Knob, Oven Temp.
39	Cable Tie
40	WP308605 Whirlpool Refrigerator Clamp
40	Screw (2)
41	WPL 3149270
43	cover, vent (almond)
43	Clip, Vent Cover
43	Cover, Vent (White)
44	Light, Indicator
45	Switch, Lock
46	WPL 3147864
46	Screw (2)
