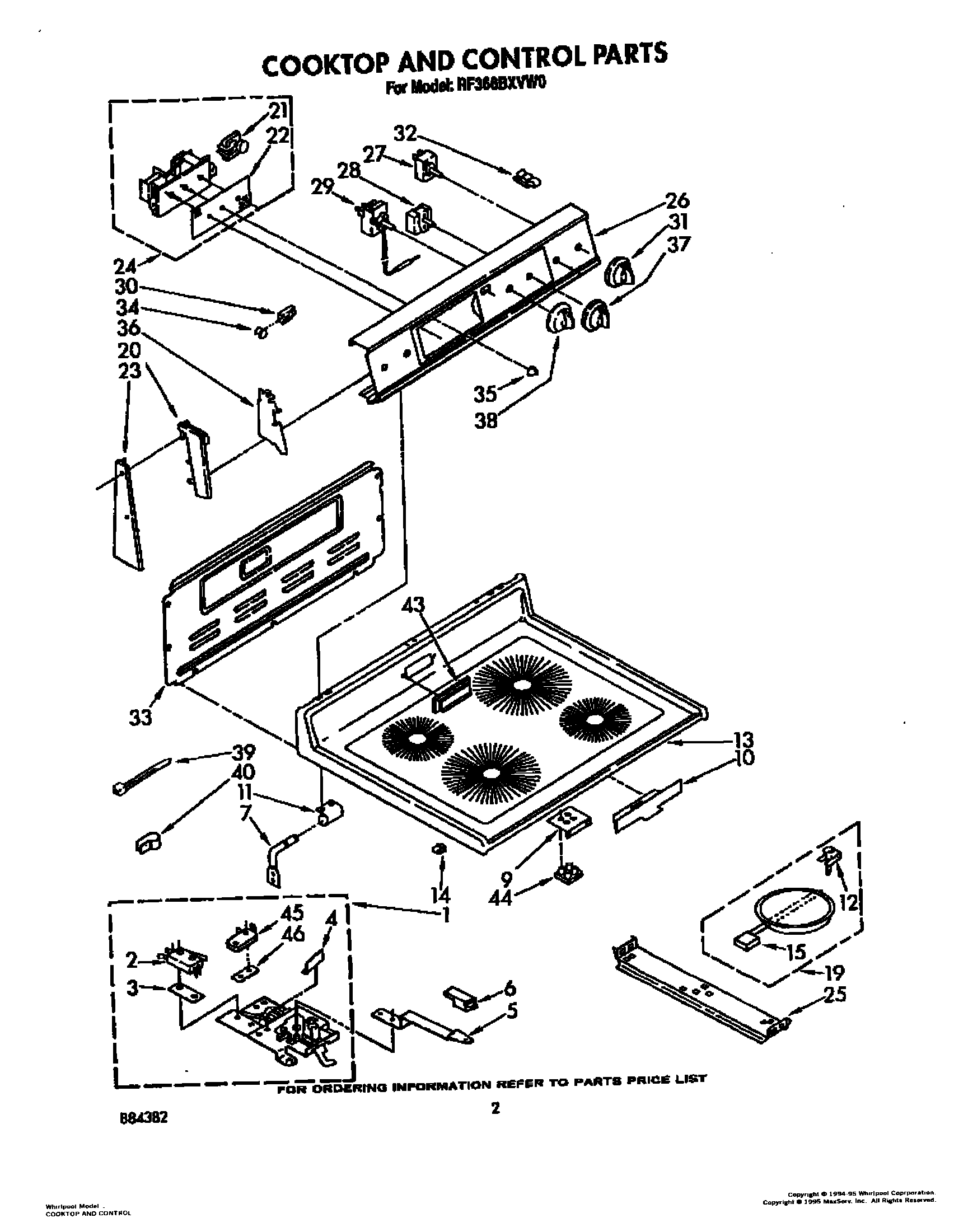

RF366BXVW0 02 – COOKTOP AND CONTROL, LIT/OPTIONAL

RF366BXVW0 02 – COOKTOP AND CONTROL, LIT/OPTIONAL

Written by

in

RF366BXVW0 02 – COOKTOP AND CONTROL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3148614
	WPL LIT3148547
	WPL LIT3149507
	WPL LIT3148914
	WPL LIT884382
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Screw
5	Handle, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
7	Pin, Cooktop (2)
9	Bracket, Light
10	Shield, Probe
11	Bracket, Cooktop (2)
12	Spring, Locator
12	WP486754 Whirlpool Compactor Screw
13	cooktop (almond)
13	Cooktop (White)
14	Clip
15	Limiter, Temp. (180 MM – LR)
15	Limiter, Temp. (250 mm (LF))
15	Limiter, Temp. (200 MM – RF)
15	Limiter Temp. (8“ – RR)
19	Element, Surface (Includes No. 1, No. 3) (230 MM – RR)
19	Element, Surface (Includes No. 1, No. 3) (180 MM – LR)
19	Element, Surface (Includes No. 1, No. 3) (200 MM – RF)
19	WP8185663 Whirlpool Surface Element
20	End Cap R.H.
20	End Cap L.H.
21	Motor, Timer
22	Glass, Timer
23	Screw,
23	Washer
23	End Trim L.H.
24	Timer, Clock (Includes No.6)
25	Bracket, (2) Element Support
26	Washer
26	Screw (4)
27	WP3148952 Whirlpool Oven Infinite Switch
27	WP3148955 Whirlpool Infinite Switch
28	Switch, Selector (5 Position)
28	Adapter, Terminal
29	WP313808 Whirlpool Screw
29	Thermostat, Oven
30	Light, Indicator (Surface Unit (2))
30	Light, Indicator (250V)
30	Indicator Light (1)
31	Knob, Control (4)
32	Clip, Tube
33	Harness-Conduit Asm.
33	SCREW
34	Lens, Amber
35	WP3169181 Whirlpool Knob
35	Spring (3)
36	WP965173 Whirlpool Dishwasher Screw
36	Shield (2)
37	WP688805 Whirlpool Spring Clip
37	KNOB, CONTROL
38	Knob, Control (2)
39	Cable Tie
40	Screw (2)
40	WP308605 Whirlpool Refrigerator Clamp
43	cover, vent (almond)
43	Cover, Vent (White)
43	Clip, Vent Cover
44	Light, Indicator
45	Switch, Lock
46	WPL 3147864
46	Screw (2)
