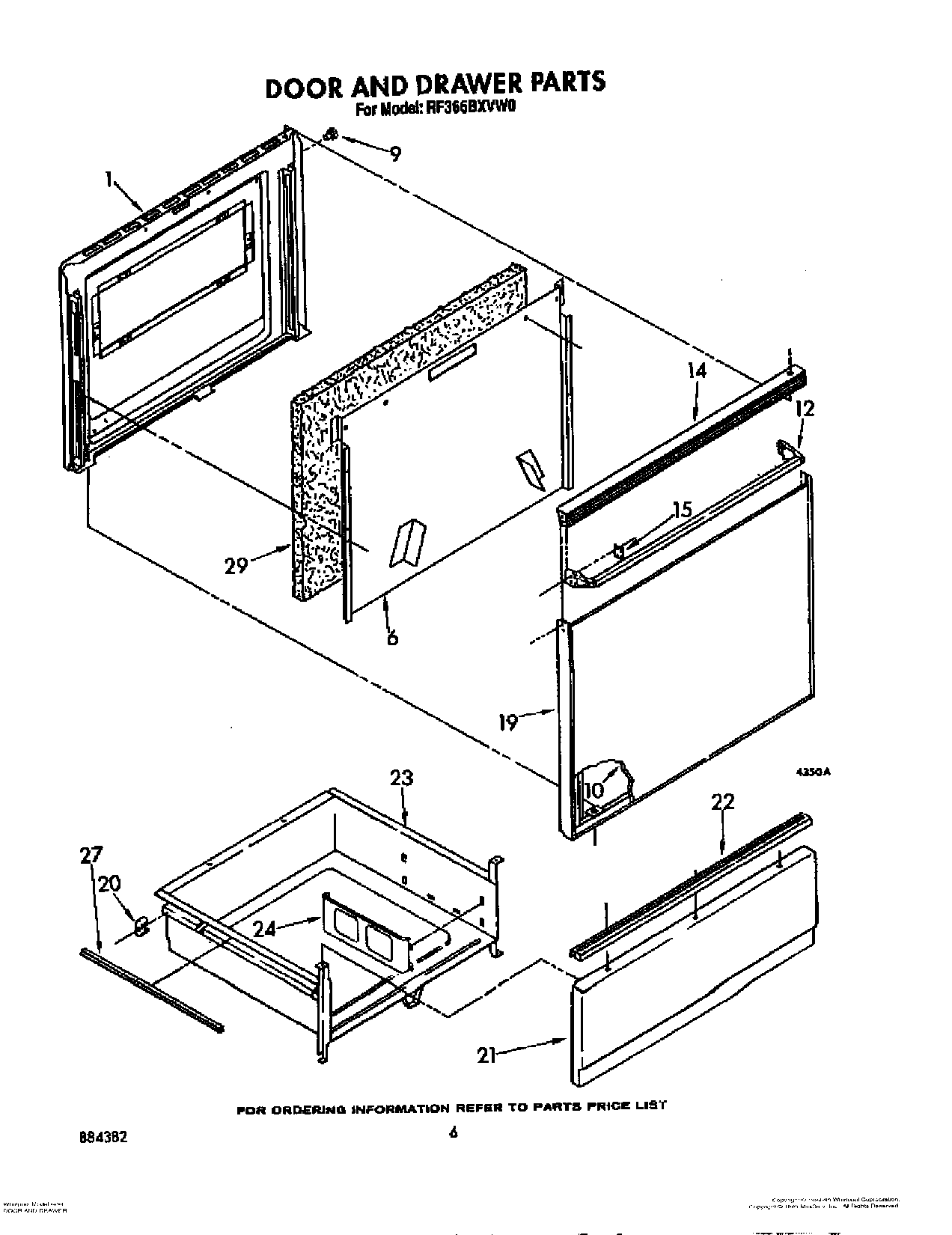

RF366BXVW0 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
1	Back Splash (Screw (4) 10AB x 1/2“)
6	Retainer, Insulation
6	Screw
9	Bumper (4)
10	Panel, Door (Black Glass)
12	Handle, Oven Door
12	WP355515 Whirlpool Screw
14	Top, Door (Black Model)
15	Clip, Mtg (2)
19	Frame, Door
20	Screw, 10A x 1/2 (2) (Black)
20	Glide, Rear (2)
21	Panel Drawer (White)
21	Panel, Drawer (Almond)
21	WP488787 Whirlpool Refrigerator Screw
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
23	Drawer, Utility
24	Rack, Literature
27	Protector, Drawer (2)
29	Insulation, Door
